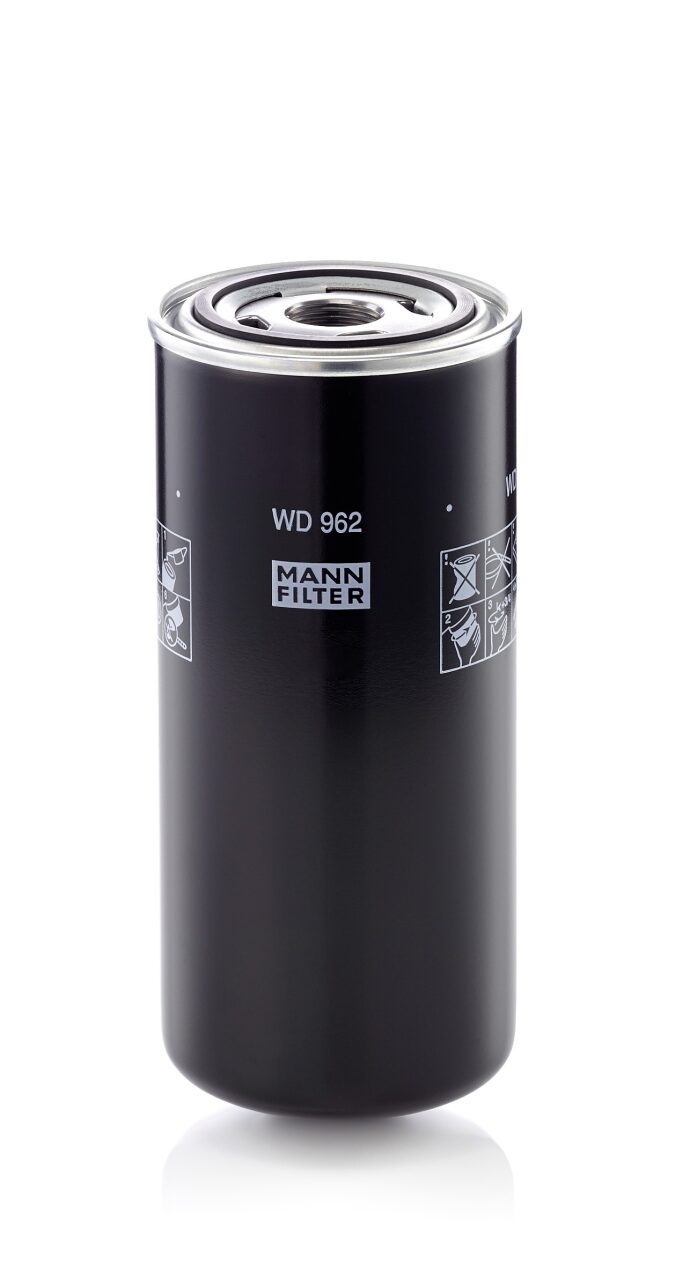

Oil Filter Element
WD 962
6750659206
About this item
Nominal Flow Rate: 40-85 L/min
Filter fineness with 99% separation efficiency: 50
Operating Pressure: 26 Bar
Product highlights and benefits
-
Availabe with a variety of filter media: cellulose, mixed fiber, fully synthetic or glass fiber media
-
High quality filter media for long lifetime
-
Efficient separation with minimal pressure drops
-
Improved flow geometry
-
Optional non return valve and bypass valve
| Data | Value |
|---|---|
| Nominal flow rate oil (min) (l/min) | 40 |
| Nominal flow rate oil (max) (l/min) | 85 |
| Operating pressure | 26 Bar |
| Operating pressure (min) (bar) | 0 |
| Operating pressure (max) (bar) | 25 |
| Maximum flow rate | 85 l/min |
| Filter fineness with 50% separation efficiency (µm) | 20 |
| Filter media material OE | 6 I16 - 1712600 |
| Product height | 214.5 mm |
| Gross weight single pack | 0.95 kg |
| Net weight single pack | 0.95 kg |
| Outer diameter | 93 mm |
d1
1-12UNF mm
d2
62 mm
d3
71 mm
d4
96 mm
d5
93 mm
h
212 mm
