Fuel filters for passenger cars

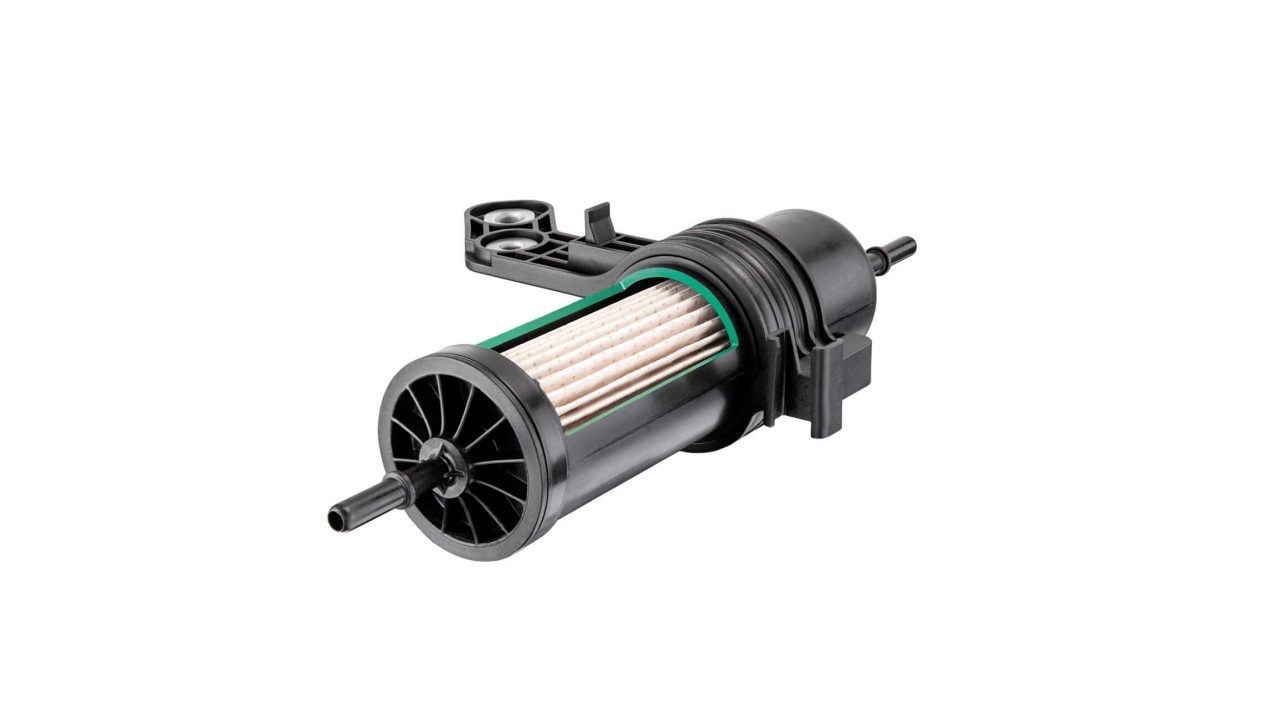

Dirt particles and water droplets have a negative effect on components of the injection system. This is especially true for modern common rail systems, which require high demands on fuel quality. Fuel filters from MANN+HUMMEL, with their excellent particle filtration and water separation, enable worldwide use in passenger cars, even in regions with poor fuel quality. A consistently high water separation performance ensures reliable protection over the entire service life. Fuel filters from MANN+HUMMEL are available as spin-on fuel filters as well as filter modules. MANN+HUMMEL also offers economical and high-flow inline filters.
| Technical features | Fuel filters |
|---|---|
| Volume flow range | Up to 260 l/h |
| Water separation | > 99 % |
| Initial filtration efficiency | Up to 99.7 % at 4 µm |
| Service interval | Up to 80.000 km |
| Operating temperature | -40 °C – 120 °C |
Product benefits
- High efficient MULTIGRADE filter media
- Unique three-stage water separation
- Fast, easy and clean service

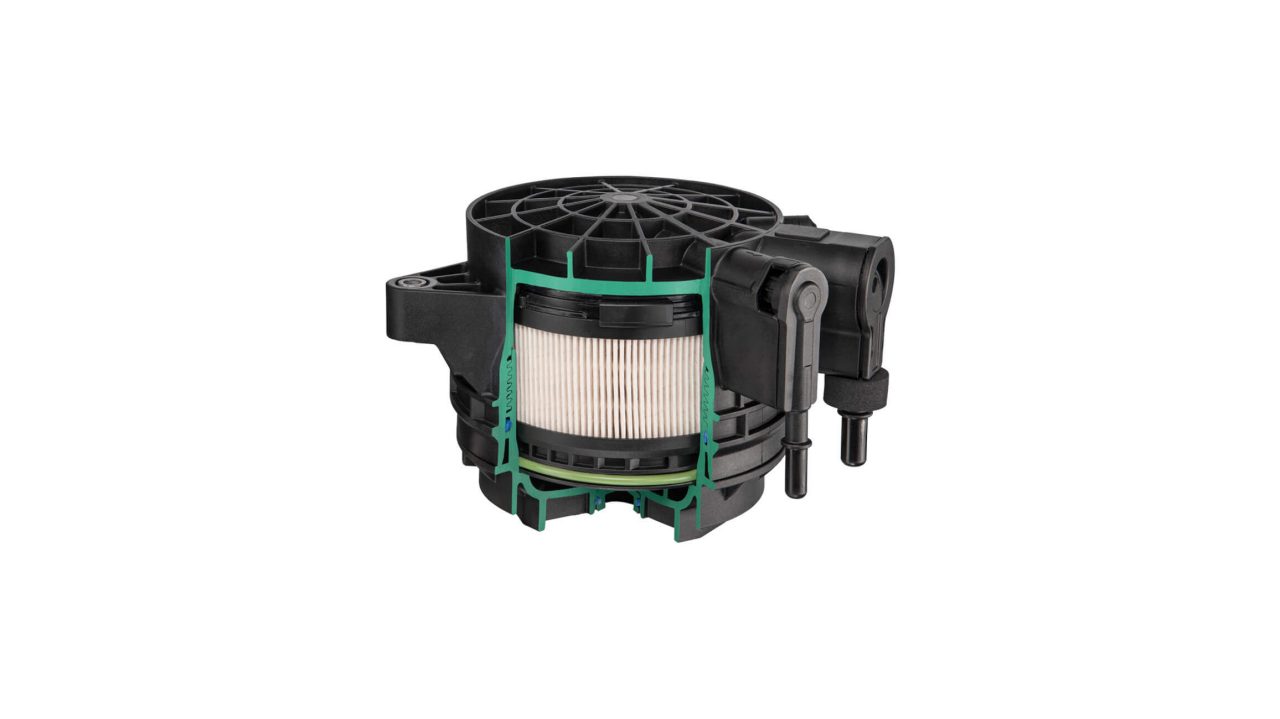

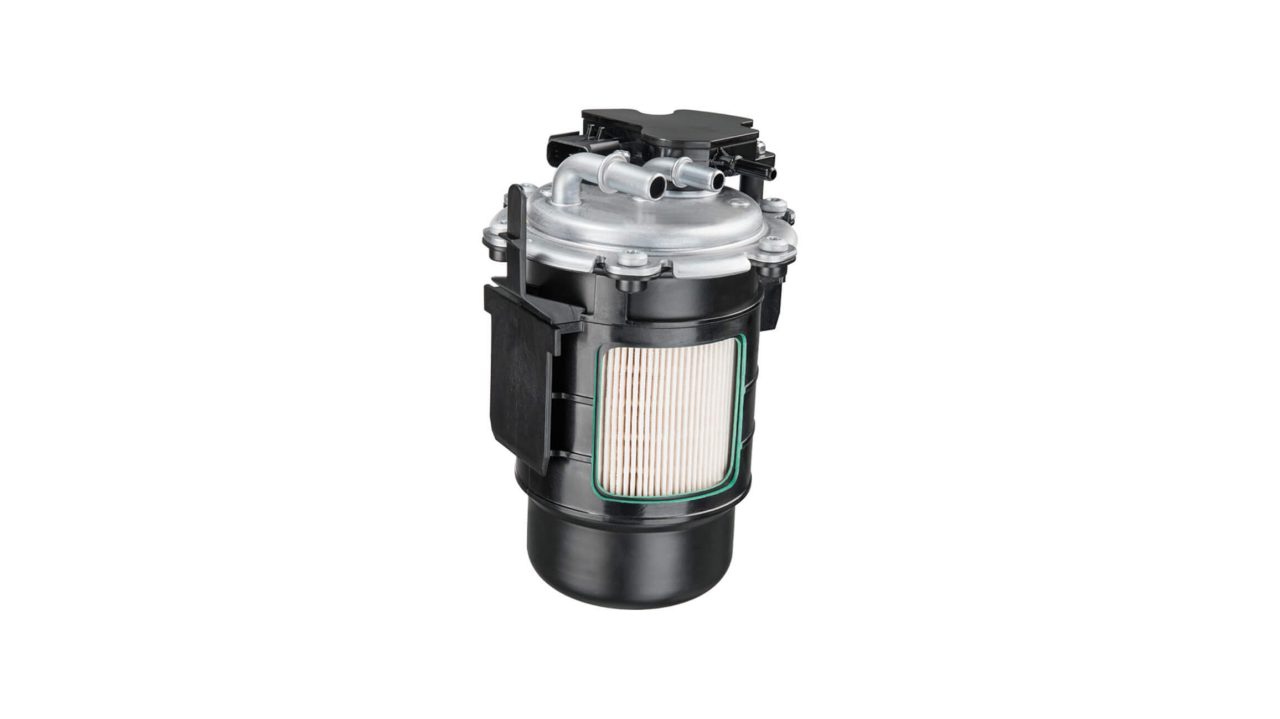

Fuel filter module
- Integration of various functions to fulfill individual customer demands
- Integrated heating for reliable engine operation at low temperatures

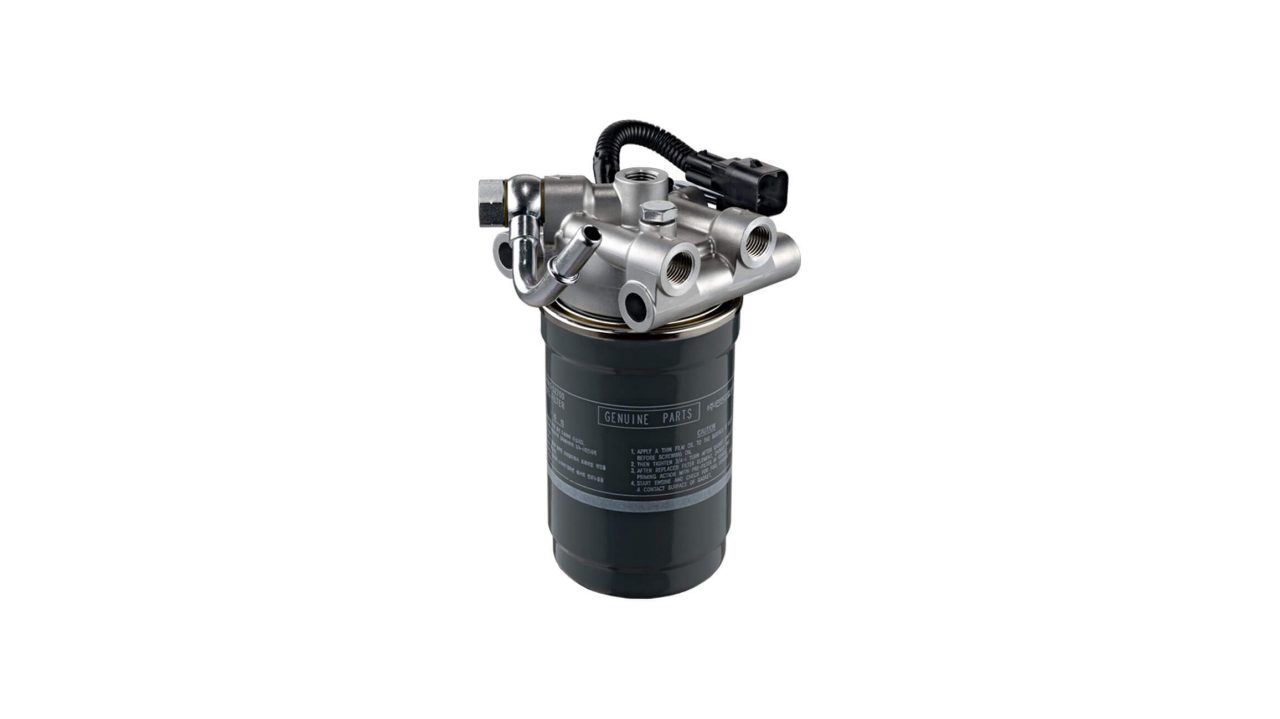

Spin-on fuel filter
- Standardized design
- Quickly available worldwide
- High pulsation resistance and pressure stability
Powerful details

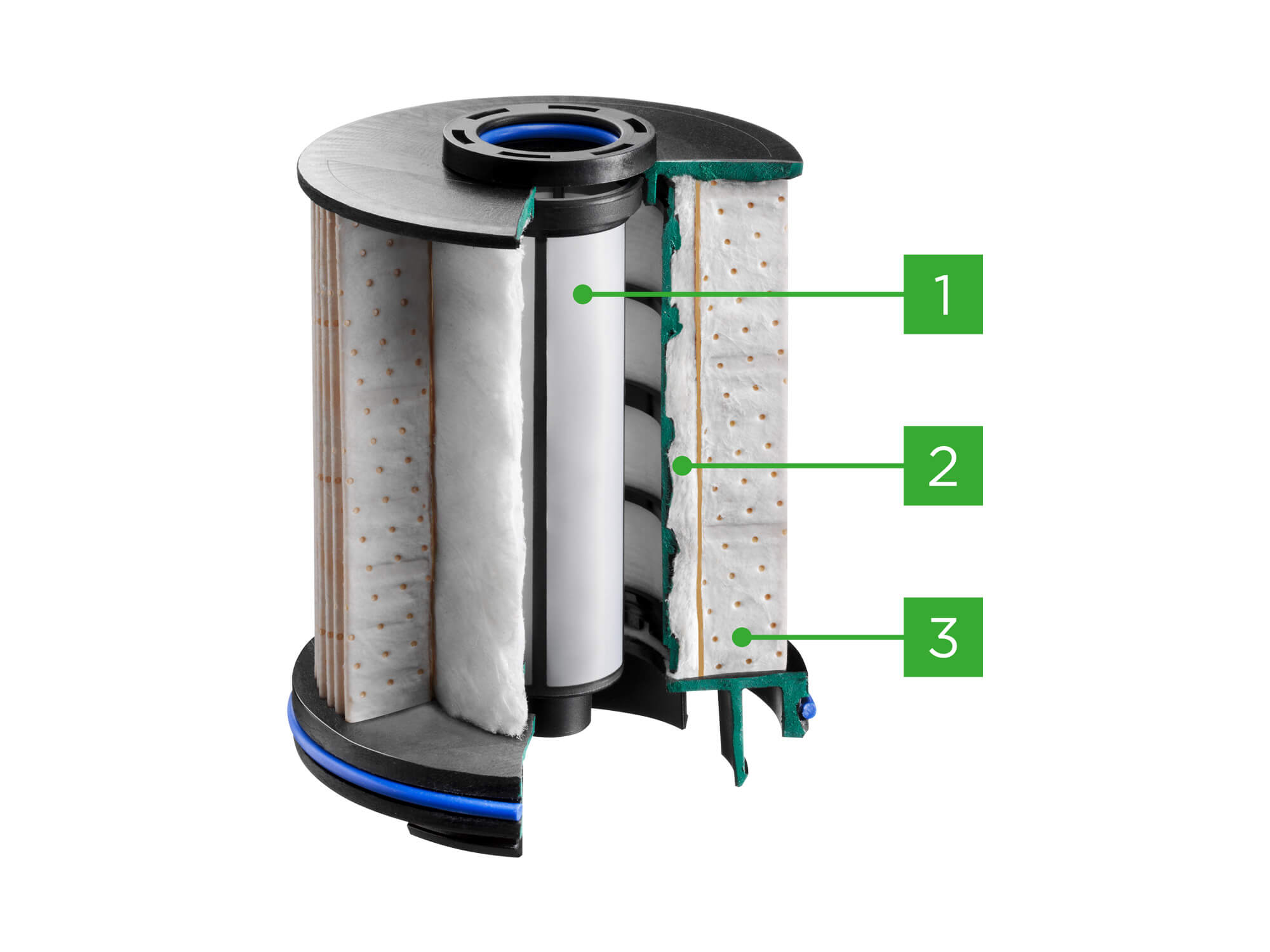

Reach the target in three stages with the three-stage water separation from MANN+HUMMEL
1 Separation of water
2 Coalescence of water droplets
3 Separation of particles
