Transmission oil filters for passenger cars
Dirt particles in the oil cause wear and damage to passenger car transmissions. Suction and pressure-side transmission oil filters from MANN+HUMMEL ensure excellent oil cleanliness thanks to highly efficient filter media and reliably protect transmissions. The design as a flat filter element for suction-side filters offers a large filter surface for high dust capacity and low differential pressure. Transmission oil filters on the pressure side consist of a plastic housing with integrated bypass valve and a filter element. The transmission oil filters are even suitable for limited installation spaces.
| Technical features | Suction-side transmission oil filter | Pressure-side transmission oil filter | |
|---|---|---|---|
| Volume flow range | Up to 70 l/min | Up to 70 l/min |
|
| Separation efficiency | Beta 22 µm(c) ≥ 200 (to ISO 16 889) | Beta 5 µm(c) >= 200 (to ISO 16 889) | |
| Service interval | Lifetime application | Lifetime application | |
| Operating temperature | 40 °C to +150 °C | 40 °C to +150 °C |
|
| Pressure drop | < 0,15 bar @ 24 mm²/s | < 0,5 bar @ 24 mm²/s |
Product benefits
- High efficient filter media assures best oil cleanliness
- Optimal use of installation space
- Support grid for good pleat stability and low differential pressure
- Proven pleating technology offers a large filter area, assuring high dust holding capacity and low differential pressure

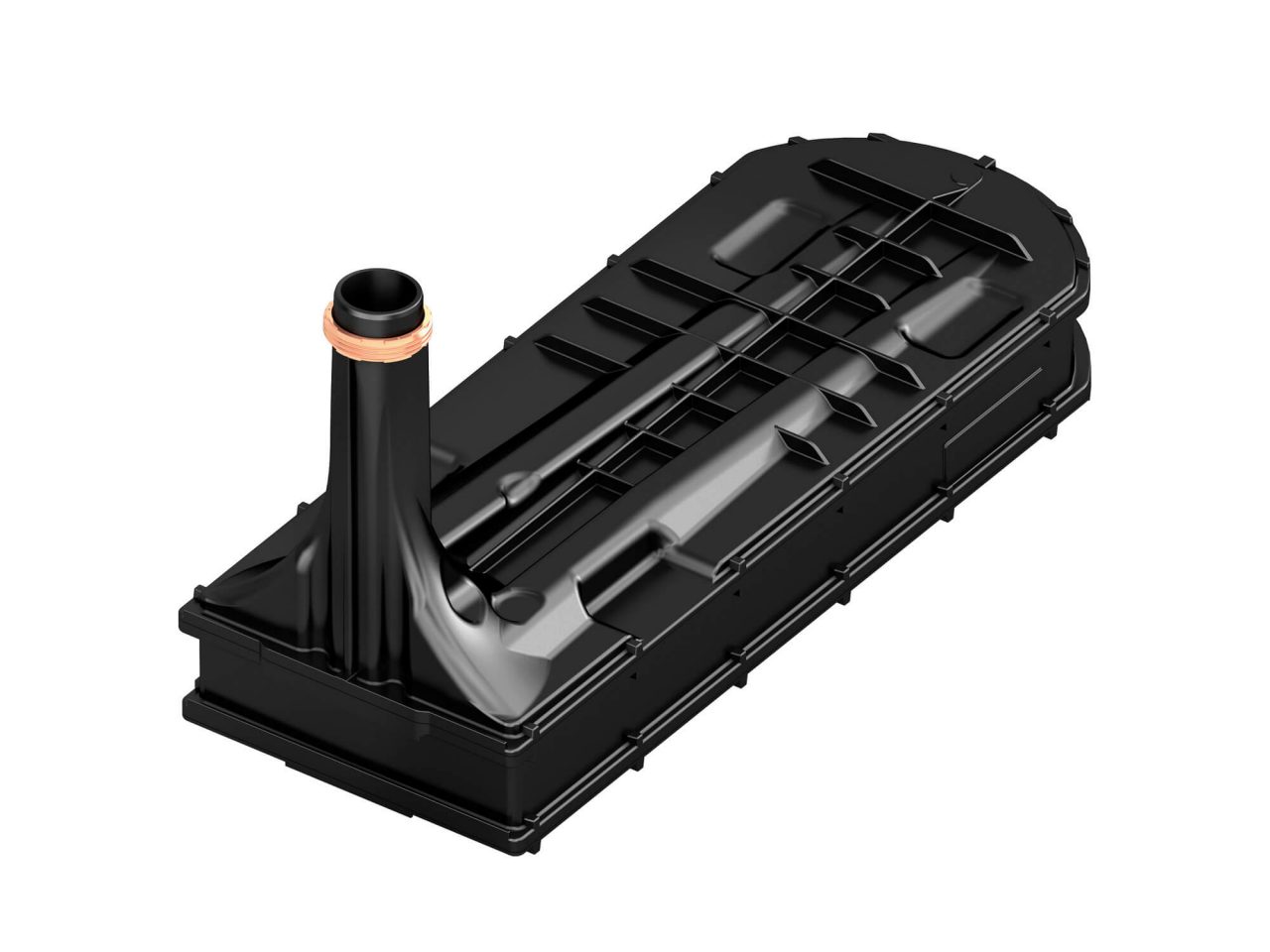

Suction-side transmission oil filters
- Injection moulded pleat pack as part of the filter housing for optimal use of installation space
- Mesh-protected bypass valve assures a clean oil flow in extreme conditions

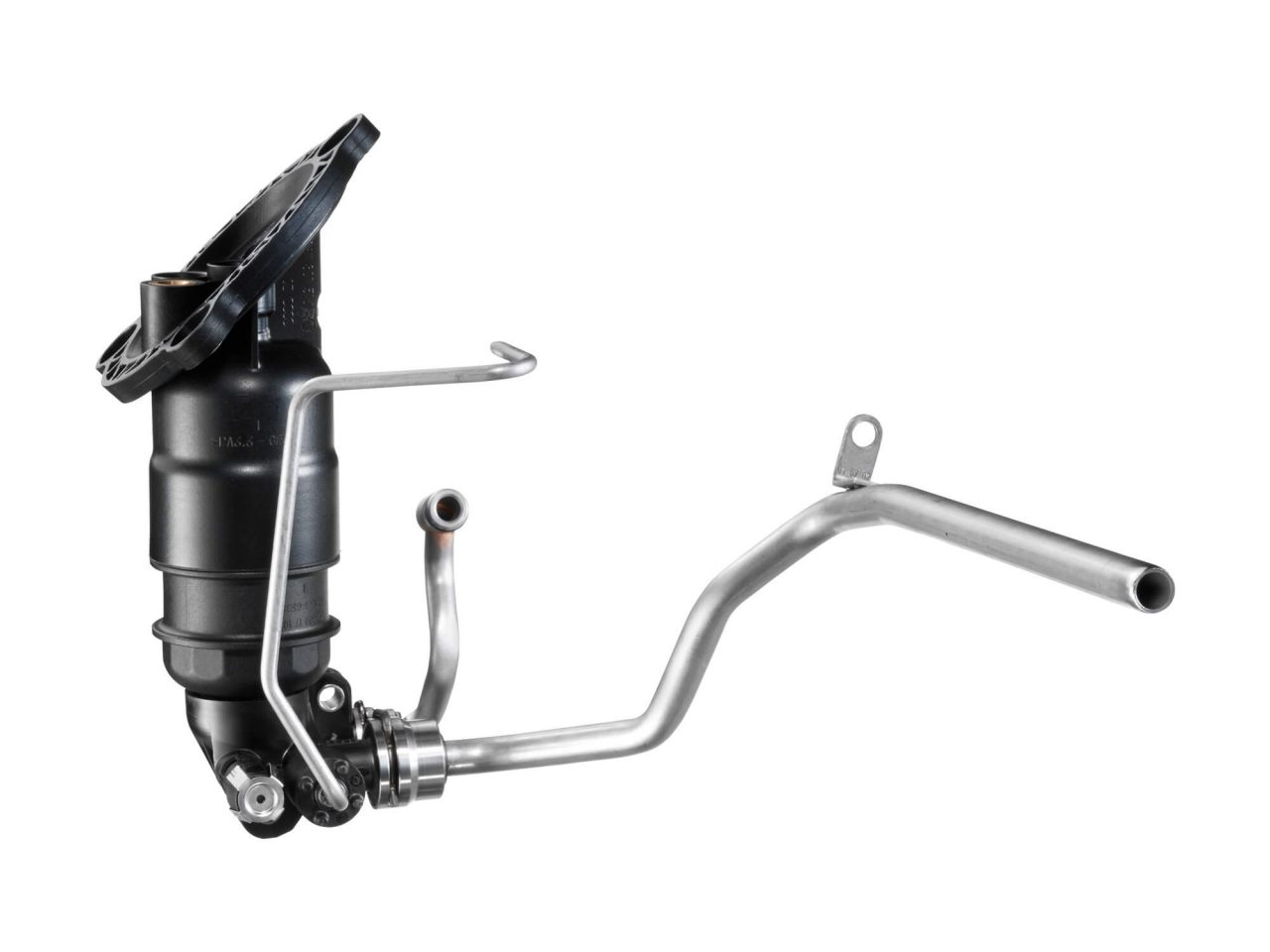

Pressure-side transmission oil filters
- Easy mounting
- Integrated bypass valve ensures oil flow even in extreme conditions
Further information

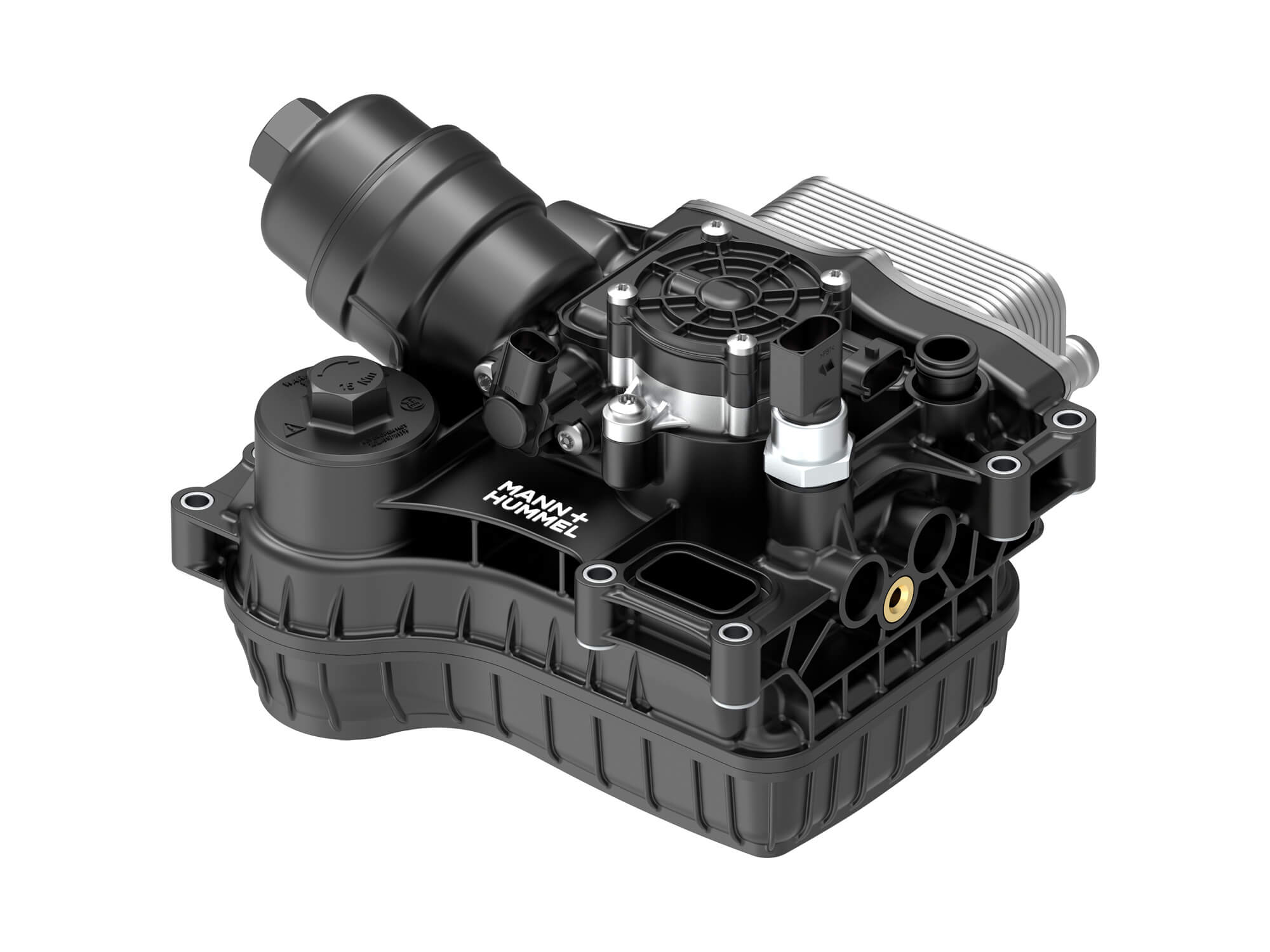

Clean oil for the electric motor
In order to ensure constantly high performance, modern transmissions require efficient oil filters. This also applies to alternative propulsion systems. MANN+HUMMEL therefore offers a compact oil filter system for eAxles and hybrid transmissions which integrates many functions.
