Centrifuges
Centrifuges from MANN+HUMMEL reliably separate soot particles from the engine oil and thus reduce engine wear. Thanks to numerous integrated functions, such as a pressure control valve or oil reservoir, MANN+HUMMEL centrifuges offer further advantages. As a result, not only the oil quality is improved, but the service interval is also significantly extended. In addition to market products, MANN+HUMMEL also offers centrifuges individually tailored to customer requirements.

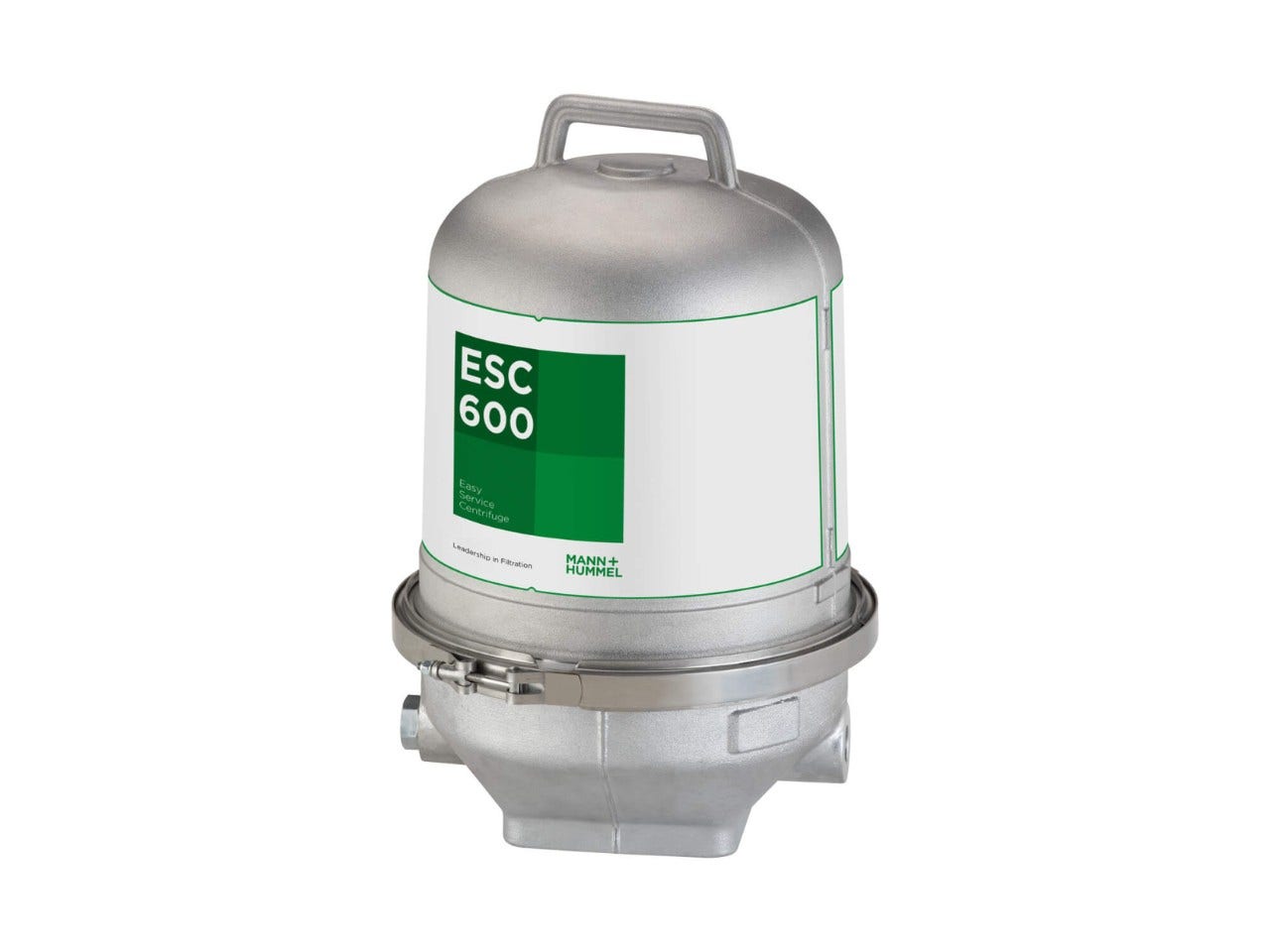

![ESC 600](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-esc-600.jpg.transform/w.1680/image.jpg)
ESC 600
Applications | Industrial and Marine large capacity heavy engines |
System capacity | 200 to 1,500 l |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 55 to 76 l/min |
Rotor speed | 2,800 to 3,800 rpm |

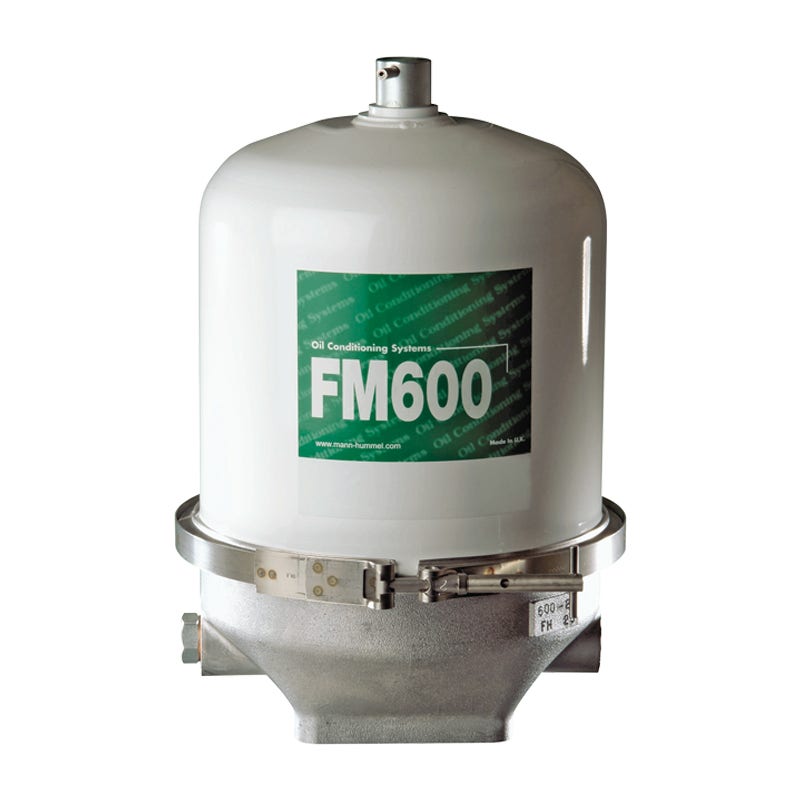

![FM600](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-fm-600.jpg.transform/w.1680/image.jpg)
FM600
Applications | Industrial and Marine large capacity heavy engines |
System capacity | 200 to 1,500 l |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 55 to 76 l/min |
Rotor speed | 2,800 to 3,800 rpm |

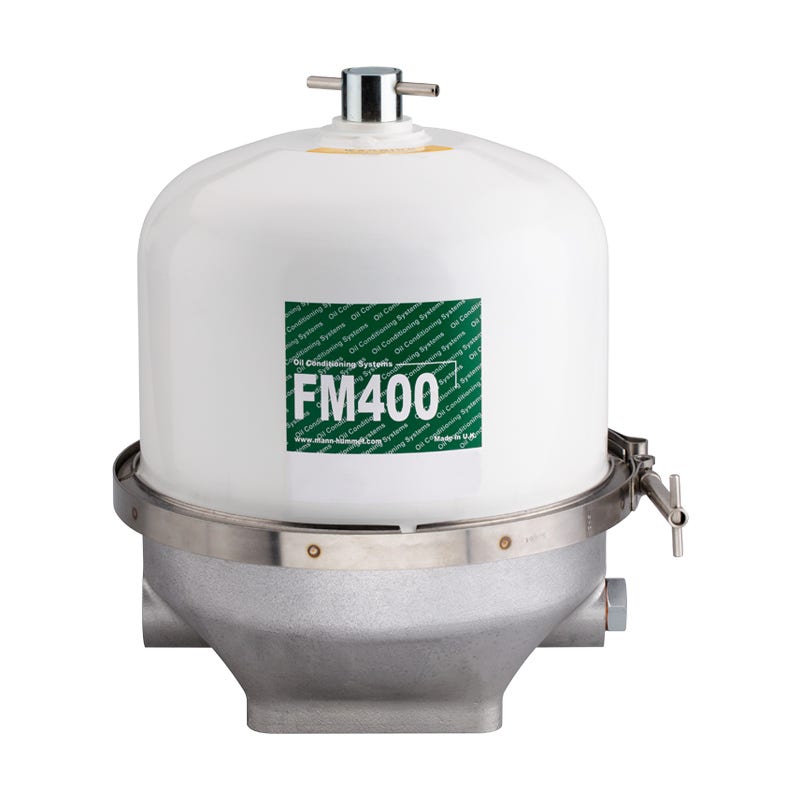

![FM400](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-fm-400.jpg.transform/w.1680/image.jpg)
FM400
Applications | Industrial and Marine engines with medium to large capacity |
System capacity | 200 to 1,500 l |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 33 to 51 l/min |
Rotor speed | 2,900 to 4,650 rpm |

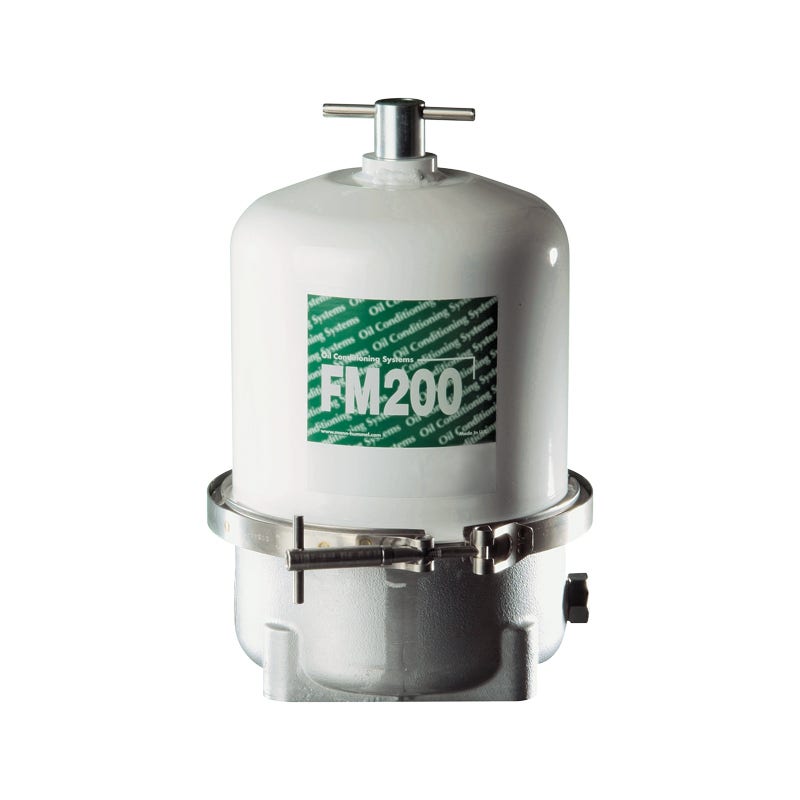

![FM200](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-fm-200.jpg.transform/w.1680/image.jpg)
FM200
Applications | Industrial and Marine engines with small to medium capacity |
System capacity | 40 to 170 liter |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 12 to 21 l/min |
Rotor speed | 2,700 to 4,850 rpm |
![FM090-LCB](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-fm-090-lcb.jpg.transform/w.1680/image.jpg)
FM090-LCB
Applications | Heavy on-road and small industrial engines |
System capacity | 15 to 90 l |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 5.8 to 10 l/min |
Rotor speed | 5,100 to 8,400 rpm |
![FM050P-LCB](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-fm050p-lcb.jpg.transform/w.1680/image.jpg)
FM050P-LCB
Applications | Agricultural, heavy on-road and small industrial engines |
System capacity | 15 to 90 l |
Oil pressure range | 3 to 7 bar |
Volume flow rates | 5.5 to 8.4 l/min |
Rotor speed | 5,800 to 8,900 rpm |

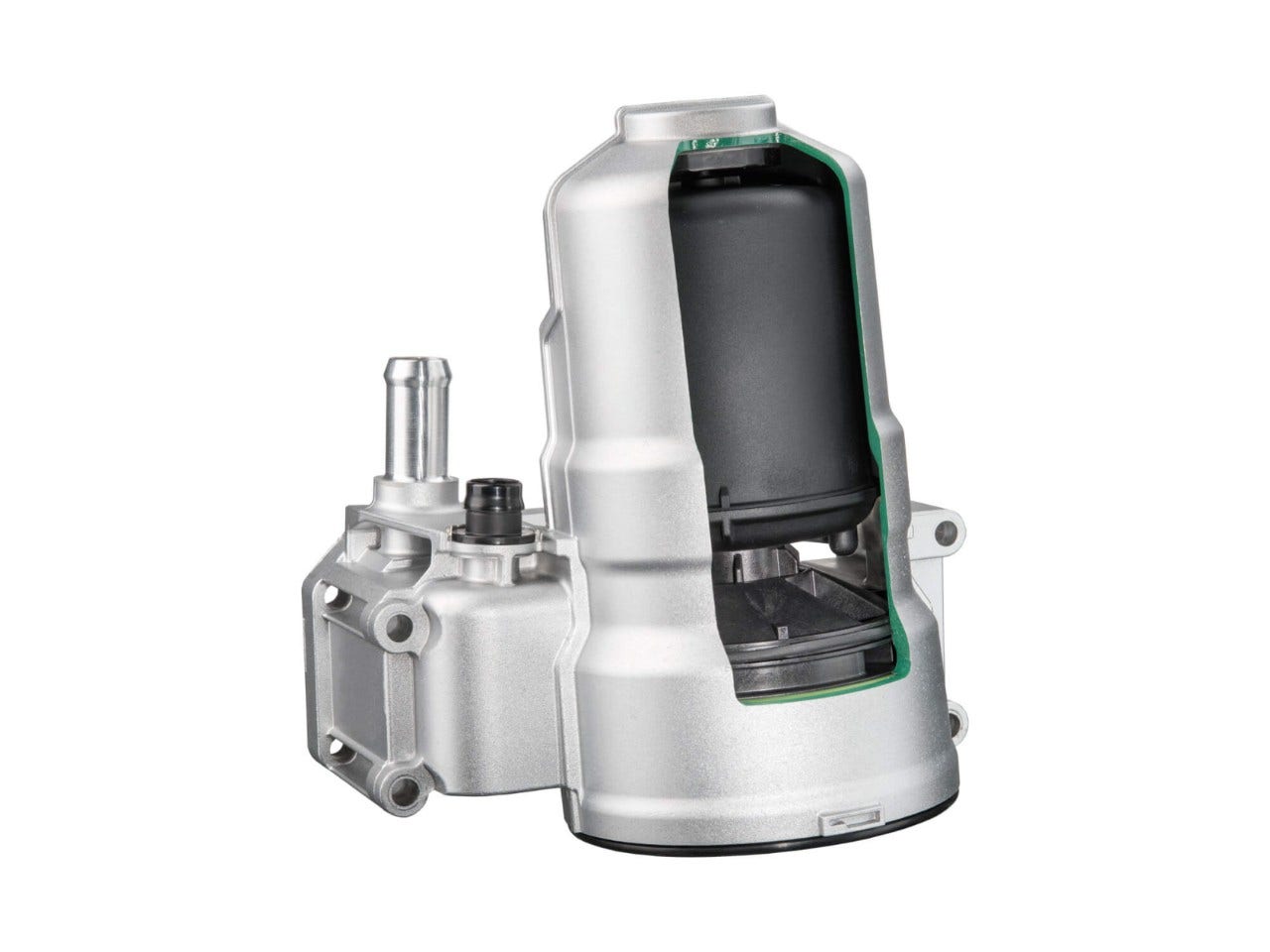

![Zentrifugen für Nutzfahrzeuge](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-for-heavy-duty-applications.jpg.transform/w.1680/image.jpg)
Centrifuges for heavy duty applications
- Reliable separation of dirt particles from oil
- Tailor-made solutions for individual customer requirements
- Optimum use of the available installation space
- Easy maintenance and increased service
