Fuel cells
![Kathodenluftfilter](/content/dam/website/mann-hummel/oem/products/products-for-electrified-powertrains/fuel-cells/cathode-air-cleaner-entaron-fc.jpg.transform/w.1680/image.jpg)
Cathode air cleaner
- Protection of the fuel cell stack from airborne contaminants
- Harmful gases are efficiently removed from the intake air
- Use in mobile or stationary fuel cell systems
- Available as standard product (ENTARON FC, AirPure)
![Breitbanddämpfer](/content/dam/website/mann-hummel/oem/products/products-for-electrified-powertrains/fuel-cells/fuel-cells-broad-band-silencer.jpg.transform/w.1680/image.jpg)
Broad band silencer
- Improves acoustics of the intake system
- Reduces the inlet noise and noise radiation of the ducts
- Pressure loss optimized product design for low energy consumption
- Use in stationary or mobile fuel cell systems
- Standard product in development (SoundPro)
![Luftbefeuchter](/content/dam/website/mann-hummel/oem/products/products-for-electrified-powertrains/fuel-cells/fuel-cells-humidifier.jpg.transform/w.1680/image.jpg)
Humidifier
- Protection of the fuel cell membranes against drying out
- Transfers humidity of the exhaust air through flat membranes to the dry intake air
- Use in mobile fuel cell systems
![Kathoden-Wasserabscheider](/adobe/dynamicmedia/deliver/dm-aid--b7caddf5-d990-4082-8f27-927ffdf3d3c8/mh-oe-waterpro-vertical.jpg?preferwebp=true&crop=20.9p,10.0p,55.5p,79.9p&quality=82)
Cathode water separator
- Removes water and ice crystals from cathode supply and exhaust air streams
- Protects the cathode air cleaner and fuel cell stack from water ingress and mechanical damage
- Highly flexible product for simple integration
- Vertical or horizontal installation position offers many installation options - different sizes cover different performance classes
- Standard product in development (WaterPro)
![Abluftsystem](/content/dam/website/mann-hummel/oem/products/products-for-electrified-powertrains/fuel-cells/fuel-cells-exhaust-air-system.jpg.transform/w.1680/image.jpg)

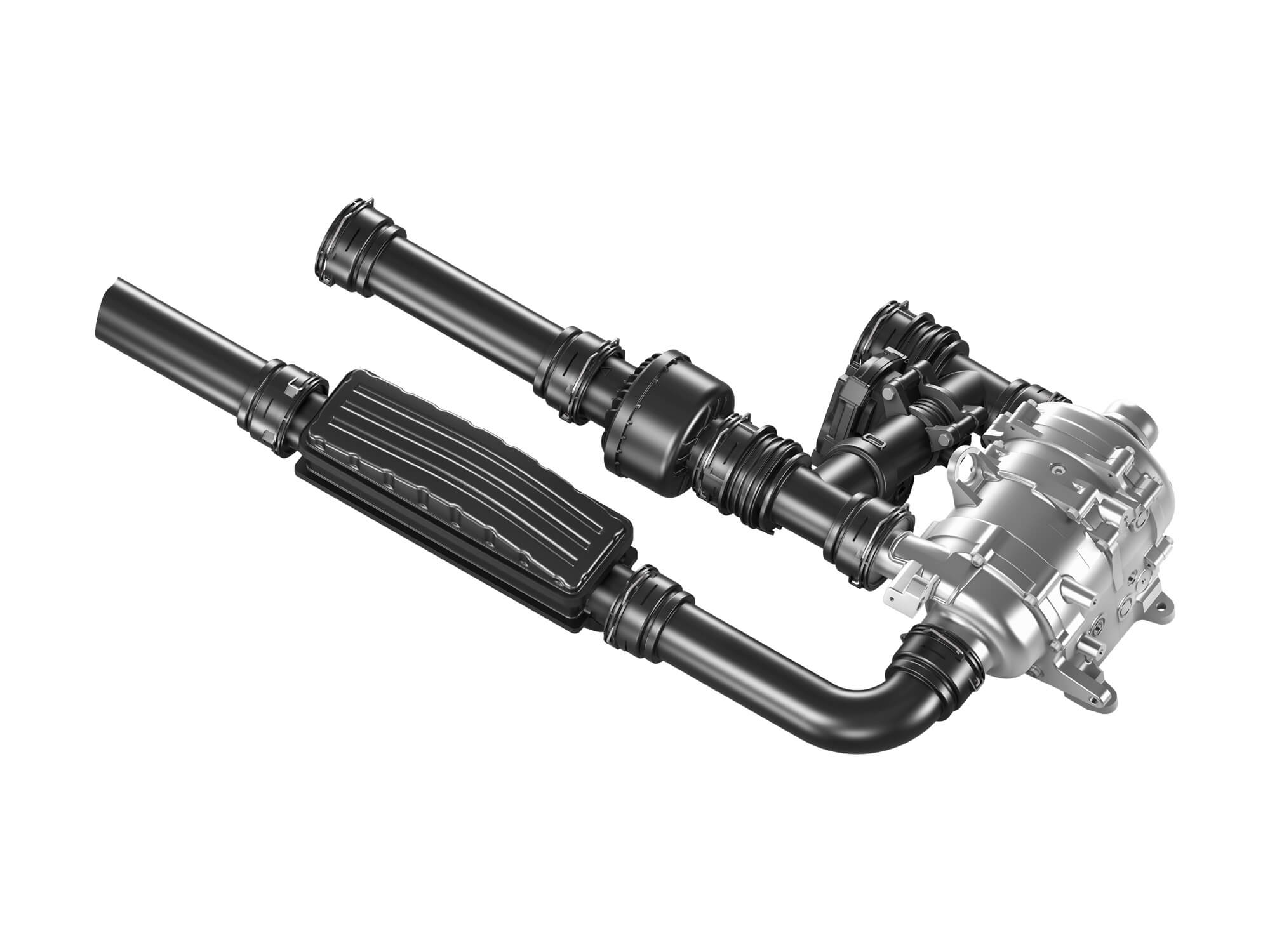

Exhaust Air System
Filtration, separation and adsorption to protect the fuel cell from inlet to exhaust
Highly integrated solution in fully-plastic design
Air routing from stack to exhaust path including movement compensation, acoustic resonators, water separator to protect the turbine, wastegate-system for stack bypass
![Kühlmittelpartikelfilter](/content/dam/website/mann-hummel/oem/products/products-for-electrified-powertrains/fuel-cells/coolant-particle-filter-c180.jpg.transform/w.1680/image.jpg)

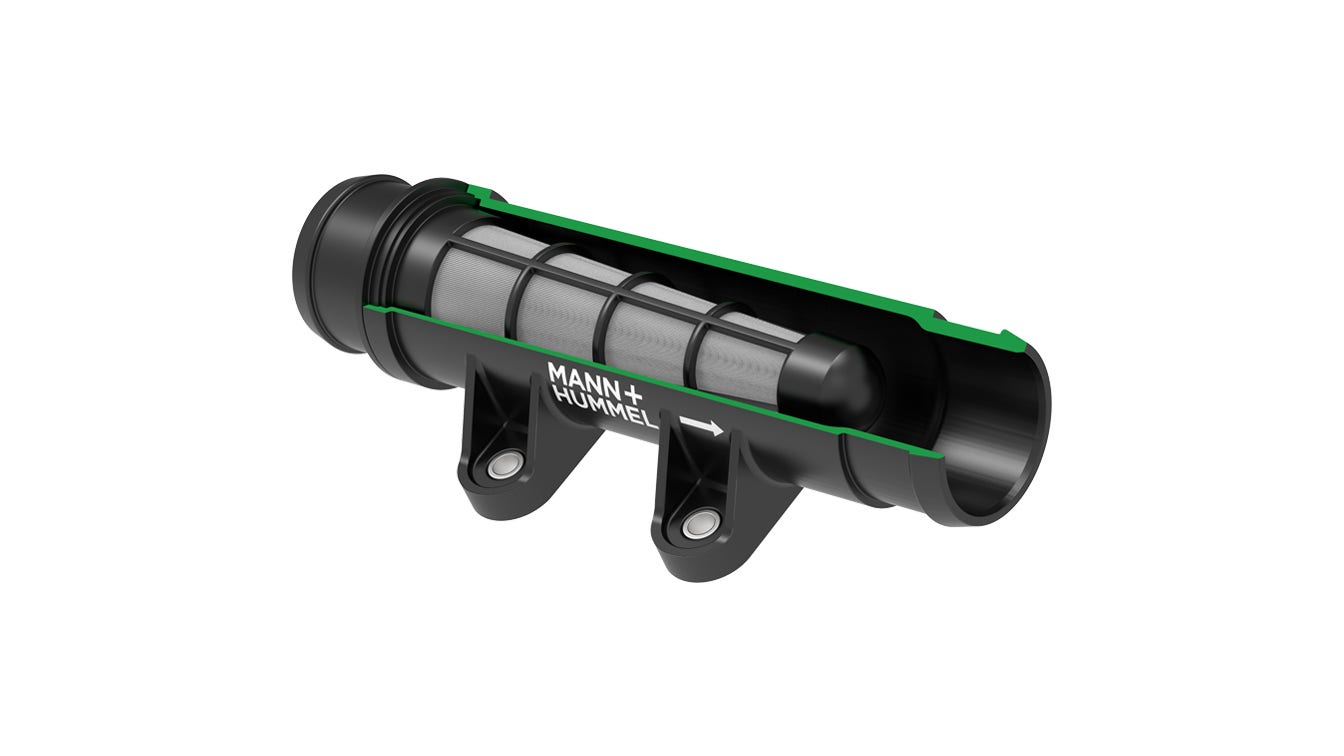

Coolant particle filter
- Protection of the coolant pump against wear and blocking of the cooling channels in the fuel cell stack
- Use in passenger cars and commercial vehicle applications as well as other applications such as cogeneration plants and industrial trucks
- Modular system with different sizes available for optimal adaptation to the application
- Available as standard product (CoolantClean)
![Ionentauscher-Filter](/adobe/dynamicmedia/deliver/dm-aid--3f923c86-075d-486d-a5fb-a13c8a8350c6/ionfree-omniflow.jpg?preferwebp=true&crop=12.0p,10.0p,69.5p,79.9p&quality=82)
Ion exchange filter
- Protection of the fuel cell stack against electrical short circuits
- Integration into the bypass of the coolant circuit
- Use in stationary or mobile fuel cell systems
- Two product families: available as standard product (IonFree) for automotive applications and available as standard product (OmniFlow) for industrial applications
