Centrifuge ESC 600
![ESC 600 - Easy Service Centrifuge by MANN+HUMMEL ESC 600 - Easy Service Centrifuge von MANN+HUMMEL](/content/dam/website/mann-hummel/oem/products/centrifuges/centrifuges-esc-600.jpg.transform/w.1680/image.jpg)
The centrifuges reliably retain contaminants from the lubrication oil used in diesel engines in the partial flow and therefore contribute towards a considerably longer service interval. The development of the oil centrifuge ESC 600 (Easy Service Centrifuge) is the response of MANN+HUMMEL to numerous customer requests for a new generation of partial-flow centrifuges for diesel engines which are easy, clean and quick to service. The use of revolutionary materials take MANN+HUMMEL centrifuge technology into a new era.
Technical features | ESC 600 |
---|---|
System capacity | 200 to 1,500 l |
Oil pressure range | 3 to 7 bar |
Volume flow range | 55 to 76 l/min |
Rotor speed | 2,800 to 3,800 rpm |
Dirt capacity | 6 l |
Net weight | 25 kg |
Product benefits
Extension of oil lifetime
Reduces maintenance costs
Supports clean combustion and fuel efficiency
Clean and easy service
Maximizes operating time
Video
High performance details

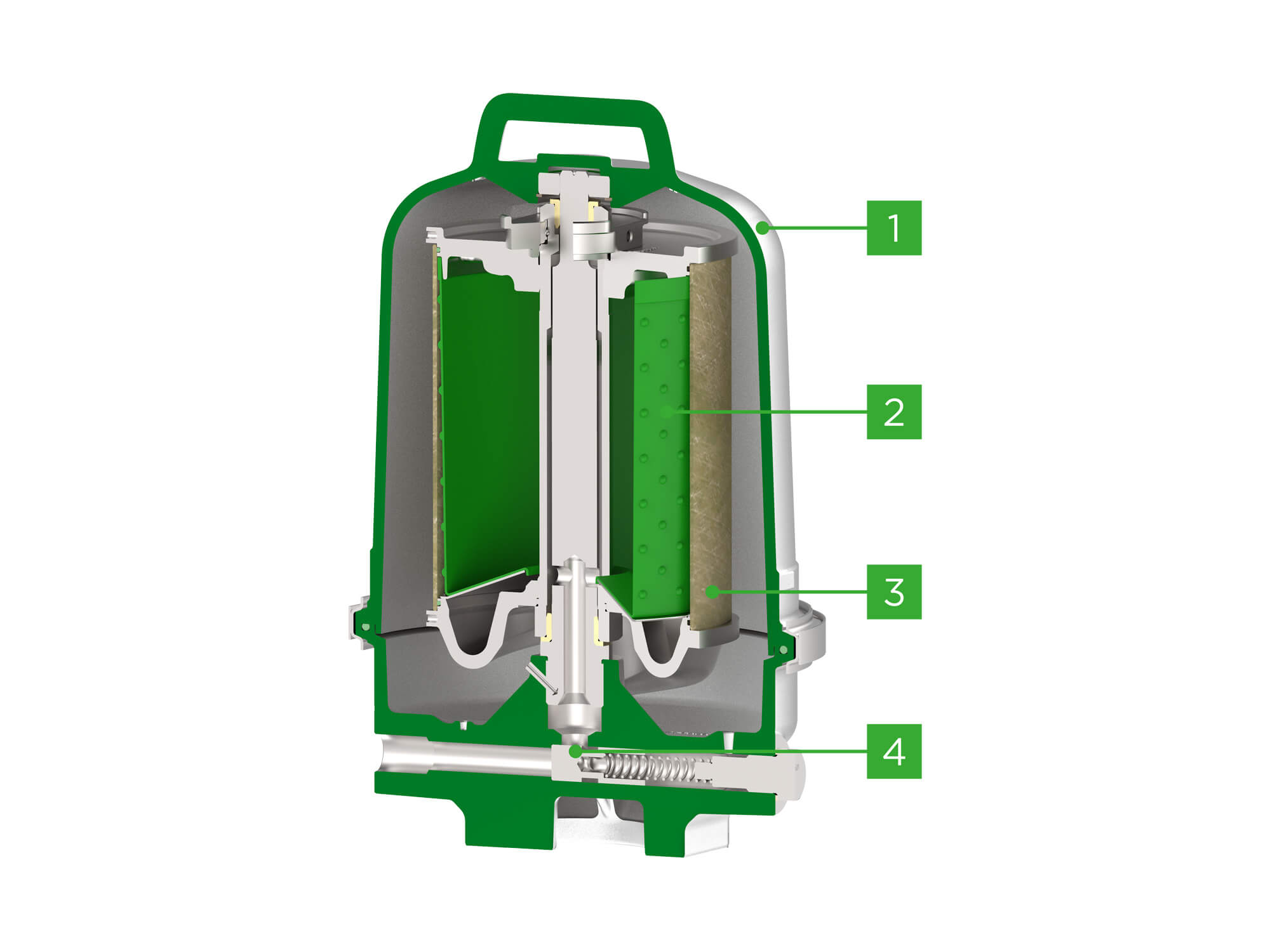

![Cut-away model of the ESC 600](/content/dam/website/mann-hummel/oem/hotspots/esc-600.jpg.transform/w.1680/image.jpg)
1 Die-cast cover
2 Silicone rotor liner
3 Quick release rotor
4 Rapid drain cut off valve
