Ion exchange filter

To keep the electrical conductivity of the coolant below the permissible limit, ions must be effectively removed. MANN+HUMMEL offers two product families optimized for the respective area of application: OmniFlow for industrial applications and IonFree for automotive applications from passenger cars to commercial vehicles.

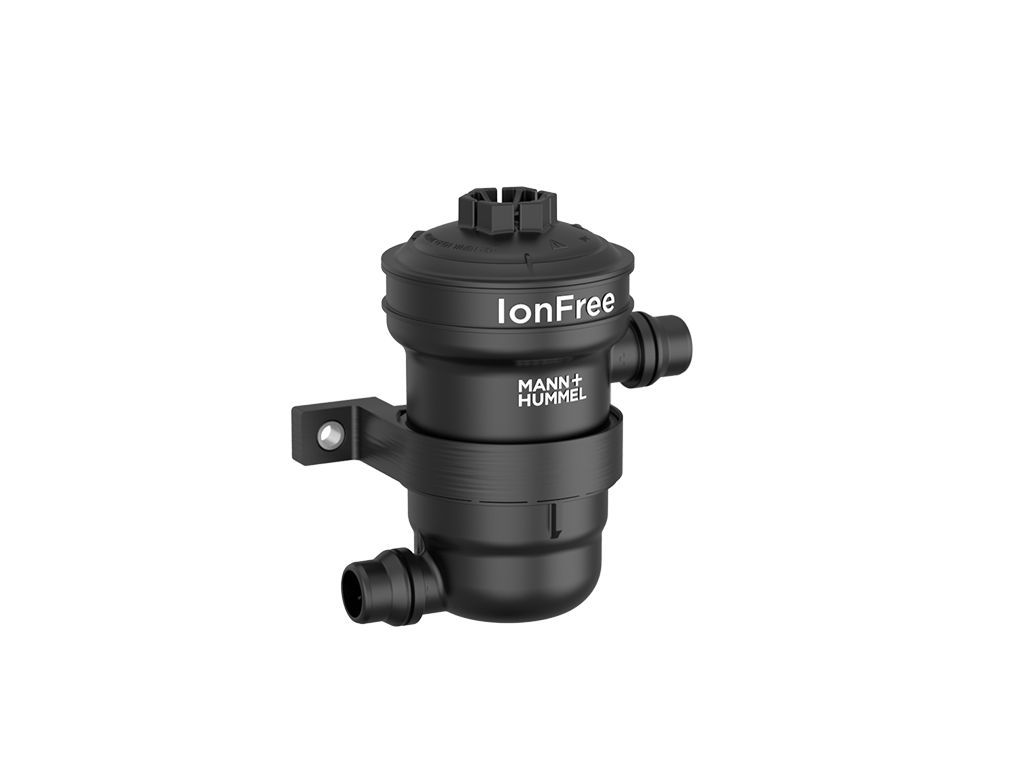

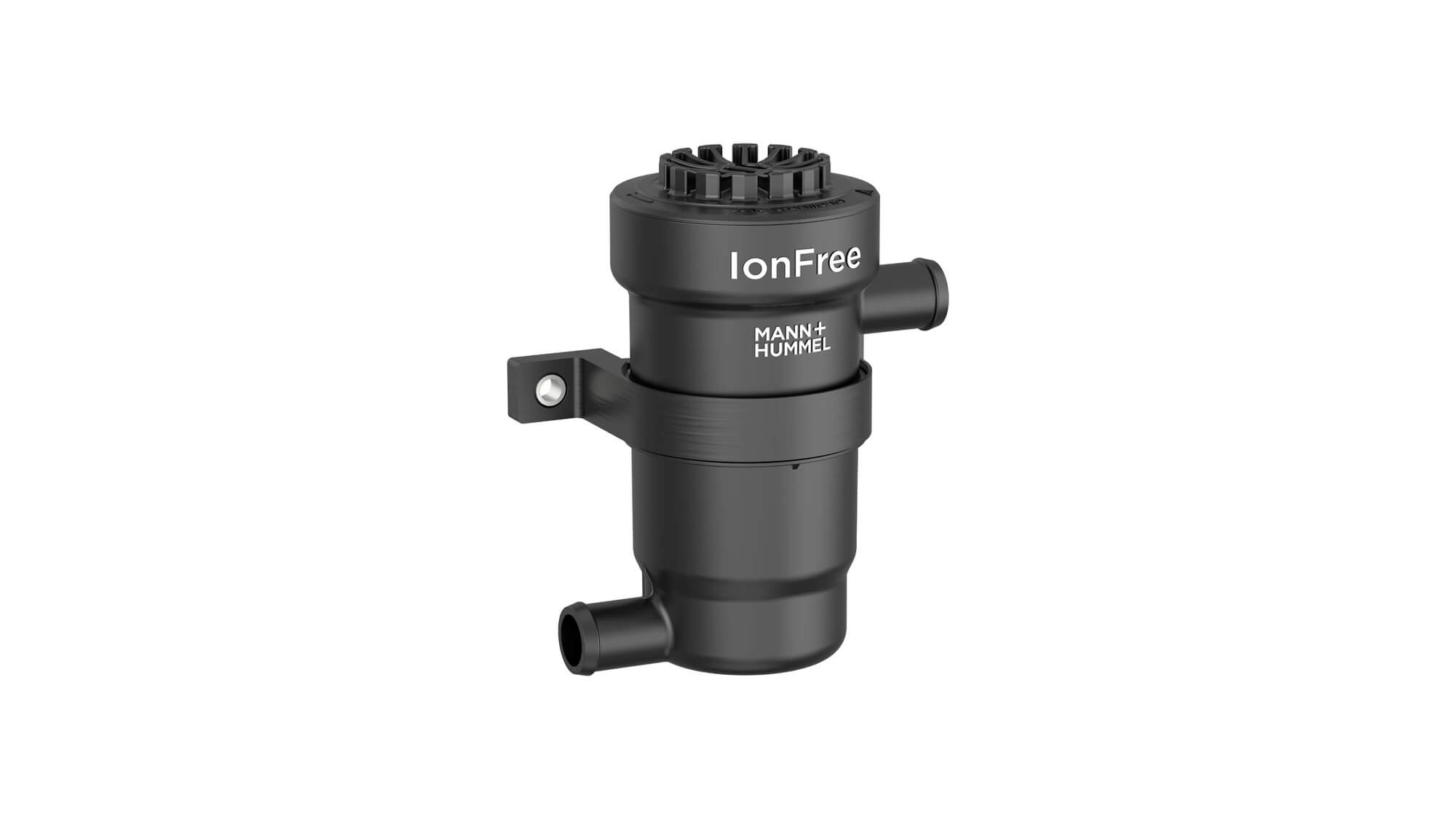

IonFree - for automotive applications

Ion exchange filters with medium capacity of 820 milliequivalents

Ion exchange filters with high capacity of 1,190 milliequivalents

Stud type as hose connection or VDA coupling

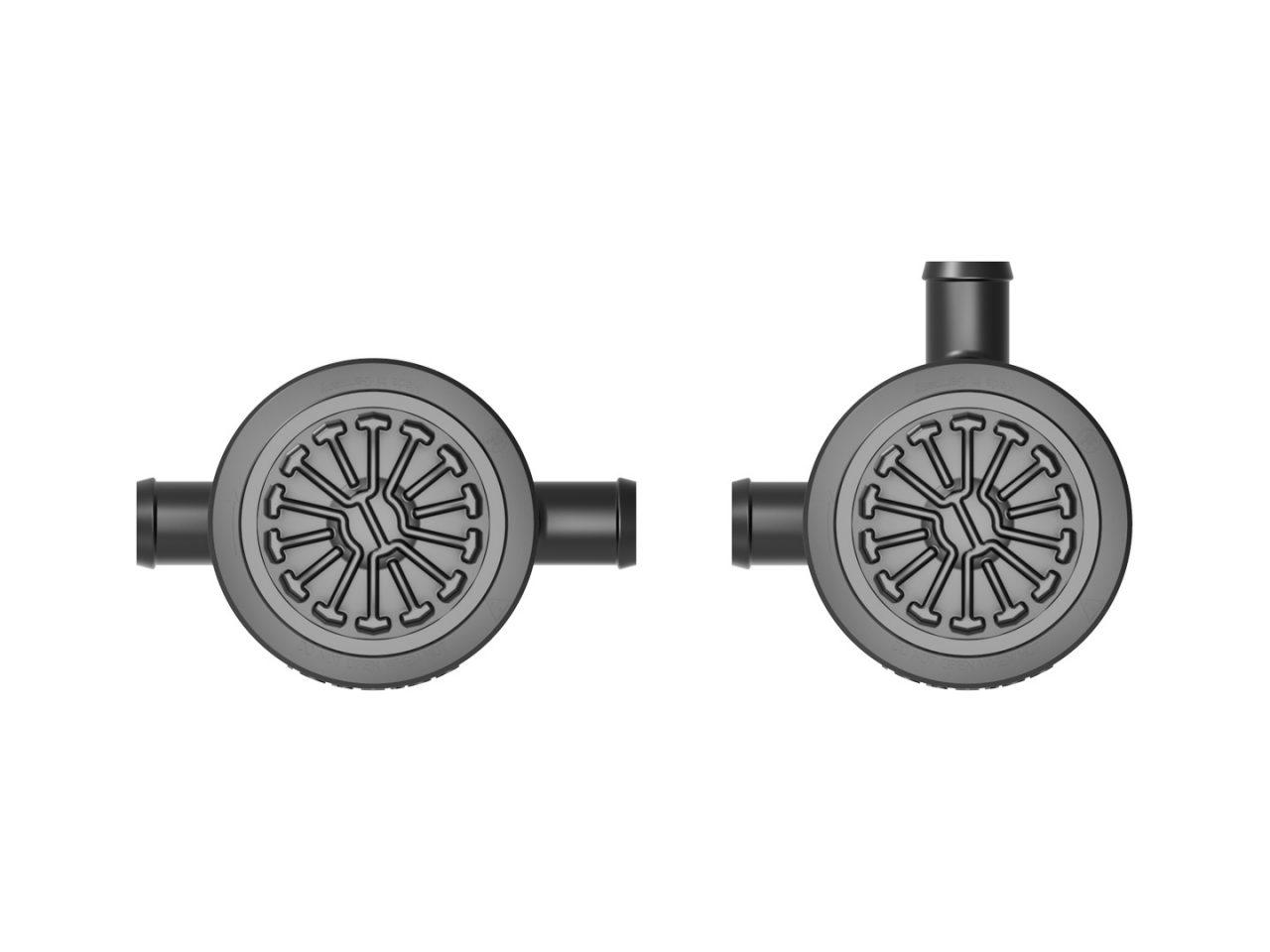

Stud angle of the stud types in 90 or 180 degrees

Product benefits

  • Keeps the electrical conductivity of cooling liquid low

  • Automotive design for high capacity

  • Compact and openable design

  • Replaceable cartridge offers an easy service concept

  • Standard product offers lower cost

    •

OmniFlow - for industrial applications

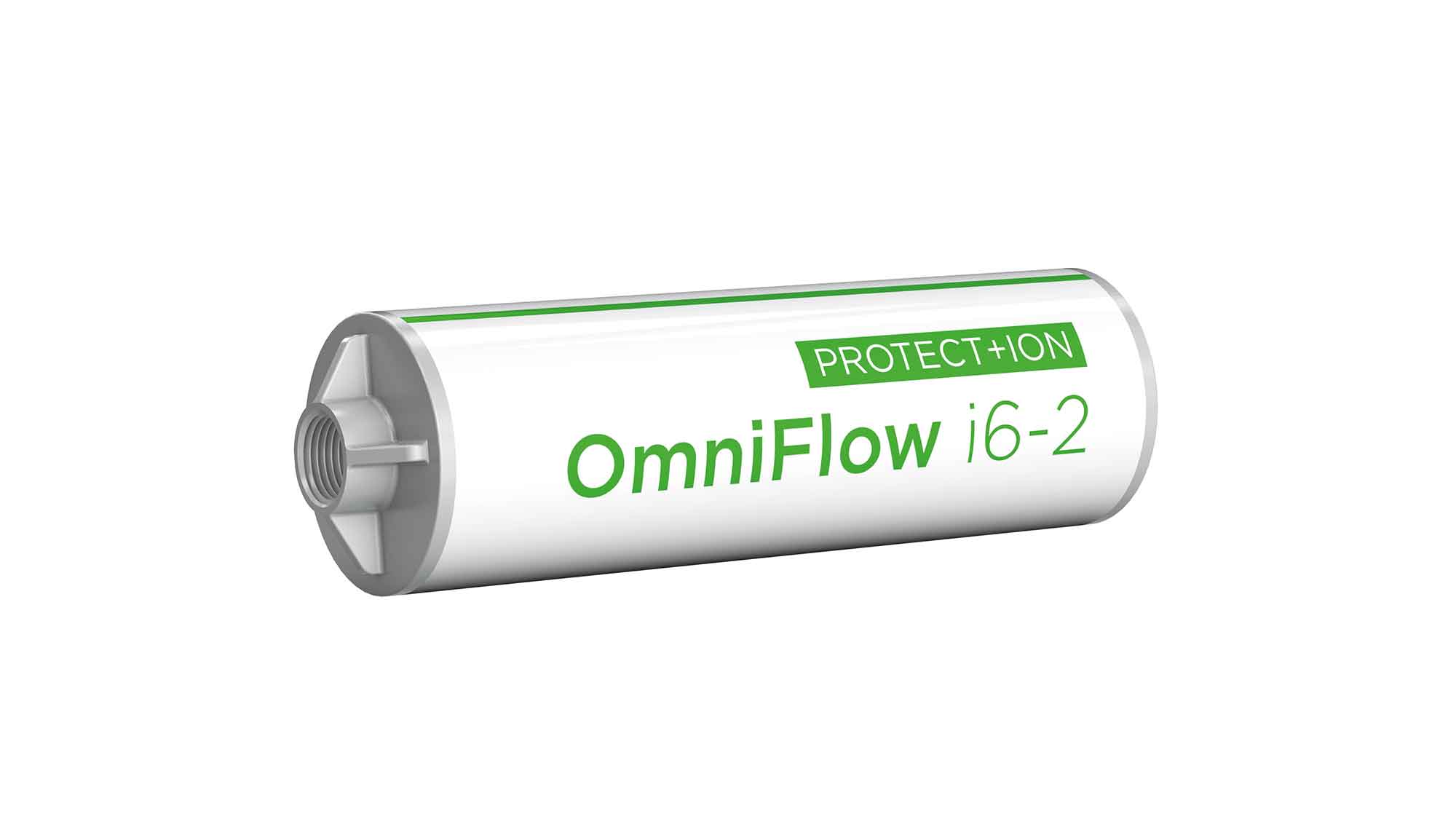

omniflow-i6-2

OmniFlow i6-2

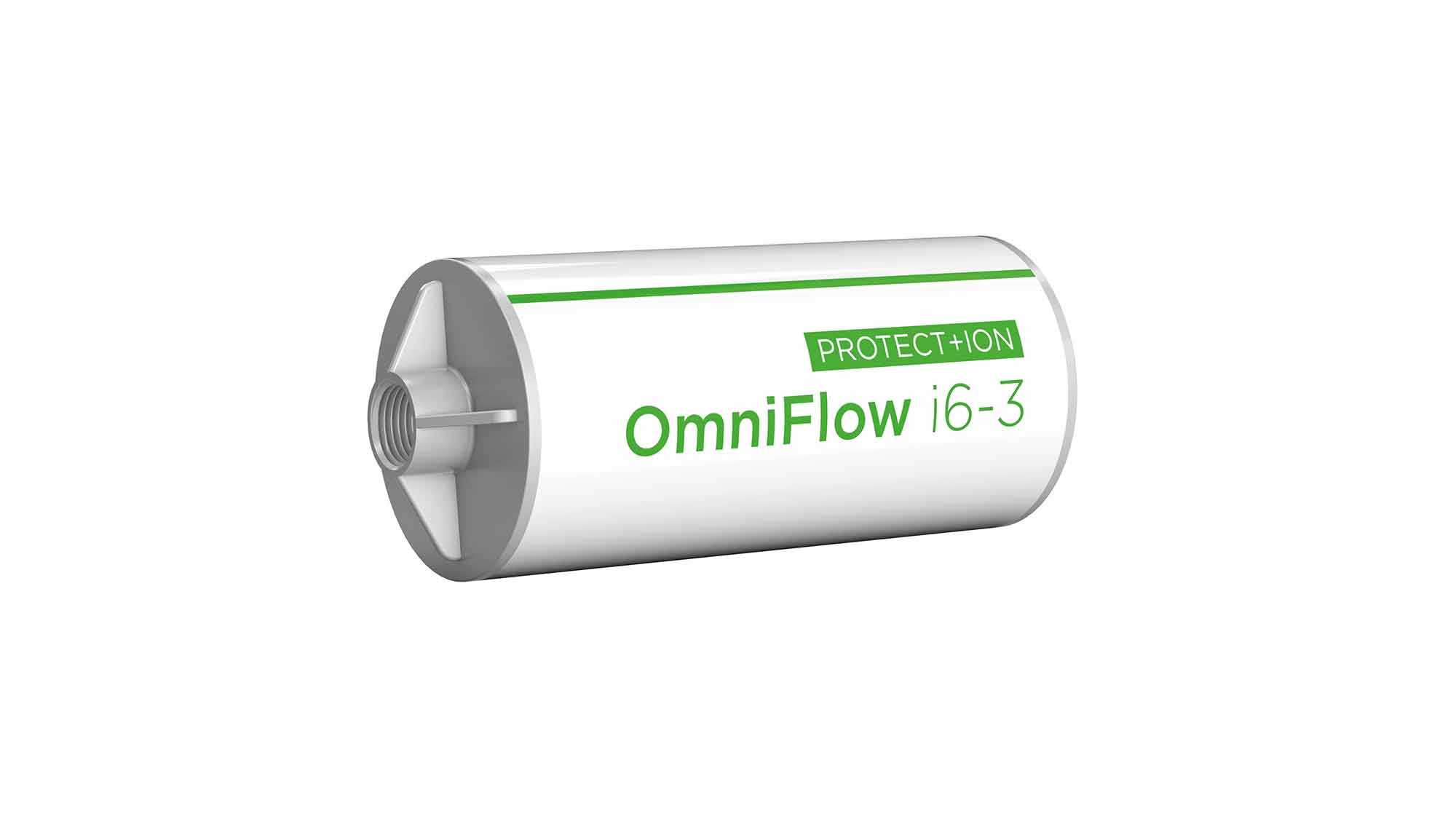

omniflow-i6-3

OmniFlow i6-3

omniflow-i10-2

OmniFlow i10-2

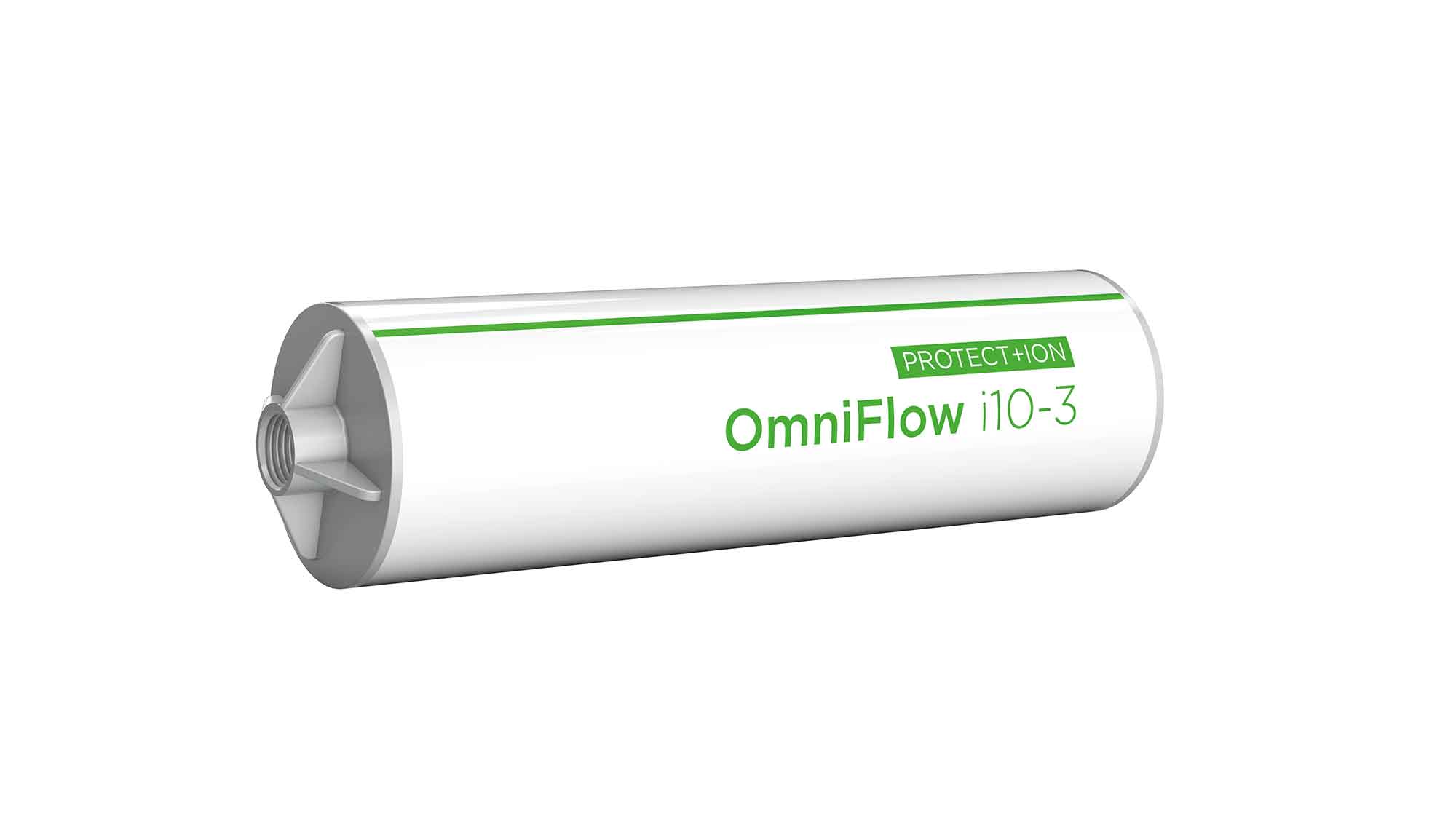

omniflow-i10-3

OmniFlow i10-3

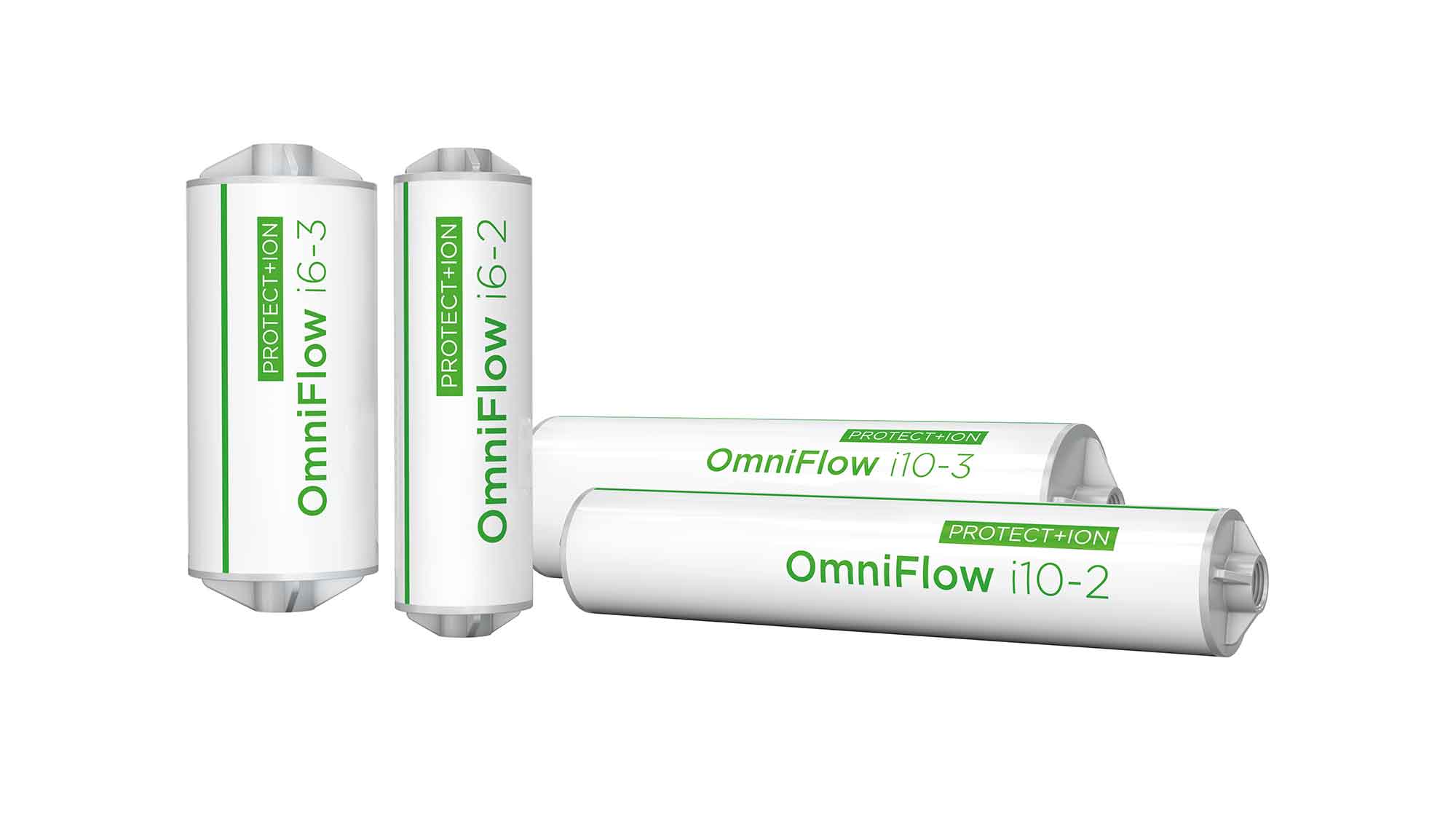

omniflow-portfolio-overview

OmniFlow portfolio overview

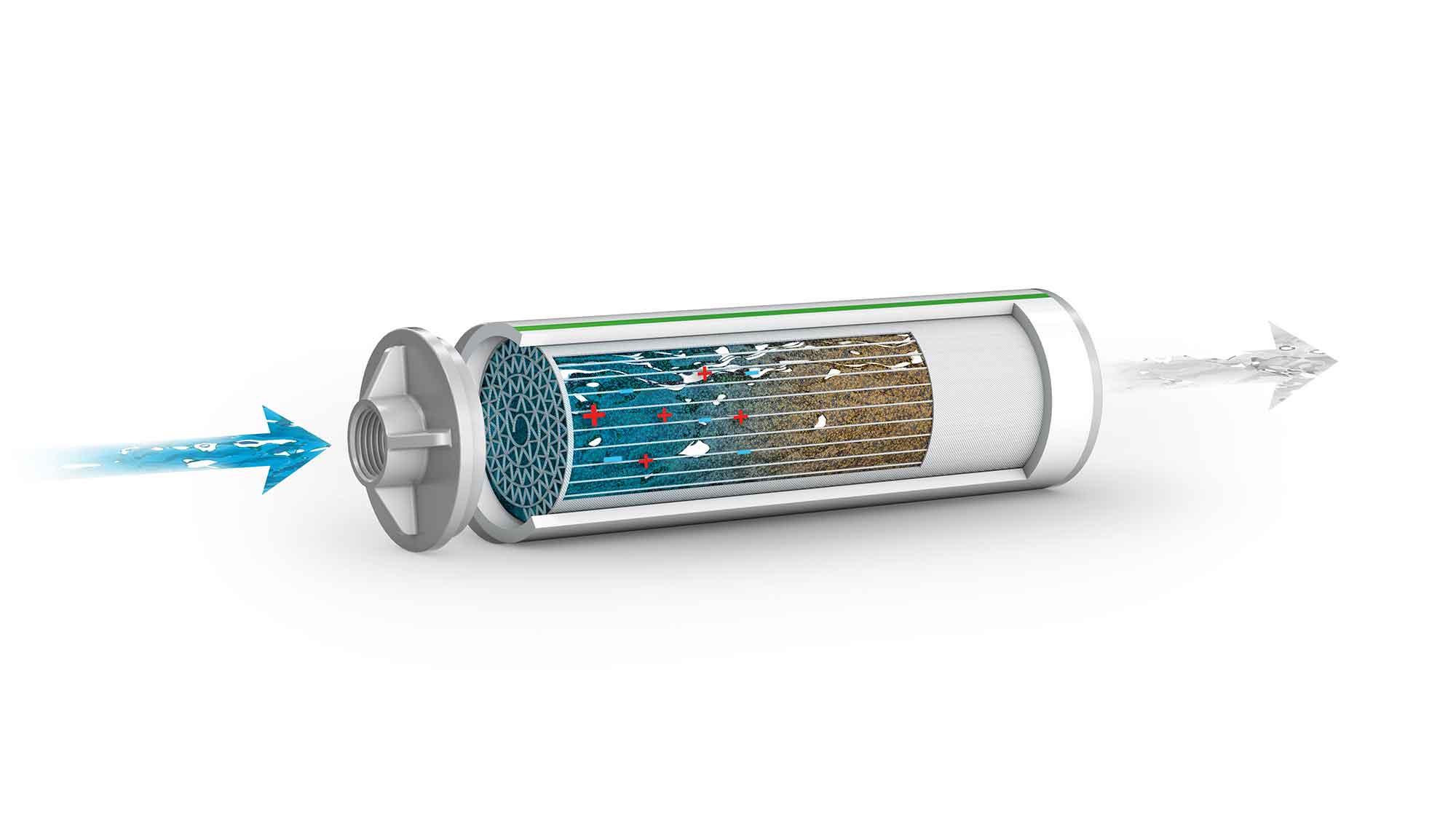

omniflow-cut

OmniFlow cut

Product benefits

  • Keeps the electrical conductivity of cooling liquid low

  • Omnidirectional flow and installation: any orientation (horizontal, vertical, etc.) possible

  • Standard sizes (cap threads, body diameter and length) enables easy application

  • High quality and capacity resin

  • Standard product offers lower cost

    •

Video

We use the service of YouTube to offer you multimedia content.
Your consent is required to use this service. Please refer to our data privacy for more details.

Contact us

Arnaud Champion

Sales New Products

E-Mobility Shop

In our e-mobility online shop you will find our standard components for battery and fuel cell applications which can be quickly and easily configured.

Visit our e-mobility online shop:

Read more

Further information

System expertise for fuel cell powertrains

Legislation governing vehicle emissions is becoming stricter, the climate debate and therefore also the development of alternative drives is gaining momentum. One promising solution is the fuel cell used to supply energy to an electric drive. MANN+HUMMEL has now developed an innovative air induction system for the cathode path in order to ensure an efficient supply of clean air to the fuel cell.

Read more

IonFree modular kit

The fuel cell is one option for balancing mobility and climate protection in the future. MANN+HUMMEL also supplies tailor-made filtration solutions for hydrogen propulsion systems. The ion exchange filters from the new IonFree modular kit reliably protect the fuel cell stack against dangerous short circuits and reduce system costs.

Read more
