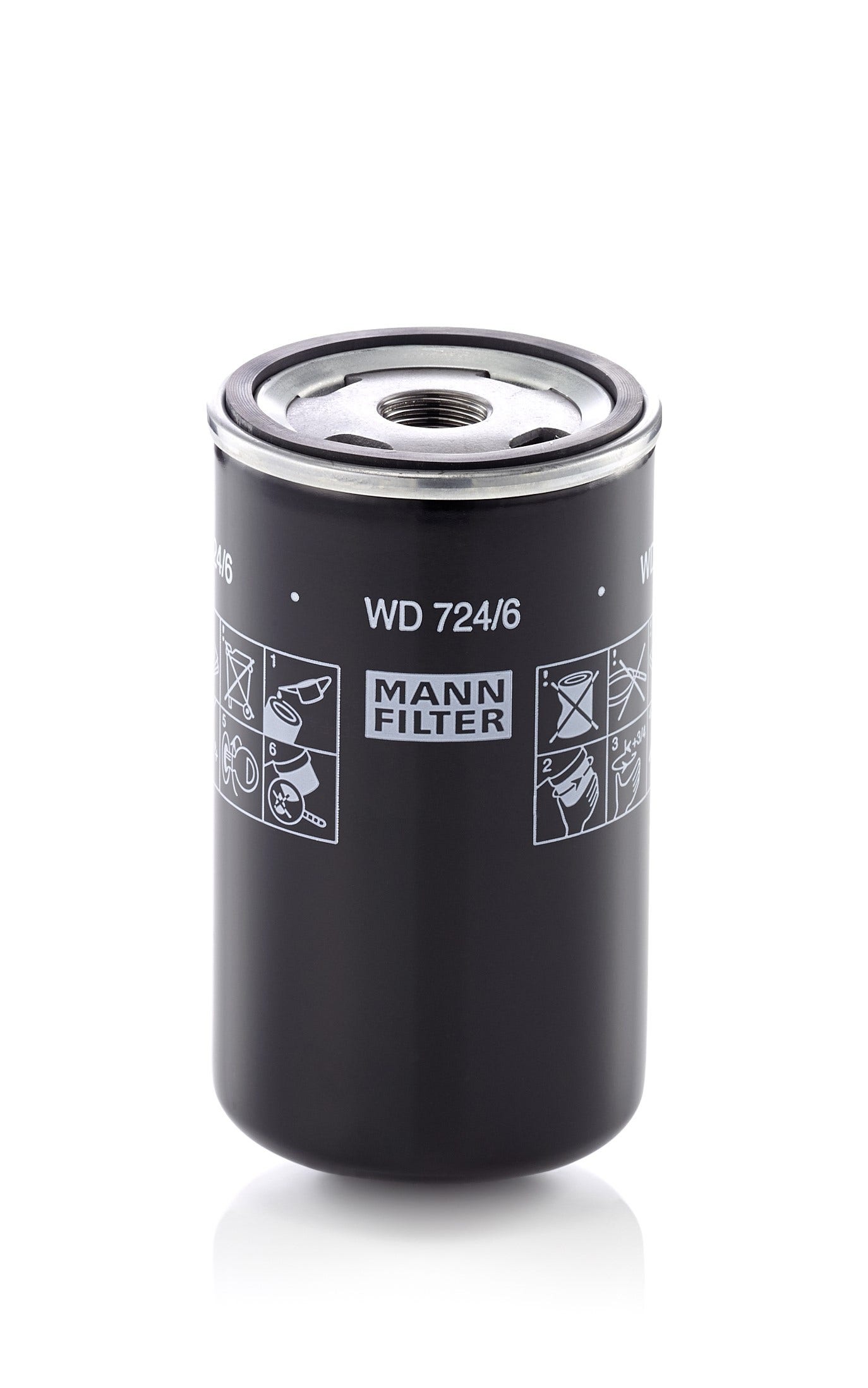

Oil Filter Element
WD 724/6
6740359966
About this item
Nominal Flow Rate: 0-25 L/min
Filter fineness with 99% separation efficiency: 39
Operating Pressure: 35 Bar
Available with a variety of filter media: cellulose, mixed fiber, fully synthetic or glass fiber media
High quality filter media for long lifetime
Efficient separation with minimal pressure drops
Improved flow geometry
Optional non return valve and bypass valve
Product highlights and benefits
-
Availabe with a variety of filter media: cellulose, mixed fiber, fully synthetic or glass fiber media
-
High quality filter media for long lifetime
-
Efficient separation with minimal pressure drops
-
Improved flow geometry
-
Optional non return valve and bypass valve
| Data | Value |
|---|---|
| Nominal flow rate oil (min) (l/min) | 0 |
| Nominal flow rate oil (max) (l/min) | 25 |
| Operating pressure | 35 Bar |
| Operating pressure (min) (bar) | 0 |
| Operating pressure (max) (bar) | 35 |
| Maximum flow rate (m³/min) | 25 l/min |
| Filter fineness with 50% separation efficiency (µm) | 16 |
| Filter fineness with 99,5% separation efficiency (µm) | 39 |
| Gross weight single pack (g) | 0.55 kg |
| Net weight single pack | 0.52 kg |
| Outer diameter | 76 mm |
| Bypass Valve Opening Pressure (bar) | 3.5 Bar |
d1
3/4-16UNF mm
d2
63 mm
d3
72 mm
d4
80 mm
d5
76 mm
h
138 mm
