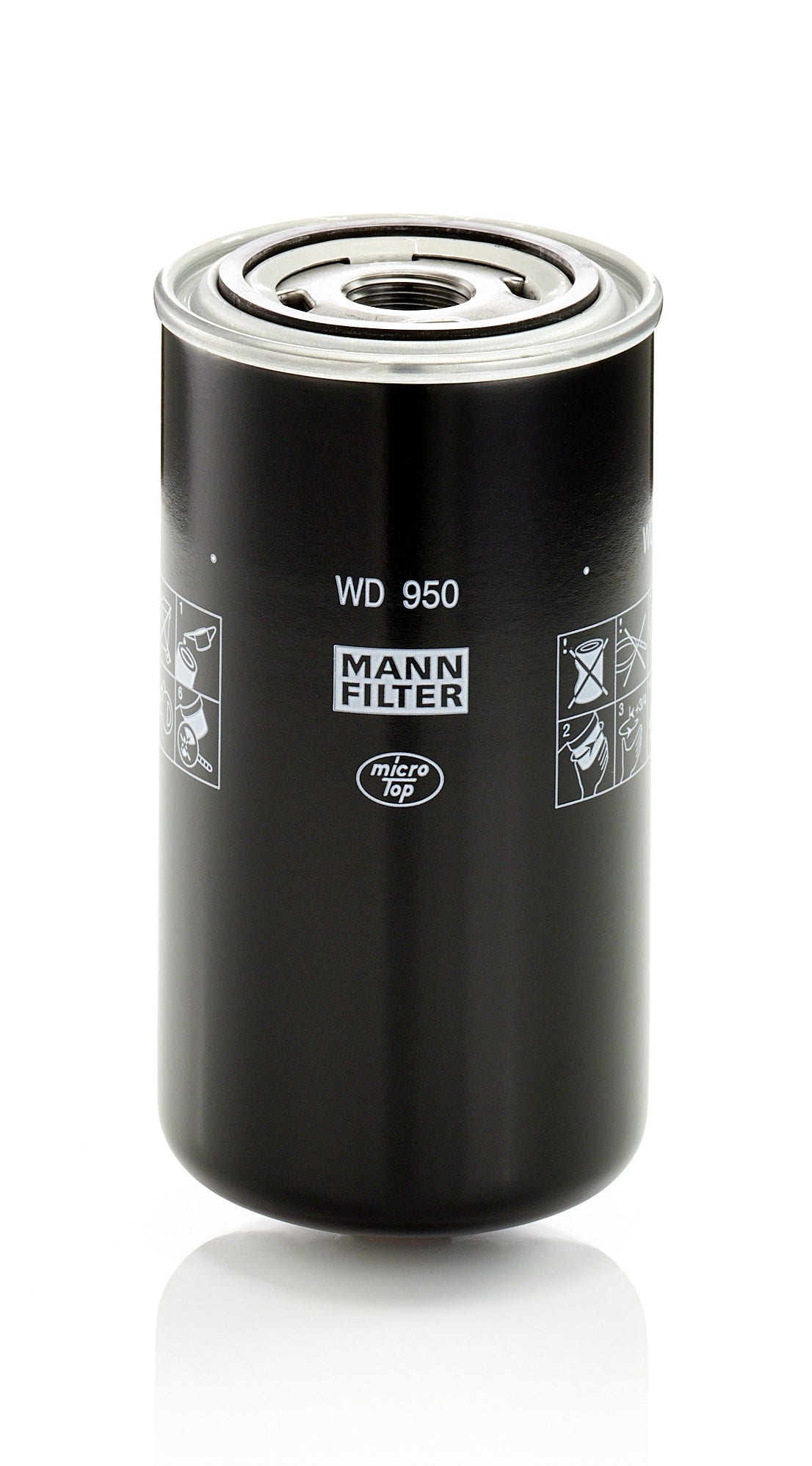

Oil Filter Element
WD 950
6750559256
About this item
Nominal Flow Rate: 0-65 L/min
Filter fineness with 99% separation efficiency: 50
Operating Pressure: 25 Bar
Available with a variety of filter media: cellulose, mixed fiber, fully synthetic or glass fiber media
High quality filter media for long lifetime
Efficient separation with minimal pressure drops
Improved flow geometry
Optional non return valve and bypass valve
Product highlights and benefits
-
Availabe with a variety of filter media: cellulose, mixed fiber, fully synthetic or glass fiber media
-
High quality filter media for long lifetime
-
Efficient separation with minimal pressure drops
-
Improved flow geometry
-
Optional non return valve and bypass valve
| Data | Value |
|---|---|
| Nominal flow rate oil (min) (l/min) | 0 |
| Nominal flow rate oil (max) (l/min) | 65 |
| Operating pressure | 25 Bar |
| Operating pressure (min) (bar) | 0 |
| Operating pressure (max) (bar) | 25 |
| Maximum flow rate | 65 l/min |
| Filter fineness with 50% separation efficiency (µm) | 20 |
| Filter media material OE | 6 I16 - 1712600 |
| Product height | 174.5 mm |
| Gross weight single pack | 0.79 kg |
| Net weight single pack | 0.74 kg |
| Outer diameter | 93 mm |
| Bypass Valve Opening Pressure (bar) | 2.5 Bar |
d1
1-12UNF mm
d2
62 mm
d3
71 mm
d4
96 mm
d5
93 mm
h
172 mm
