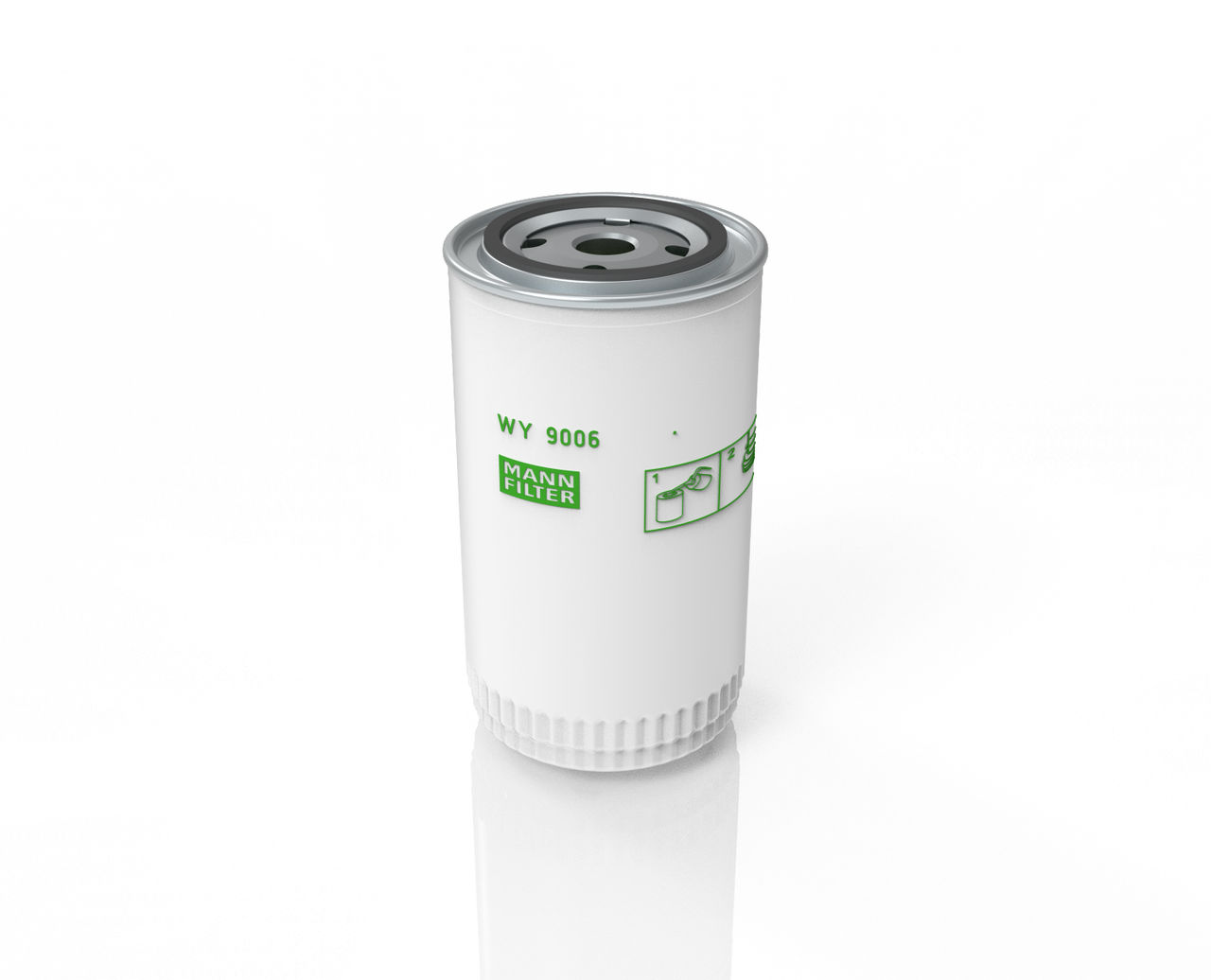

Hydraulic Filter Element
WY 9006
1498970S51
About this item
Nominal Flow Rate: 38-70 L/min
Filter fineness with 99% separation efficiency: 10
Operating Pressure: 14 Bar
Spin-on filters by MANN+HUMMEL offer our customers and partners a highly reliable and effective solution to hydraulic oil contamination. With their filtration function, our spin-on filters provide a superb level of protection against the ingress of dirt particles within the hydraulic circuit. They are used in the hydraulic oil circuit, for example after pumps, where their filtration properties remove even the finest particles from the oil. As a result, this helps reduce operating costs whilst simultaneously increasing the service life. Furthermore, thanks to their wide range of flexible application options, the filters continue to ensure clean hydraulic oil when other systems would have reached their limits.

Product highlights and benefits

  • Lower risk of dirt ingress compared with using normal housing filters
  • Available for different pressure levels, and with a range of integrated functions to choose from
  • Rugged, spaced-optimized and reliable design
  • Optional private labeling available
  • Quick and clean filter replacement
  • Increased time between service intervals

Data Value
Nominal flow rate oil (min) (l/min) 38
Nominal flow rate oil (max) (l/min) 70
Operating pressure 14 Bar
Differential pressure (bar) 14.0000
Filter fineness with 50% separation efficiency (µm) 4
Filter media material OE GLASS FIBER+POLYESTER
Filter fineness with 99,5% separation efficiency (µm) 12
Product height 142 mm
Bypass Valve Opening Pressure (bar) 2.5 Bar

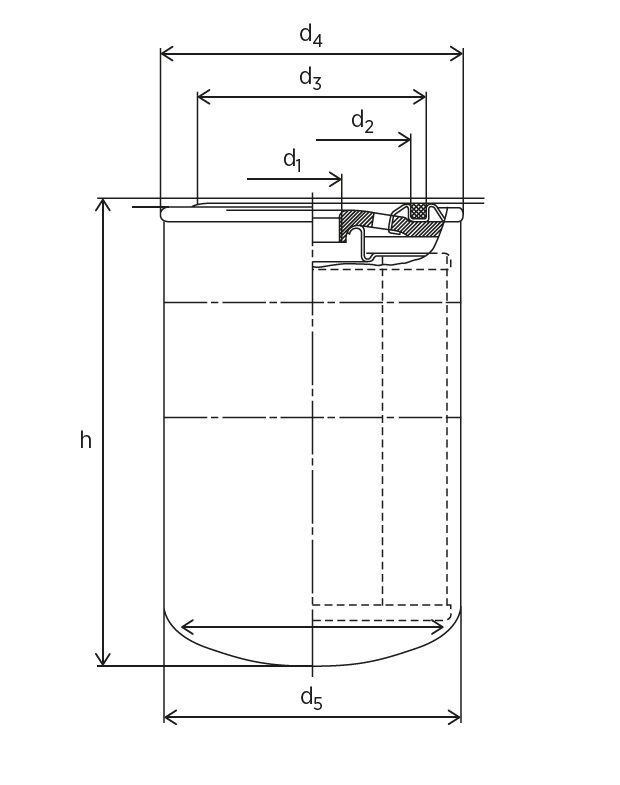

d1
3/4-16 UNF mm
d2
62 mm
d3
71 mm
d4
96 mm
d5
93 mm
