Cathode Air Filter
ENTARON FC 13 High Efficiency Filter System - Variant 1
1461674S01
About this item
3,5 - 10 m³
Inlet Position: Vertical and horizontal postion possible
The adsorption of critical gases from the cathode air can cause irreversible damage to the catalyst of fuel cells that leads to a loss of performance. The ENTARON FC cathode air cleaner extends the service life of the fuel cell system by reliably protecting the catalyst from these gases. It also protects the system from channel blocking and wear by separating particles from the cathode air.
Compact Housing Concept
Tool-less and easy service due to color-coded comfort fasteners
Flexible configuration of the raw air inlet and freely positionable 90 degree elbows, with integrated MAF connection on request
Simple Installation by integrated brackets on the housing with through-holes or threaded inserts
Product highlights and benefits
-
Ready for pick-up in: 4 - 6 weeks. Subject to prior sale.
-
Maximum Order Quantity 10 parts
-
Enhanced gas adsorption
-
Tool-less and easy service due to color-coded comfort fasteners
-
Flexible configuration of the raw air inlet and freely positionable 90 degree elbows, with integrated MAF connection on request
-
Simple Installation by integrated brackets on the housing with through-holes or threaded inserts

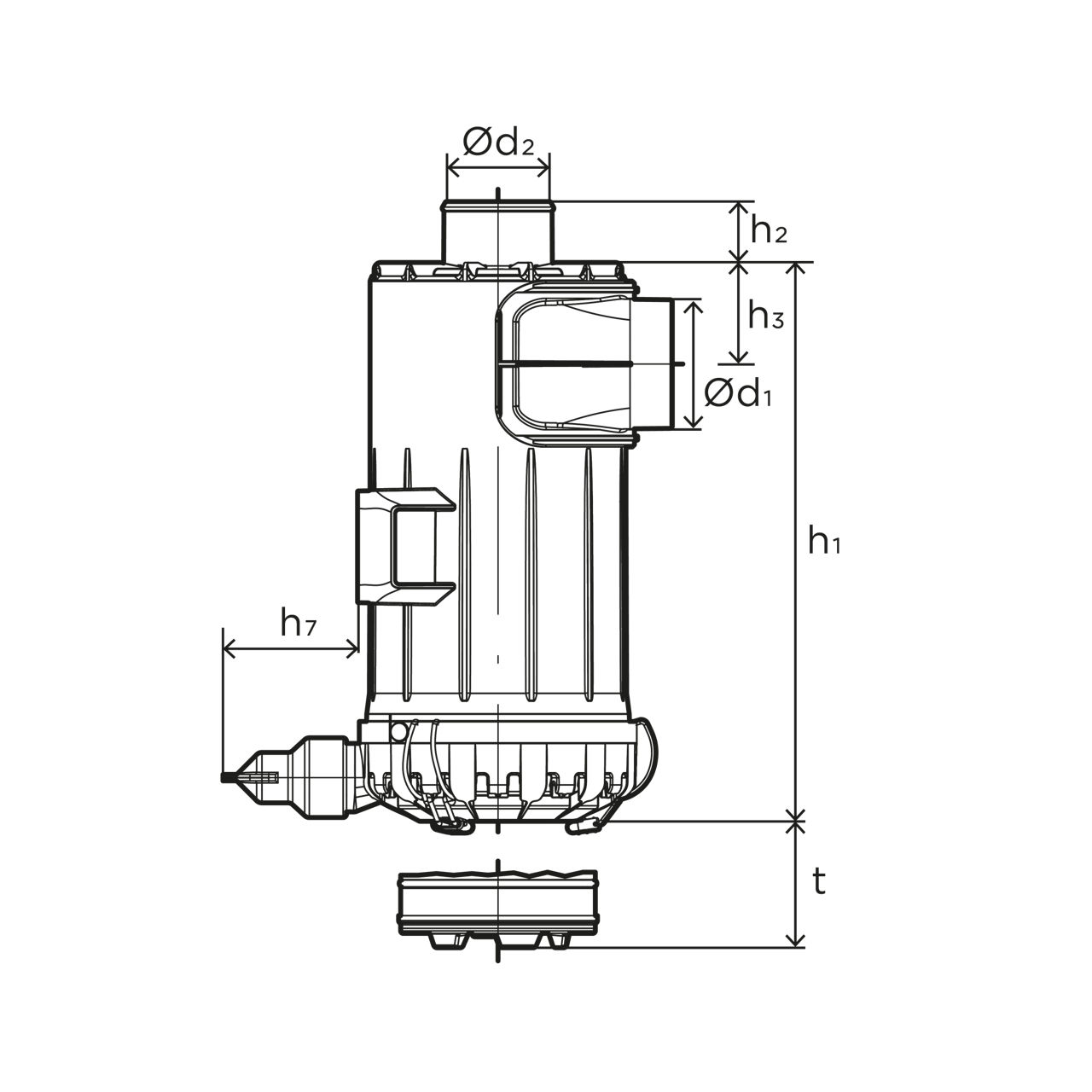

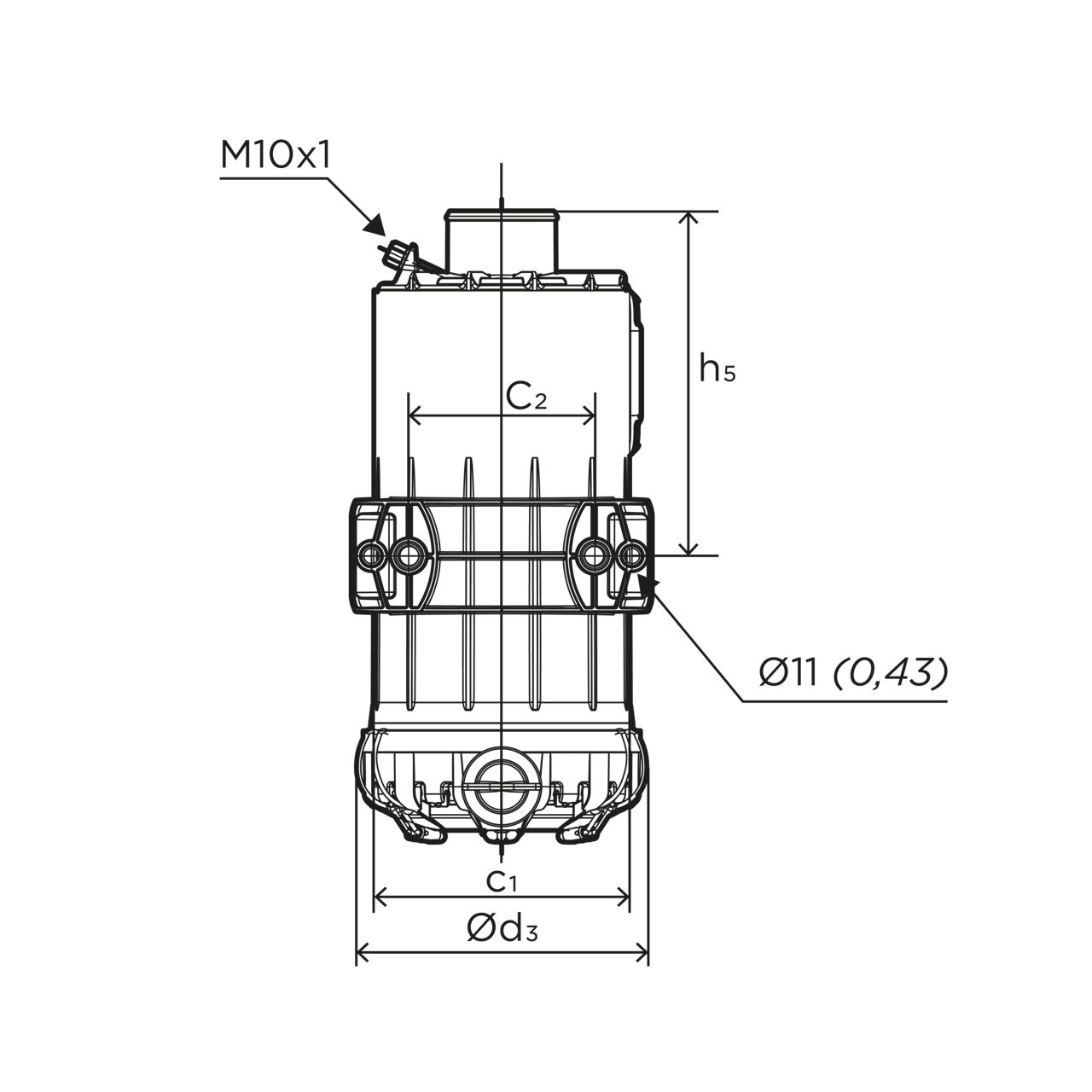

| Data | Value |
|---|---|
| Inlet position | Vertical and horizontal postion possible |
b
290.6 mm
b1
45.5 mm
c1
262 mm
c2
204 mm
d1
150 mm
d2
110 mm
d3
278 mm
h1
414 mm
h2
37 mm
h3
97 mm
h4
166 mm
h5
258 mm
h6
40 mm
h7
90 mm
t
385 mm
