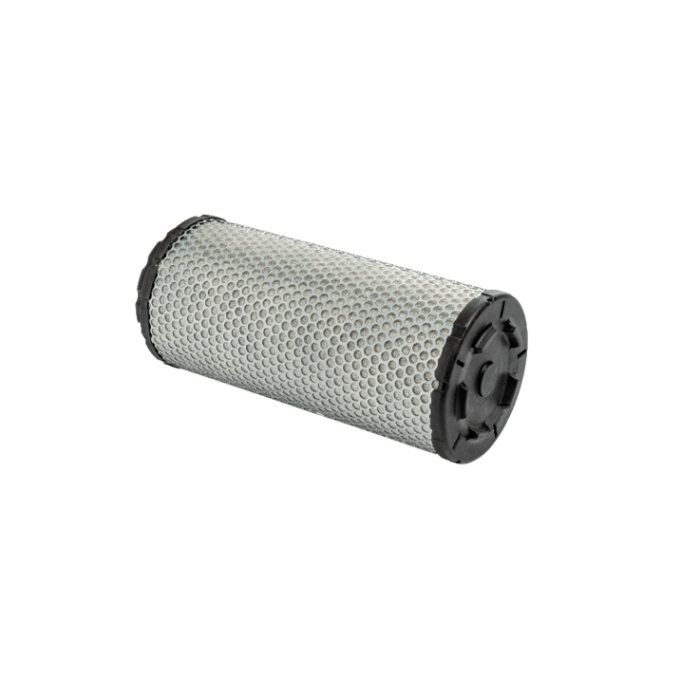

Cathode Air Filter
ENTARON FC 7.5 Filter System - Variant 3
1396036S01
About this item
2 - 6 m³
Inlet Position: Vertical and horizontal postion possible
The adsorption of critical gases from the cathode air can cause irreversible damage to the catalyst of fuel cells that leads to a loss of performance. The ENTARON FC cathode air cleaner extends the service life of the fuel cell system by reliably protecting the catalyst from these gases. It also protects the system from channel blocking and wear by separating particles from the cathode air. Compact Housing Concept Tool-less and easy service due to color-coded comfort fasteners Flexible configuration of the raw air inlet and freely positionable 90 degree elbows, with integrated MAF connection on request Simple Installation by integrated brackets on the housing with through-holes or threaded inserts

Product highlights and benefits

  • Ready for pick-up in: 4 - 6 weeks. Subject to prior sale.
  • Maximum Order Quantity 10 parts
  • Enhanced gas adsorption
  • Tool-less and easy service due to color-coded comfort fasteners
  • Flexible configuration of the raw air inlet and freely positionable 90 degree elbows, with integrated MAF connection on request
  • Simple Installation by integrated brackets on the housing with through-holes or threaded inserts

Data Value
Filter media material OE PES
Inlet angle (°) 0.00
Inlet position Vertical and horizontal postion possible
Product length 359 mm
Product width 216 mm
Product height 216 mm

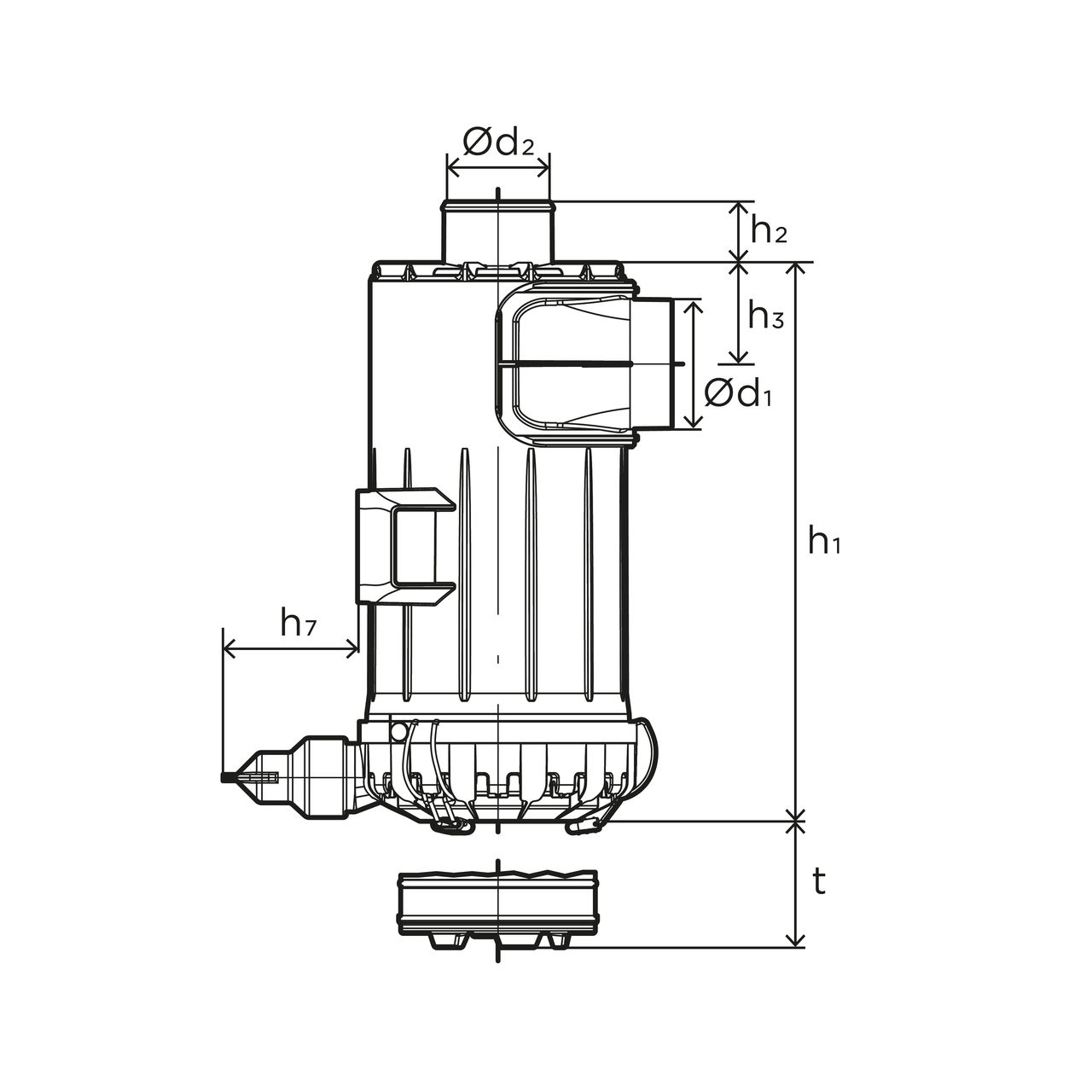

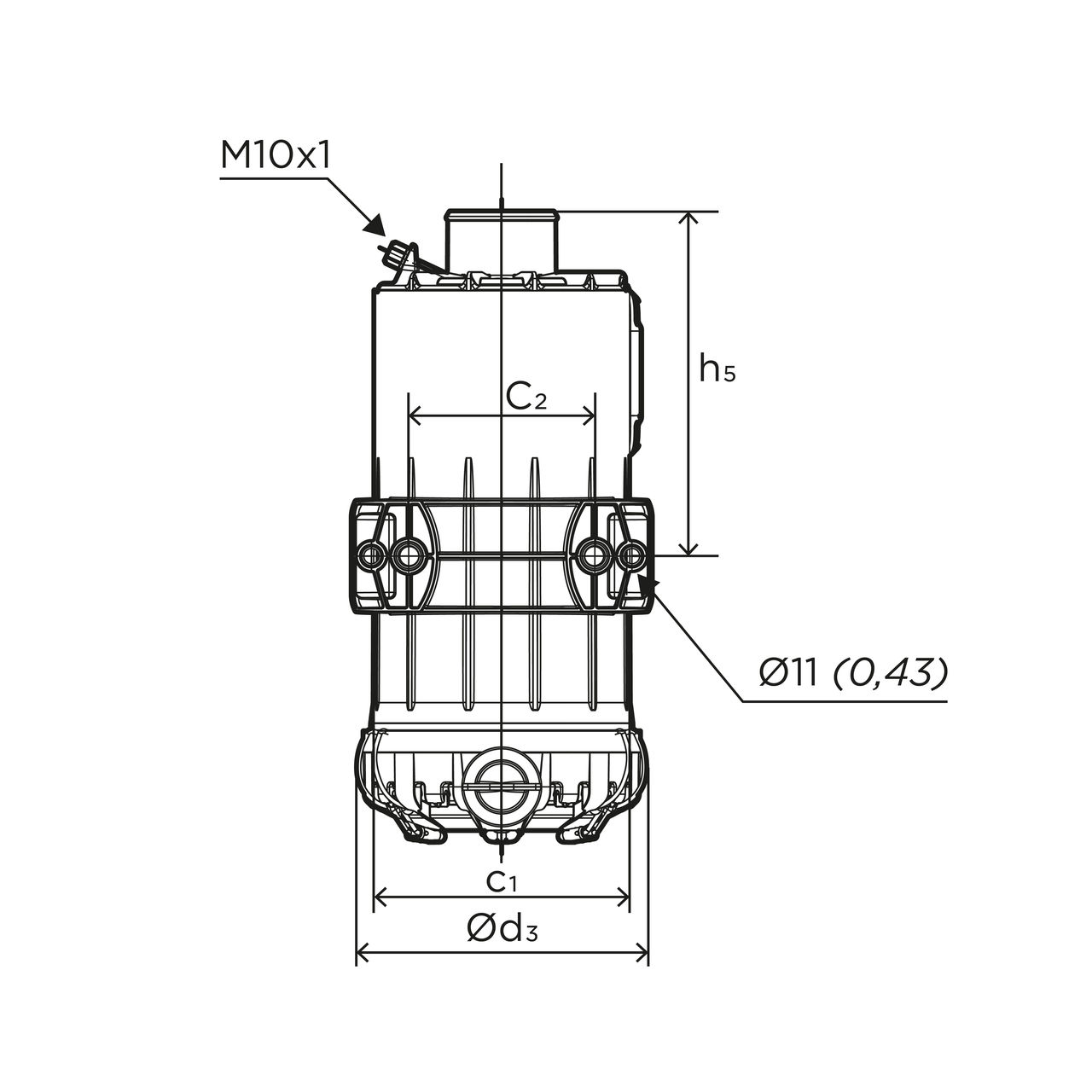

b
230 mm
b1
46 mm
c1
190 mm
c2
127 mm
d1
102 mm
d2
89 mm
d3
216 mm
h1
395 mm
h2
36 mm
h3
74 mm
h4
131 mm
h5
221 mm
h7
80 mm
t
330 mm
