ENTARON
ENTARON HD 10
4519192910
About this item
Nominal Flow Rate: 5-10 m³/min
Type of Operation: Two-Stage
Inlet Position: LEFT

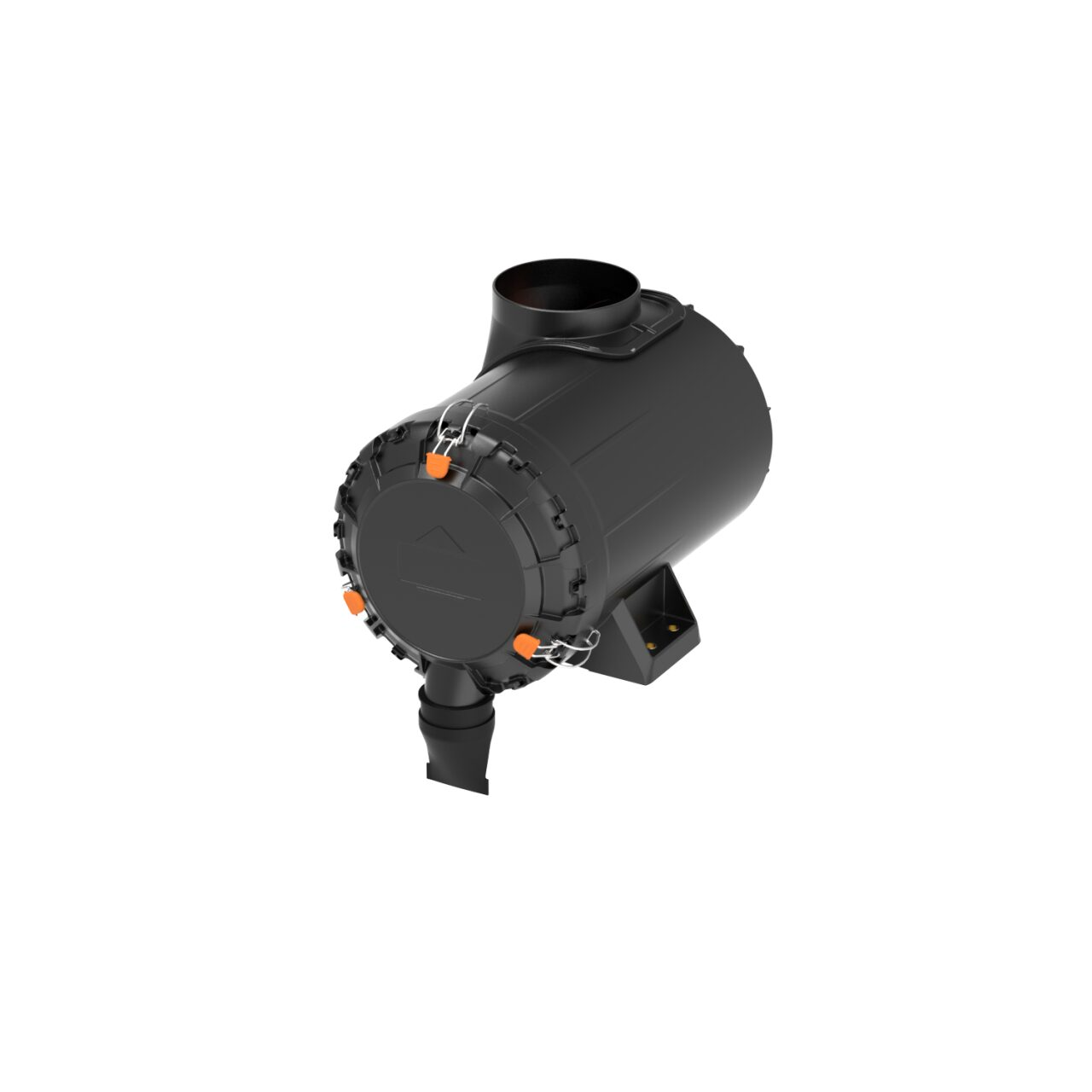

The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 22.5 mbar |
| Filtration efficiency (%) | 468001 |
| Pre separation efficiency (%) | >89% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Secondary element included | 1 |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø52mm (Ø54mm) |
| Tightening torque (threaded insert) | 25 N |
| Connection diameter inlet | 130 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | LEFT |
| OE design | 467842 |
| Type of operation | 9157 |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Product length | 385 mm |
| Product width | 244 mm |
| Product height | 244 mm |
| Gross weight single pack | 4 kg |
| Elbow included | 0 |
| Housing material | PP-T20 |
| Tightening torque (through hole) | 25 N |
| Tightening torque (clean side) | 5 N |
b1
51 mm
c1
240 mm
c2
182 mm
d1
130 mm
d2
102 mm
d3
244 mm
h1
385 mm
h2
36 mm
h3
85.5 mm
h4
143 mm
h5
236 mm
h6
40 mm
h7
90 mm
