ENTARON

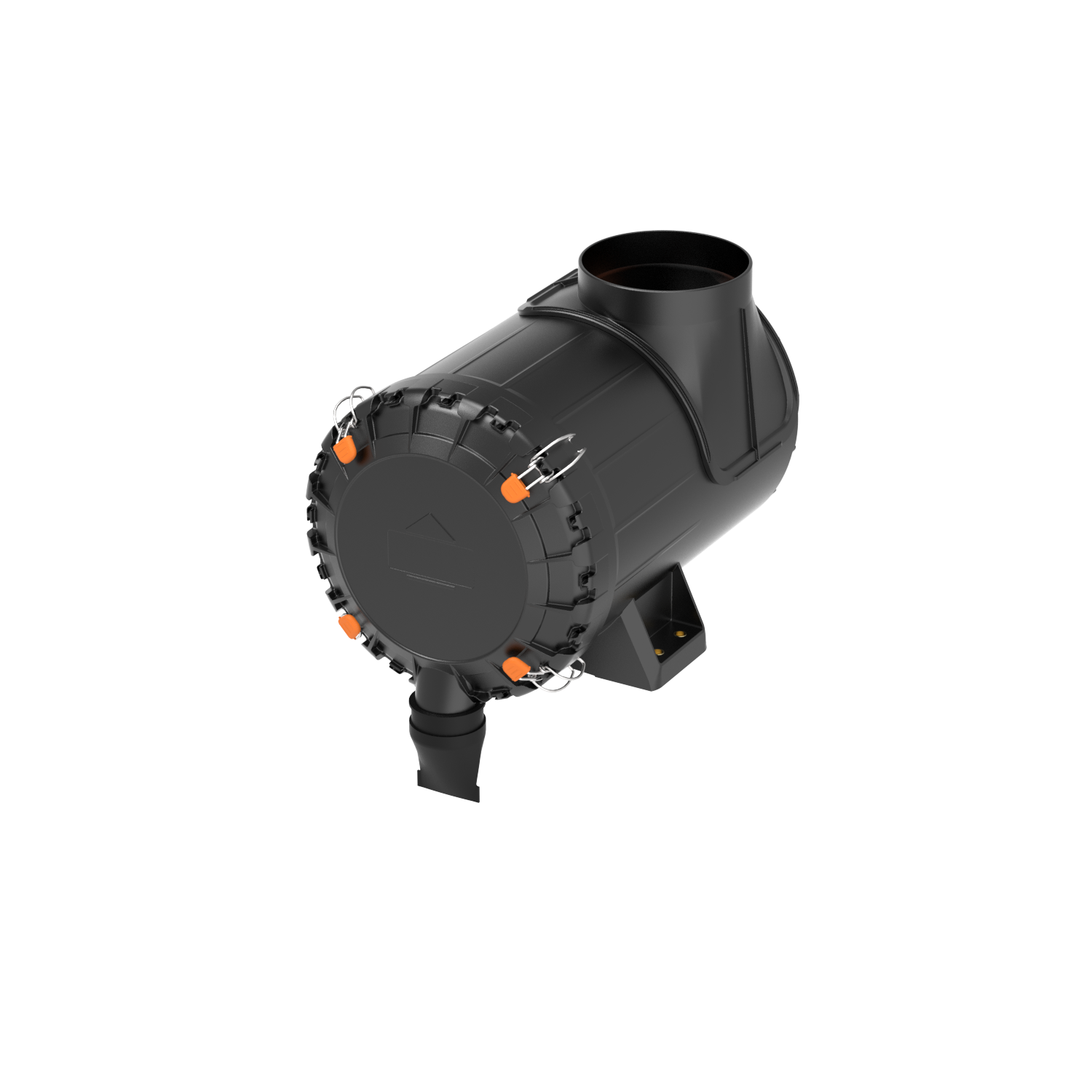

ENTARON HD 13
4523292910
About this item
Nominal Flow Rate: 7.5-13 m³/min
Type of Operation: Two-Stage
Inlet Position: RIGHT
The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 25.9 mbar |
| Filtration efficiency (%) | 468001 |
| Pre separation efficiency | >89% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Secondary element included | 1 |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø52mm (Ø54mm) |
| Tightening torque (threaded insert)/(Nm) | 25 N |
| Connection diameter inlet (mm) | 150 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | RIGHT |
| OE design | 467842 |
| Type of operation | 9157 |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Clip position 4 | 14 |
| Product length | 414 mm |
| Product width | 278 mm |
| Product height | 278 mm |
| Gross weight single pack (g) | 3.84 kg |
| Elbow included | 0 |
| Housing material | PP-T20 |
| Tightening torque (through hole) (NM) | 25 N |
| Tightening torque (clean side)/(Nm) | 5 N |
b1
45.5 mm
c1
262 mm
c2 (mm)
204 mm
d1
150 mm
d2
110 mm
d3
278 mm
h1 (mm)
414 mm
h2
37 mm
h3
97 mm
h4
166 mm
h5
258 mm
h6
40 mm
h7
90 mm
