B2B Shop
ENTARON

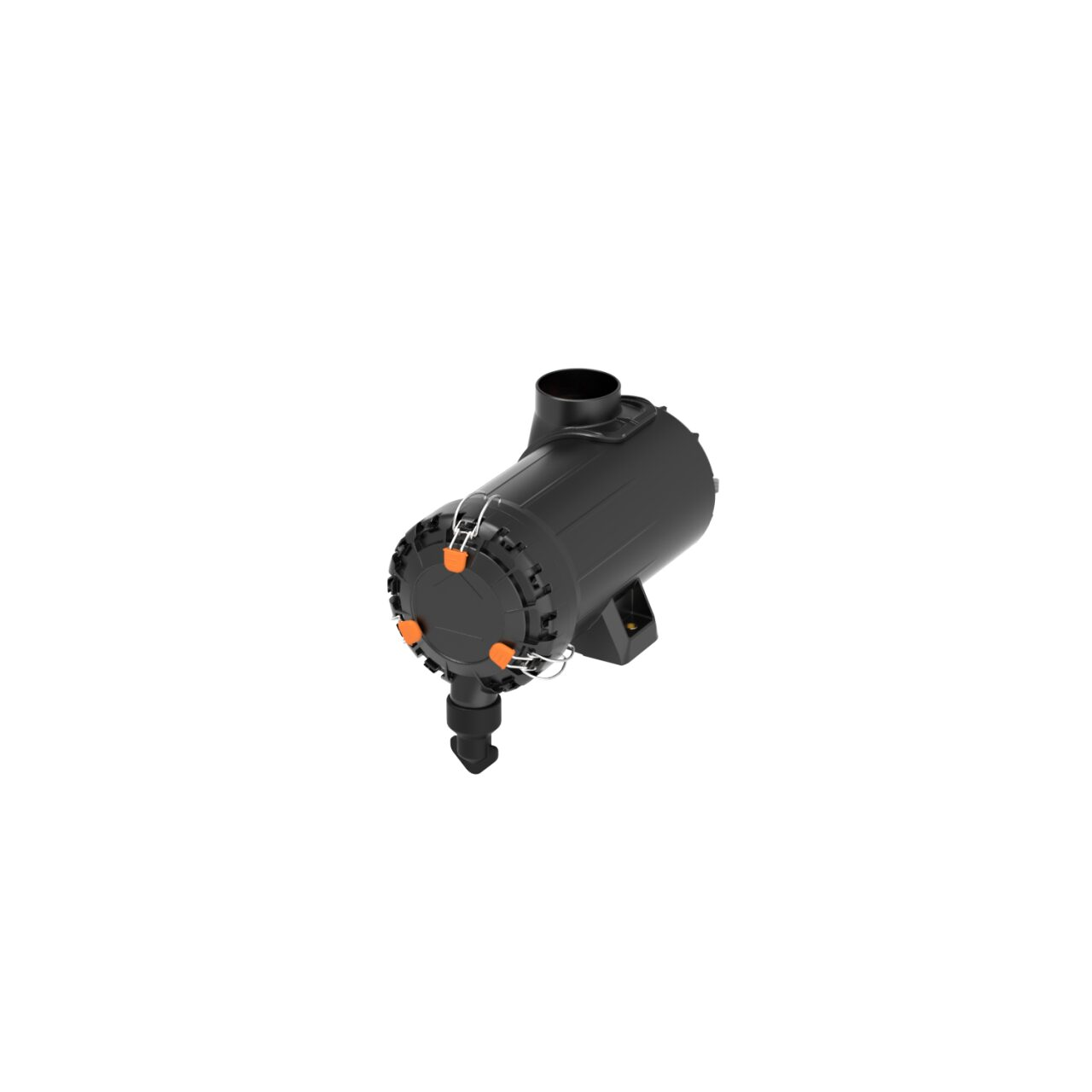

ENTARON HD 4
4513192910
About this item
Nominal Flow Rate: 2-4 m³/min
Type of Operation: Two-Stage
Inlet Position: LEFT
The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 26.6 mbar |
| Filtration efficiency (%) | 468001 |
| Pre separation efficiency (%) | >89% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Secondary element included | 1 |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø37,5mm (Ø40mm) |
| Tightening torque (threaded insert) | 25 N |
| Connection diameter inlet | 76 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | LEFT |
| OE design | 467842 |
| Type of operation | 9157 |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Product length | 330 mm |
| Product width | 164 mm |
| Product height | 164 mm |
| Gross weight single pack | 1.38 kg |
| Elbow included | 0 |
| Housing material | PP-T20 |
| Tightening torque (through hole) | 25 N |
| Tightening torque (clean side) | 5 N |
b1
375 mm
c1
154 mm
c2
110 mm
d1
76 mm
d2
64 mm
d3
164 mm
h1
330 mm
h2
36 mm
h3
60 mm
h4
103 mm
h5
204 mm
h7
80 mm
