ENTARON

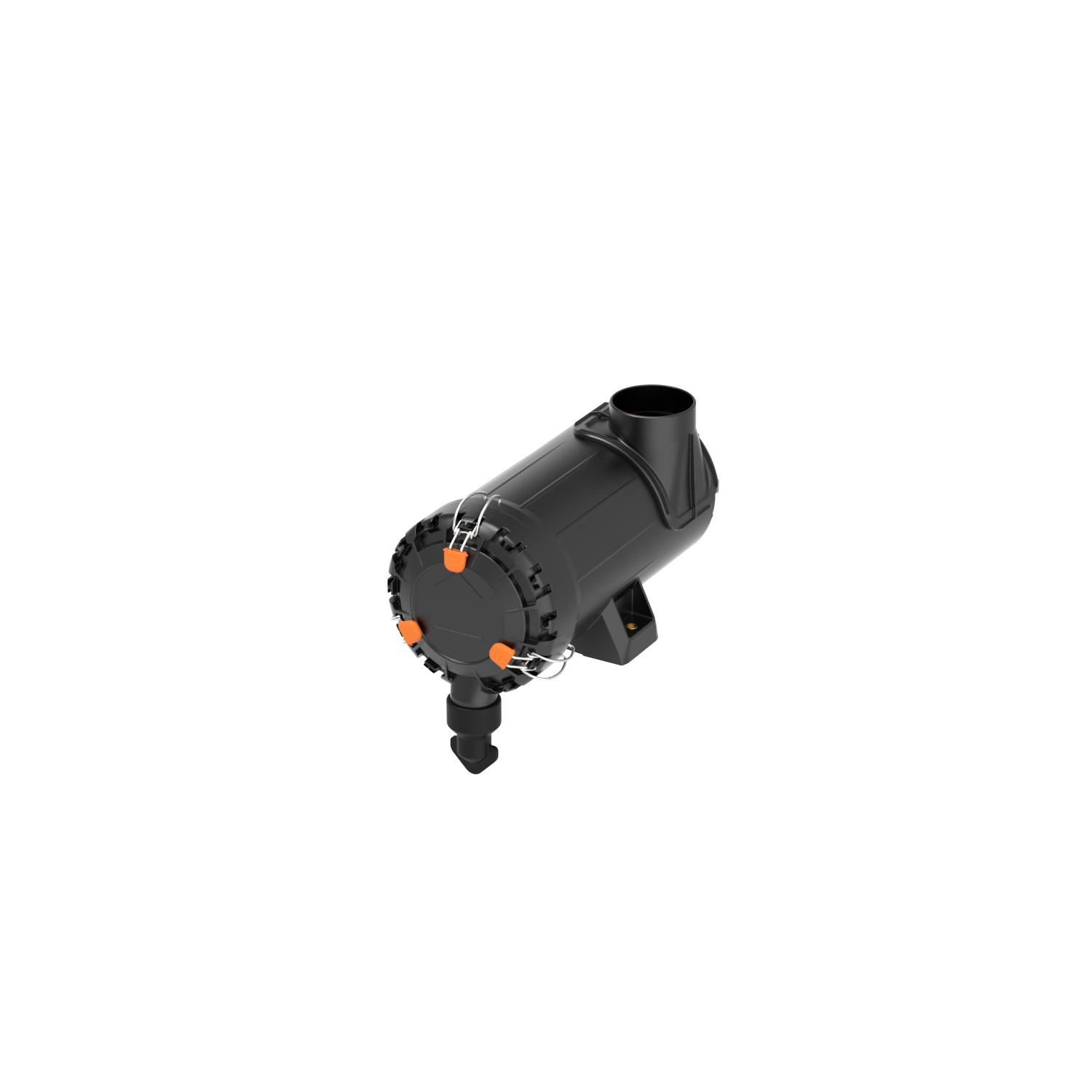

ENTARON HD 4
4513292910
About this item
Nominal Flow Rate: 2-4 m³/min
Type of Operation: Two-Stage
Inlet Position: RIGHT
The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 90 |
| Initial pressure drop | 31.6 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency (%) | 92% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Service switch connection | 0 |
| Secondary element included | Yes |
| Dust discharge diameter connection | 54 mm |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø37,5mm (Ø40mm) |
| Tightening torque (threaded insert) | 15 N |
| Connection diameter inlet | 76 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | RIGHT |
| Design (OE) | Round |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Product length | 330 mm |
| Product width | 164 mm |
| Product height | 164 mm |
| Gross weight single pack | 1.38 kg |
| Elbow included | No |
| Housing material | PP-GF30 |
| Tightening torque (through hole) | 23 N |
| Tightening torque (clean side) | 5 N |

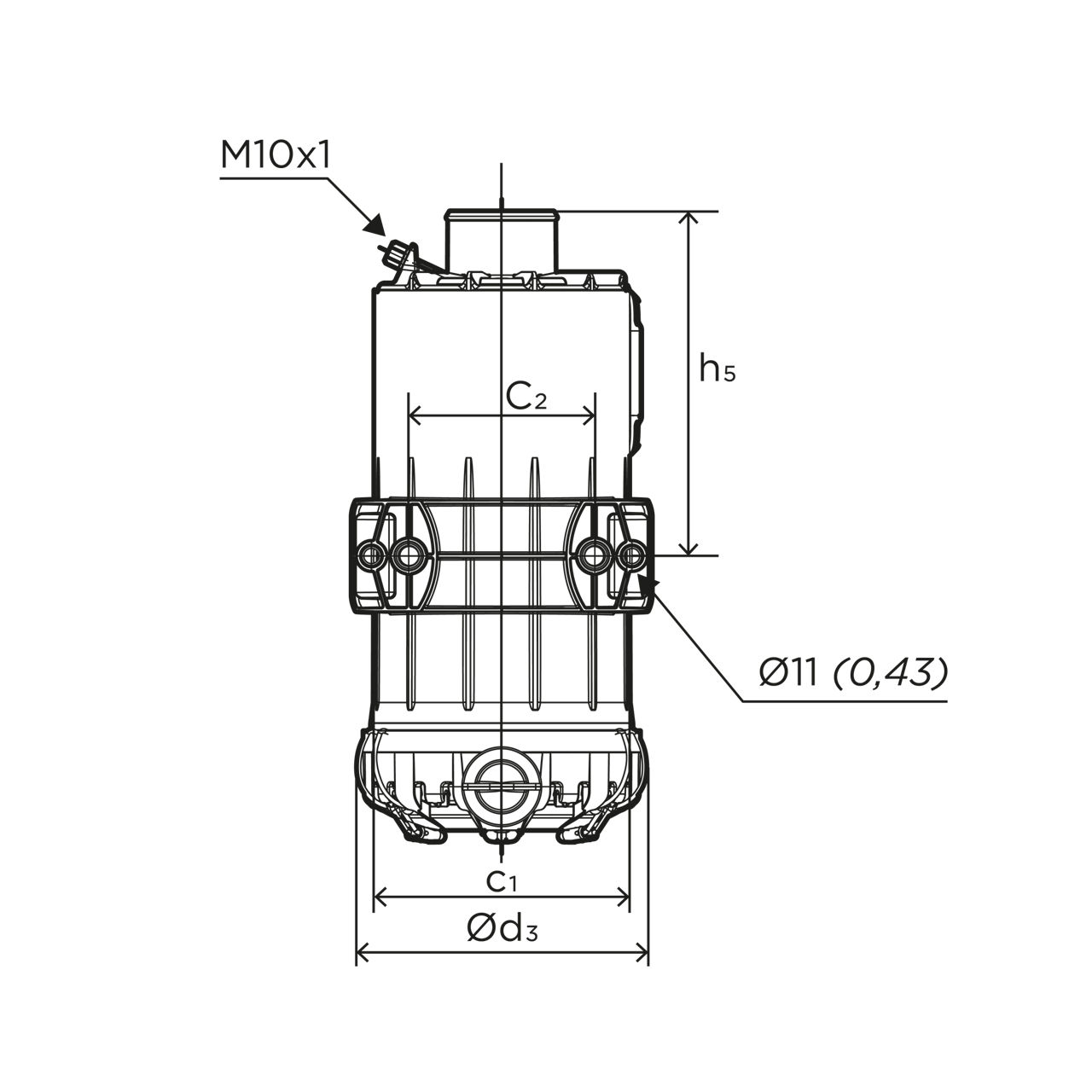

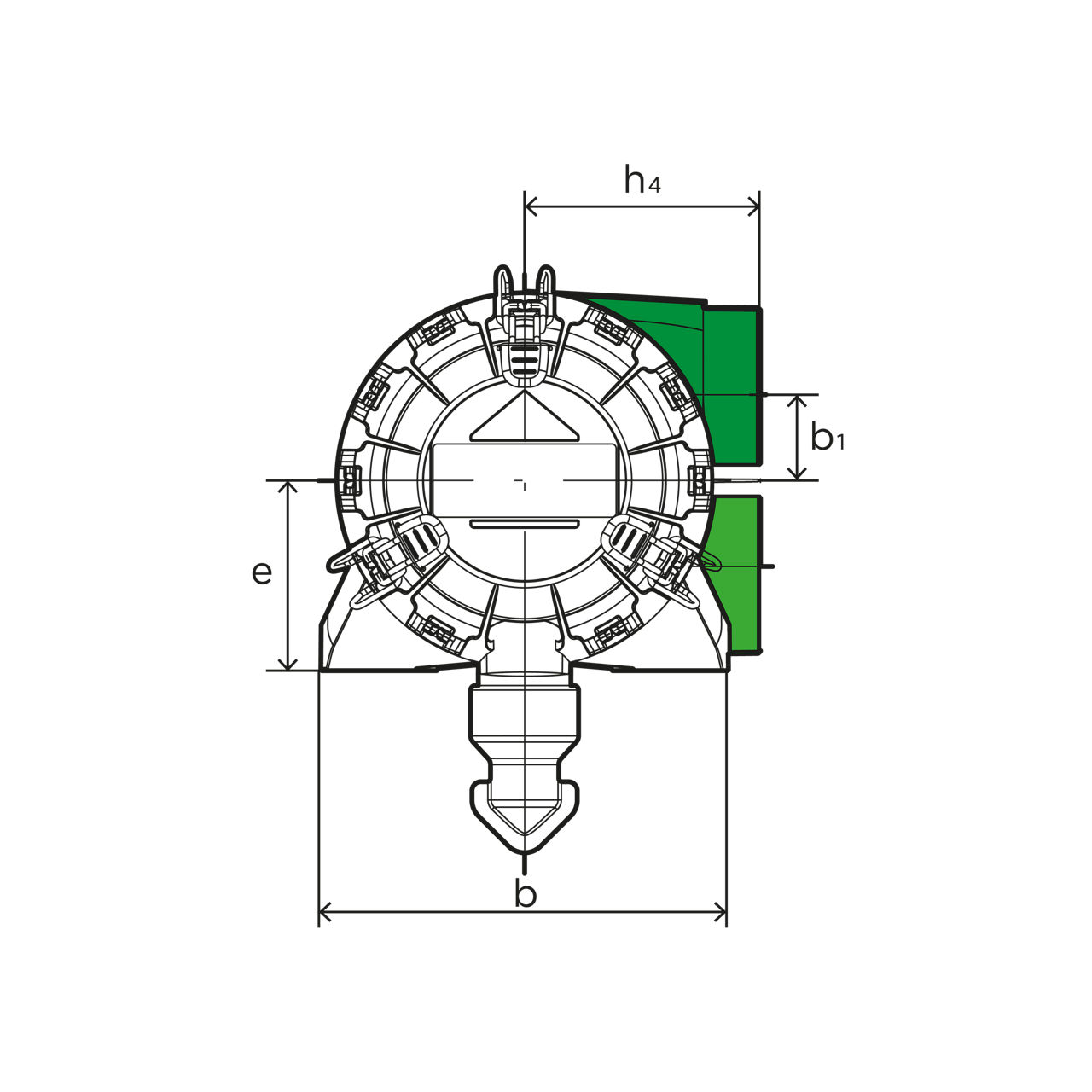

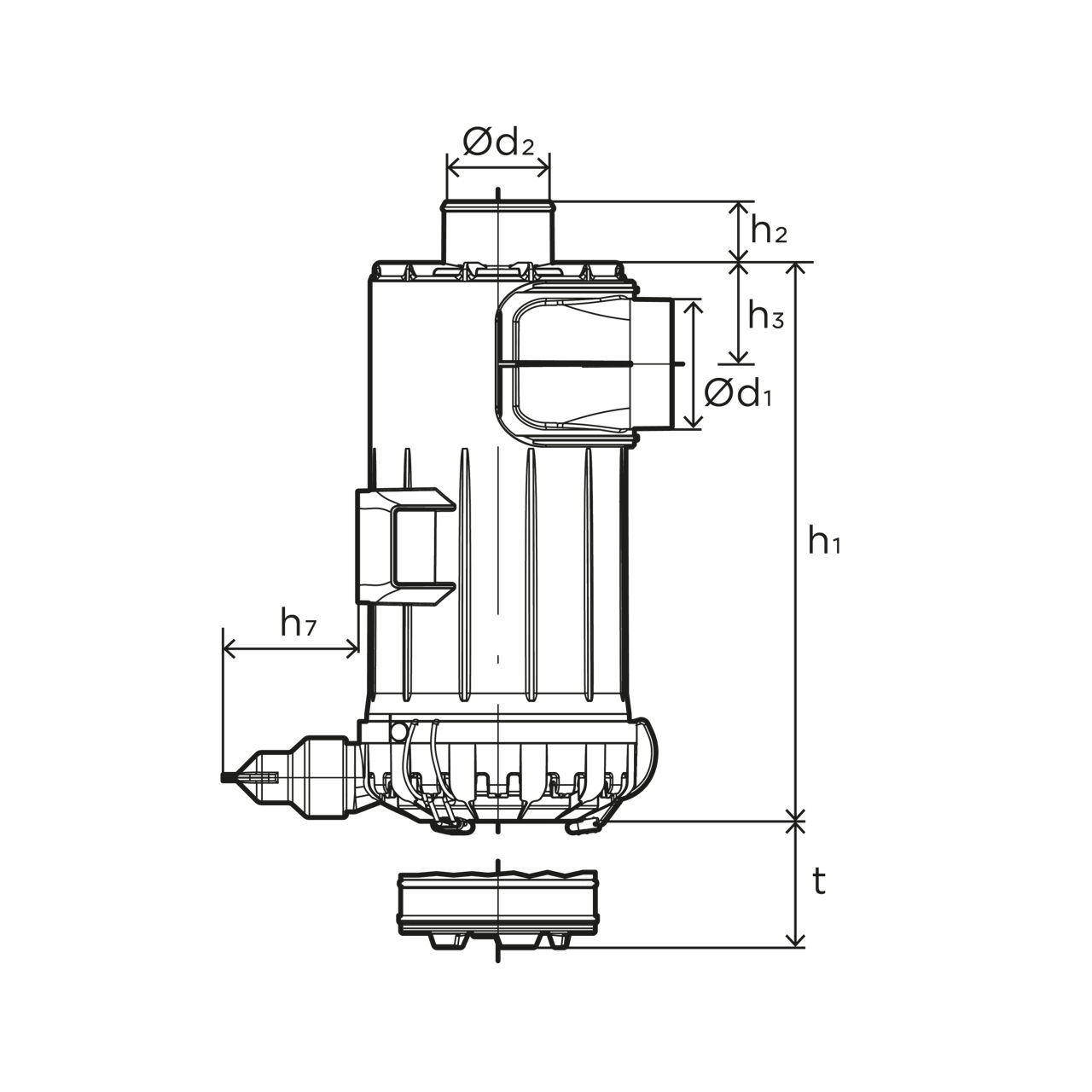

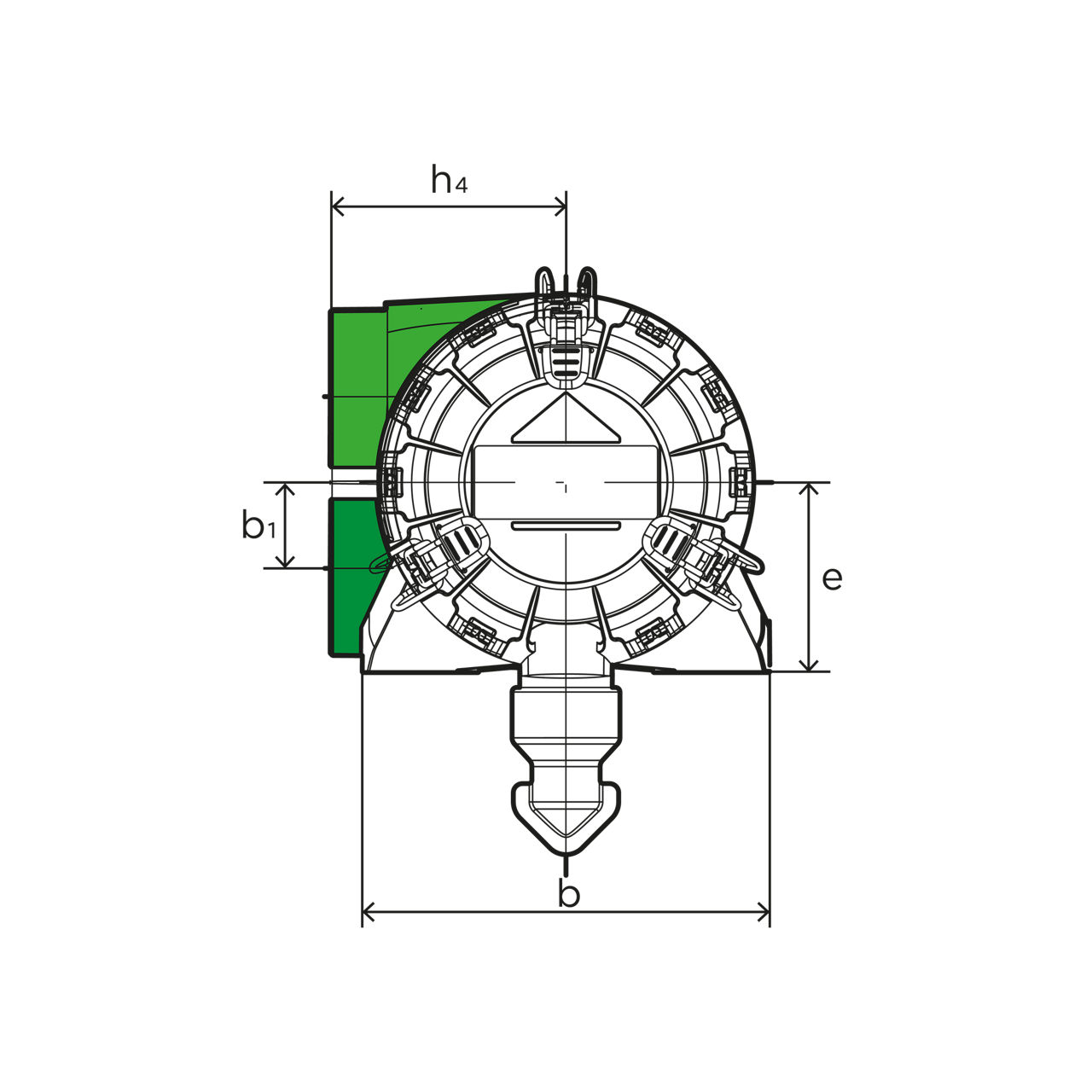

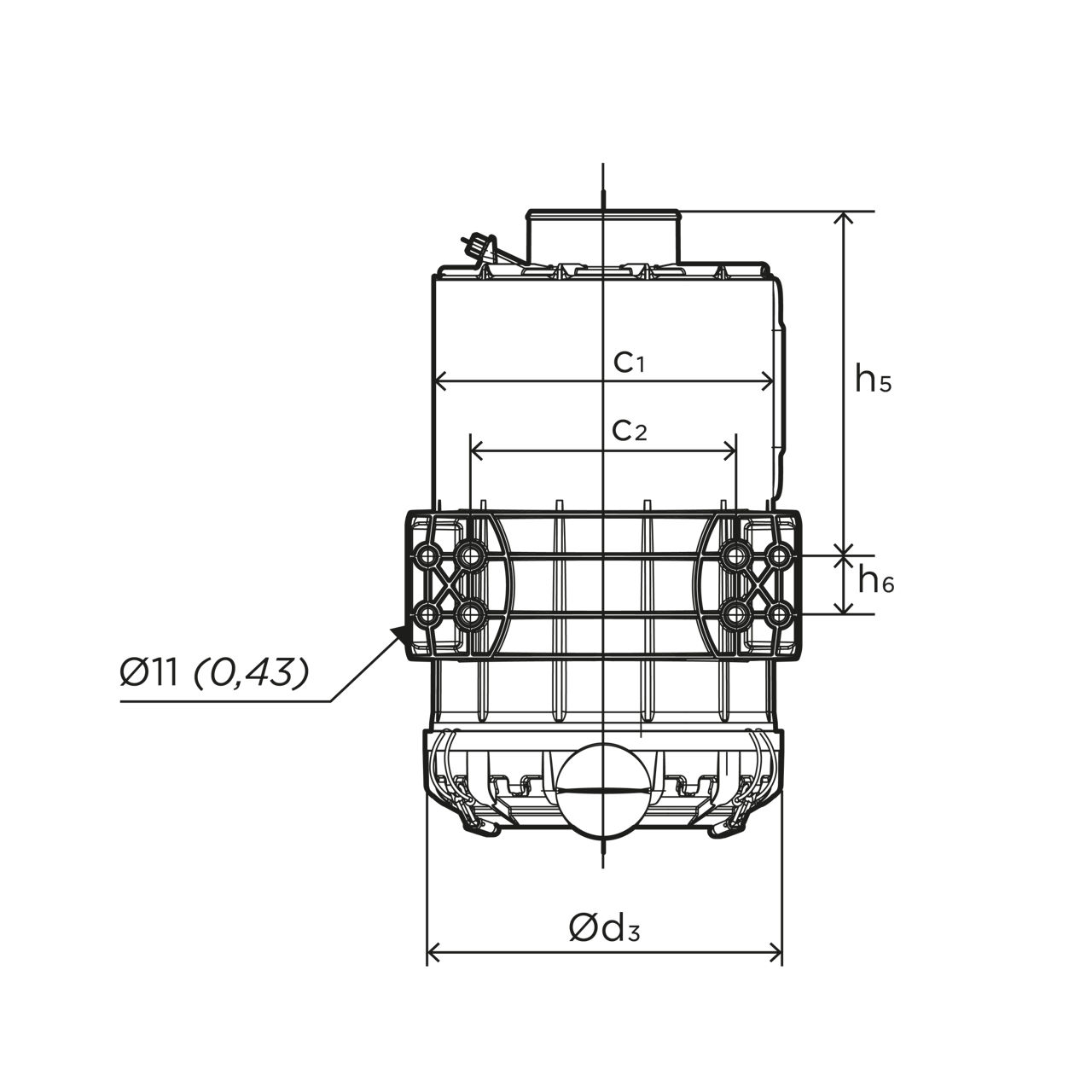

b
300.0000 mm
b1
79 mm
c1
263.3 mm
c2
175.3 mm
d1
130 mm
d2
110 mm
d3
305.7 mm
h1
422.9 mm
h2
45 mm
h3
72.8 mm
h4
186.5 mm
h5
218.4 mm
h6
136.8 mm
h7
85.8 mm
t
MILLIMETER mm
