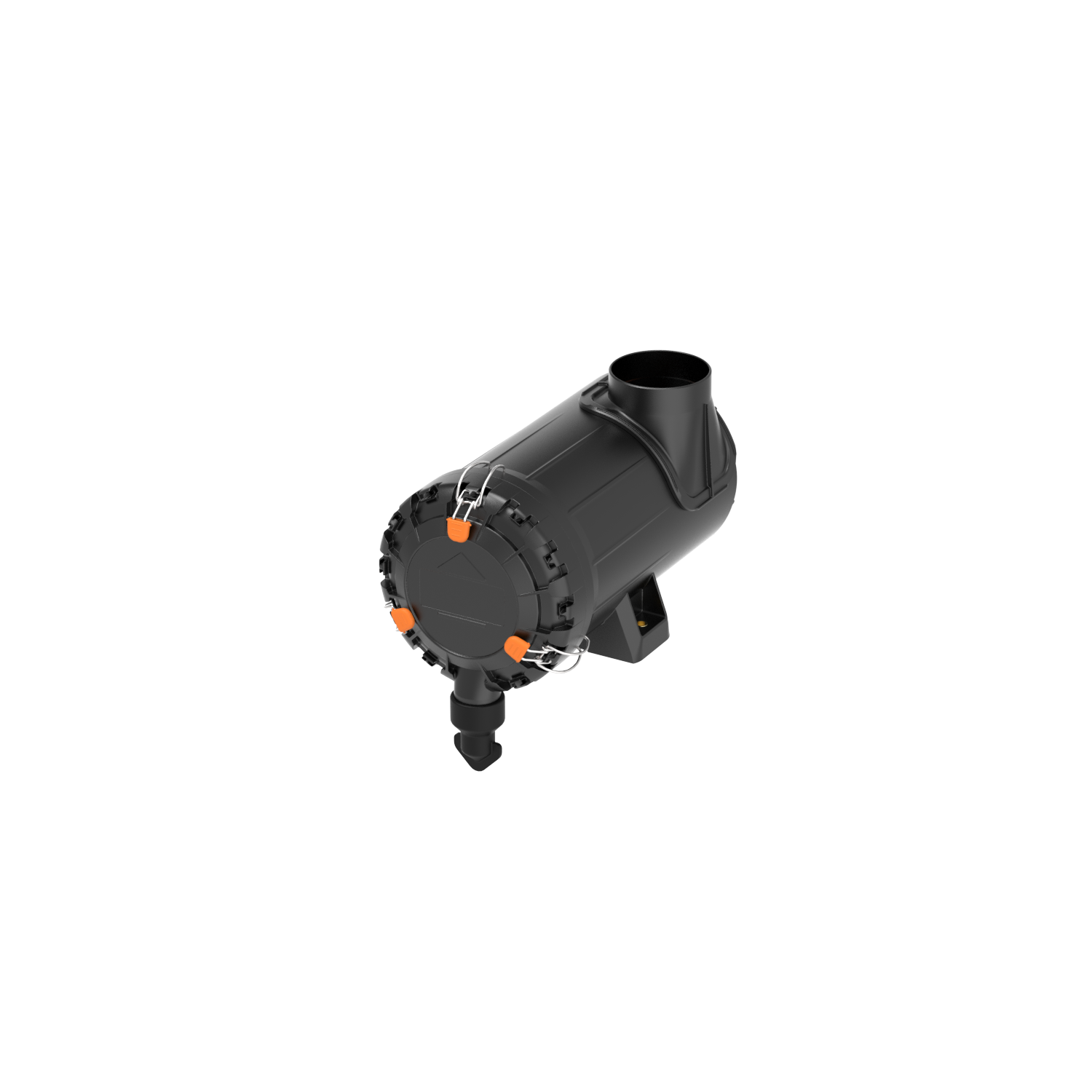

ENTARON HD 5.5
4515292910
About this item
Nominal Flow Rate: 3-5.5 m³/min
Type of Operation: Two-Stage
Inlet Position: RIGHT
The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 23.1 mbar |
| Filtration efficiency (%) | 468001 |
| Pre separation efficiency | >89% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Secondary element included | 1 |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø37,5mm (Ø40mm) |
| Tightening torque (threaded insert)/(Nm) | 25 N |
| Connection diameter inlet (mm) | 90 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | RIGHT |
| OE design | 467842 |
| Type of operation | 9157 |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Product length | 340 mm |
| Product width | 189 mm |
| Product height | 189 mm |
| Gross weight single pack (g) | 3 kg |
| Elbow included | 0 |
| Housing material | PP-T20 |
| Tightening torque (through hole) (NM) | 25 N |
| Tightening torque (clean side)/(Nm) | 5 N |

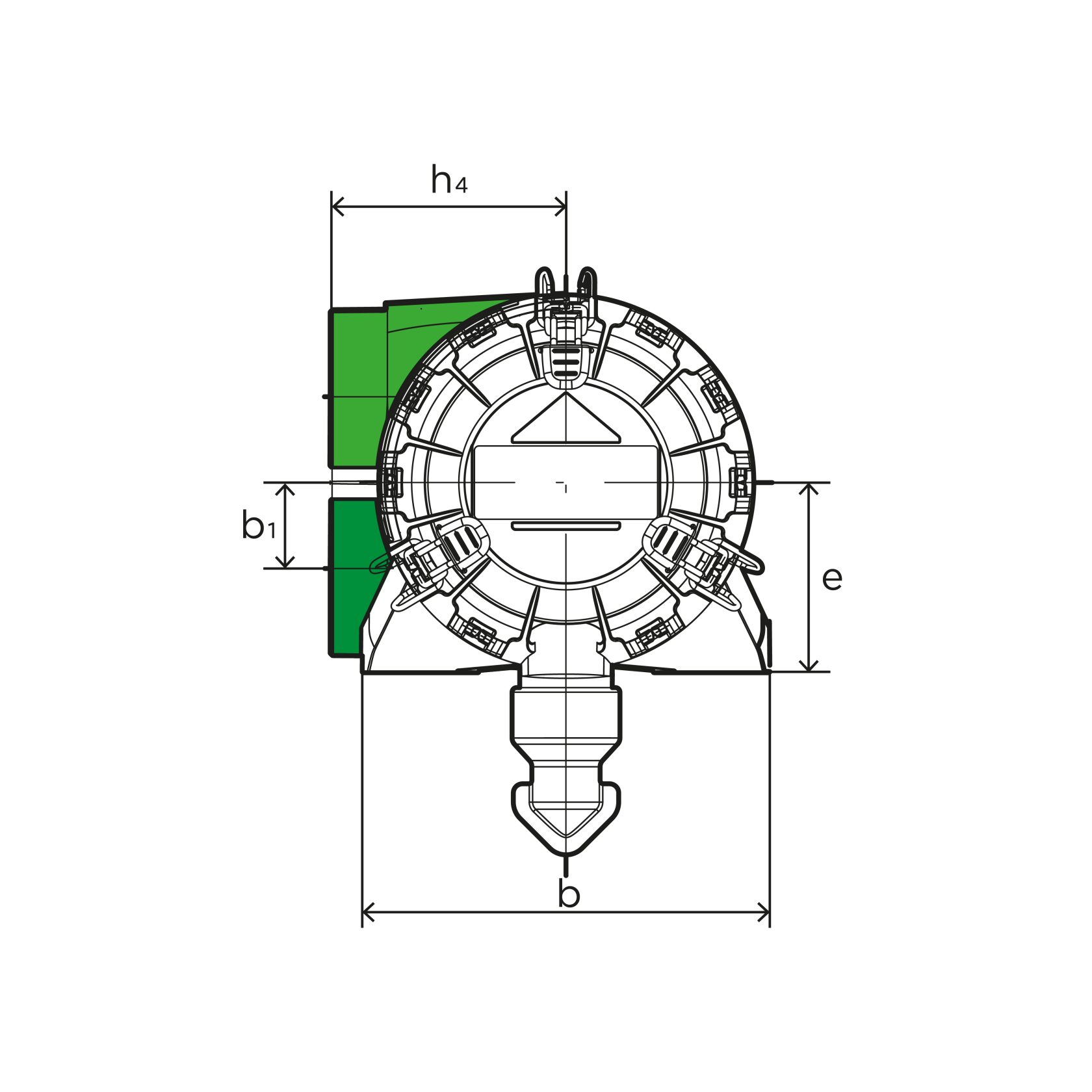

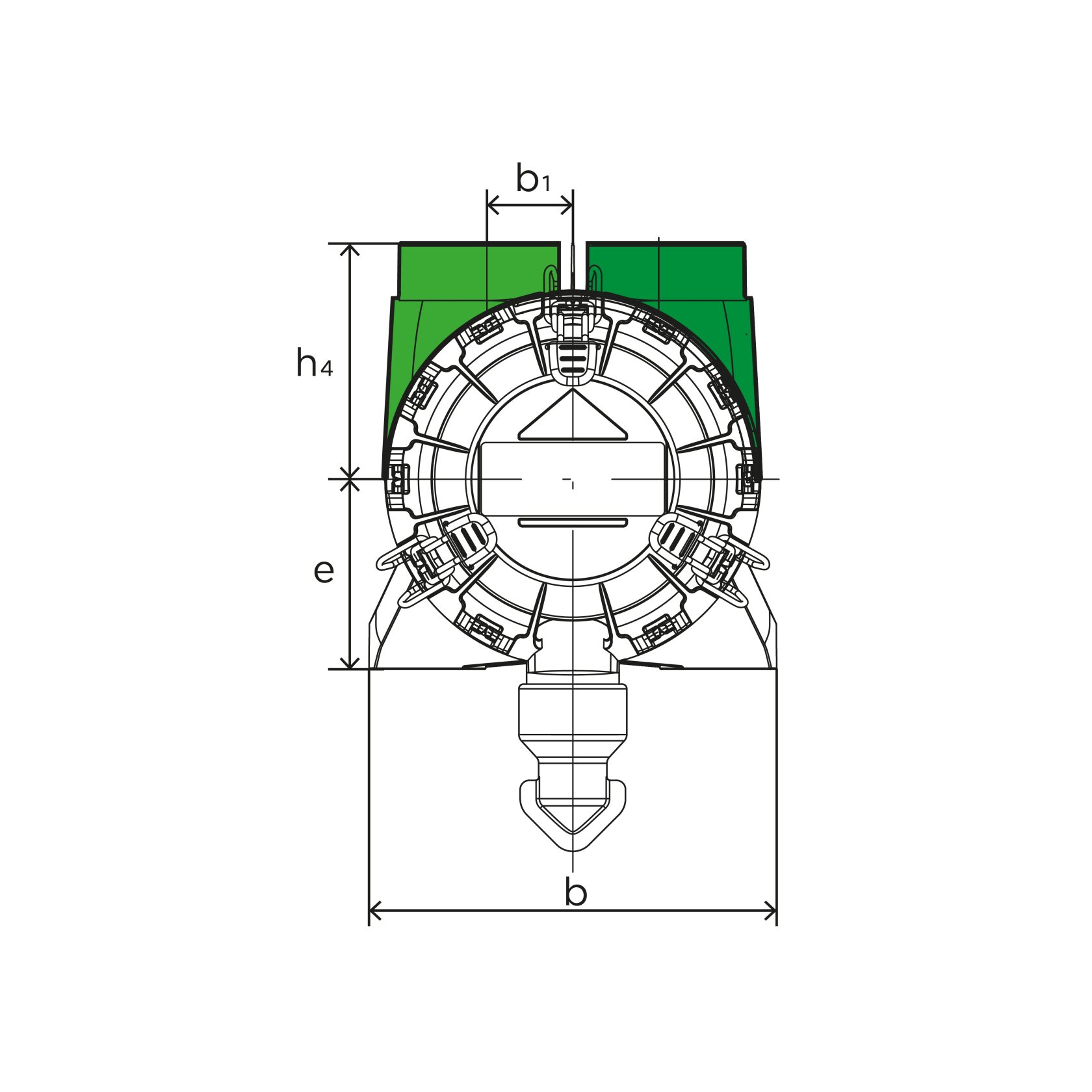

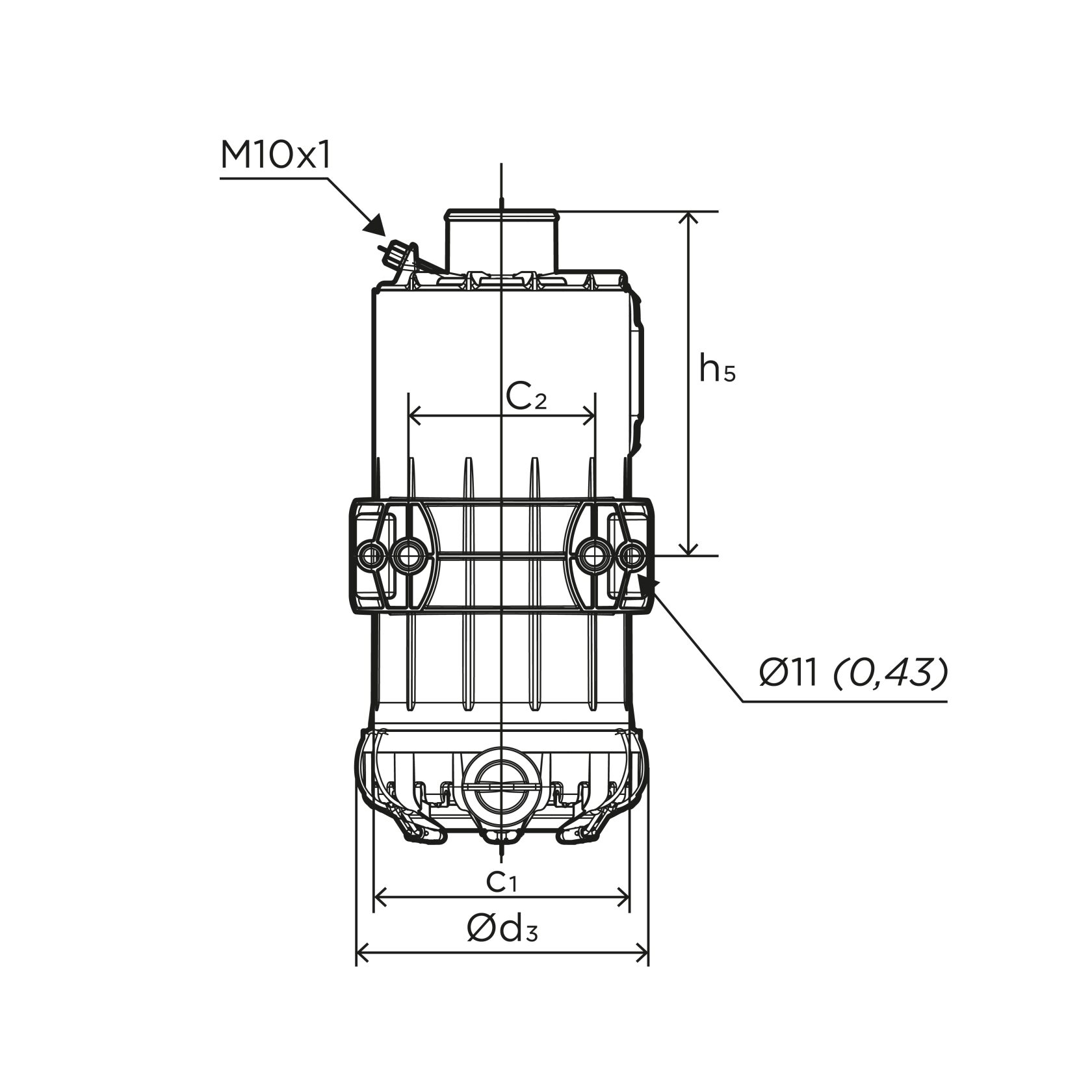

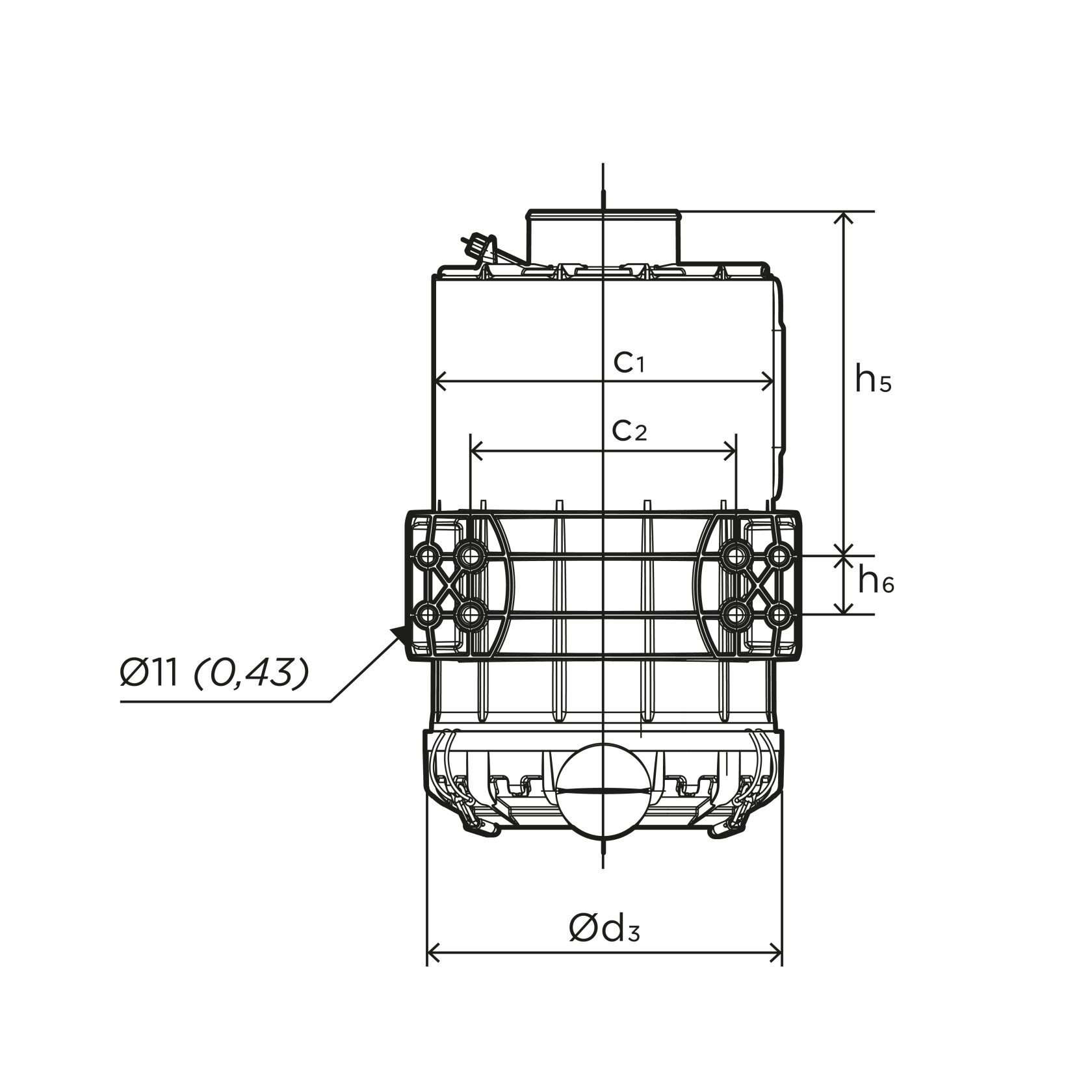

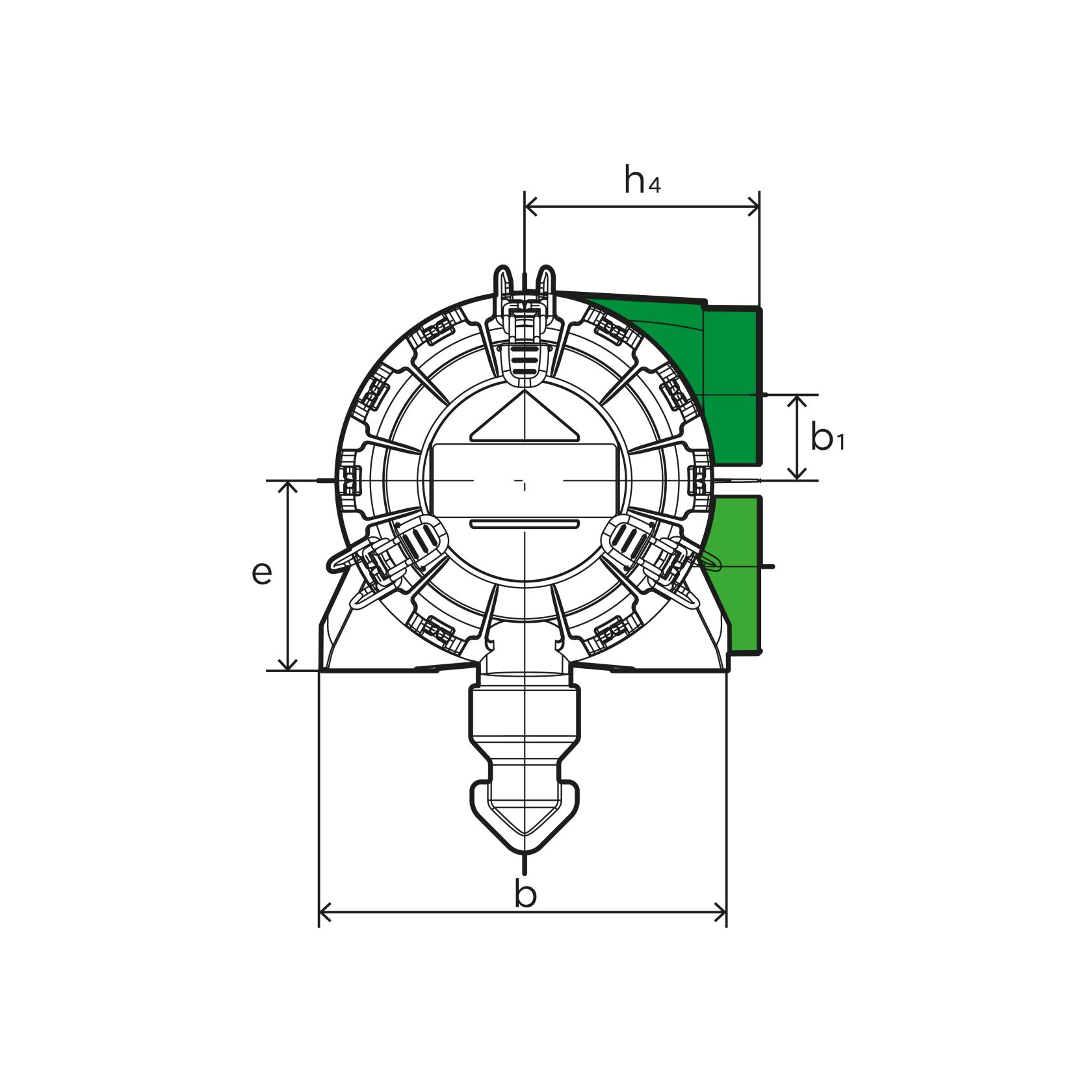

b1
40 mm
c1
165 mm
c2 (mm)
110 mm
d1
90 mm
d2
76 mm
d3
189 mm
h1 (mm)
340 mm
h2
36 mm
h3
68 mm
h4
118 mm
h5
212 mm
h7
80 mm
