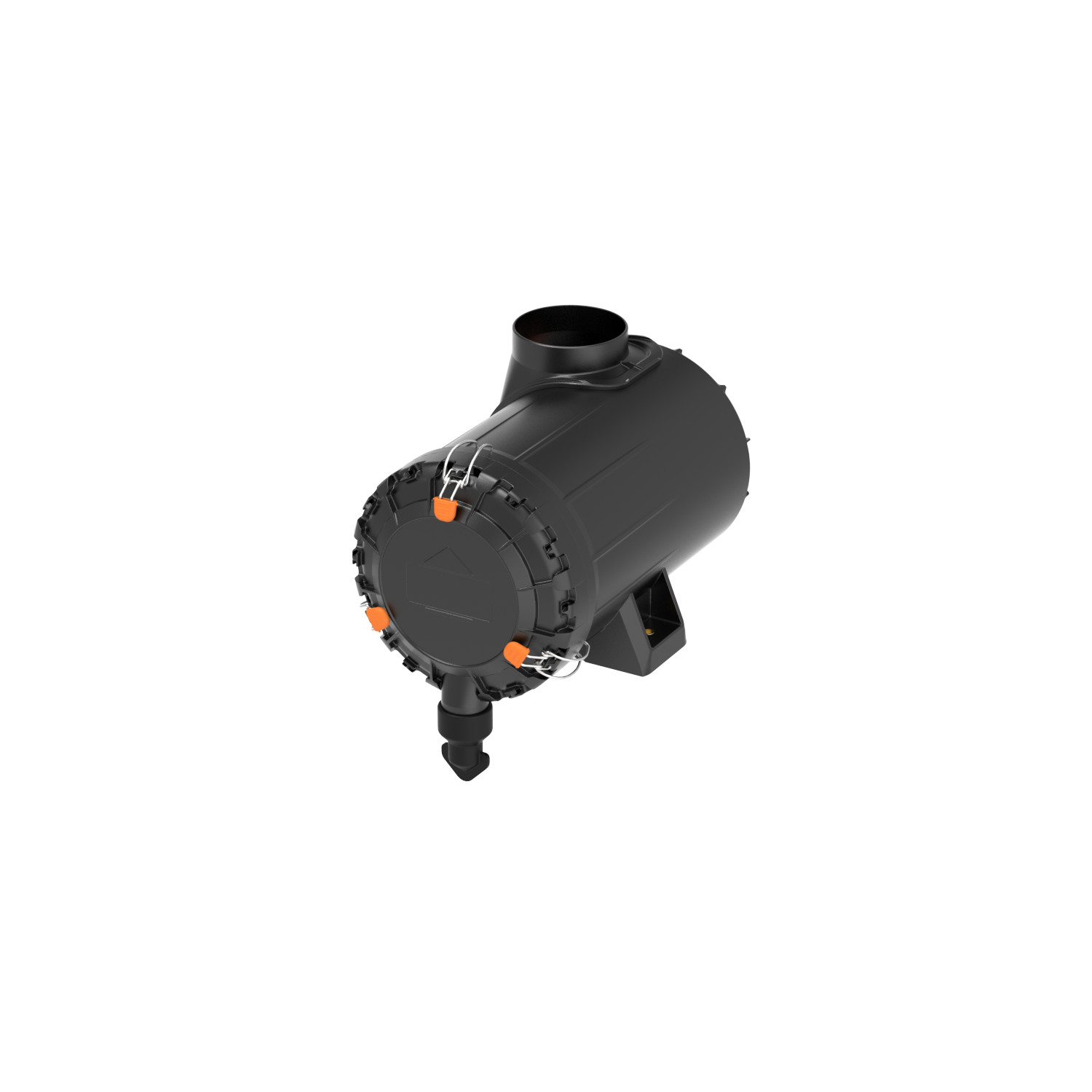

ENTARON HD 7.5
4517192910
About this item
Nominal Flow Rate: 4-7.5 m³/min
Type of Operation: Two-Stage
Inlet Position: LEFT
The compact ENTARON HD two-stage air cleaner is roughly one third smaller than comparable air cleaners with a similar filtration performance and is therefore one of the smallest air cleaners in its class.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 23.9 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency | >89% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Service switch connection | 0 |
| Secondary element included | Yes |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø37,5mm (Ø40mm) |
| Tightening torque (threaded insert)/(Nm) | 25 N |
| Connection diameter inlet (mm) | 102 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.00 |
| Mounting type standard | SLEEVE |
| Inlet position | LEFT |
| Design (OE) | Round |
| Type of operation | Two-Stage |
| Clip position 1 | 2 |
| Clip position 2 | 6 |
| Clip position 3 | 10 |
| Product length | 359 mm |
| Product width | 216 mm |
| Product height | 216 mm |
| Gross weight single pack | 0.65 kg |
| Elbow included | No |
| Housing material | PP-T20 |
| Tightening torque (through hole) (NM) | 25 N |
| Tightening torque (clean side)/(Nm) | 5 N |
b
230 mm
b1
46 mm
c1
190 mm
c2
127 mm
d1
102 mm
d2
89 mm
d3
216 mm
h1
360 mm
h2
36 mm
h3
74 mm
h4
131 mm
h5
221 mm
h7
80 mm
t
330 mm
