ENTARON MD 40
4593272960
About this item
Nominal Flow Rate: 20-40 m³/min
Type of Operation: Single-Stage

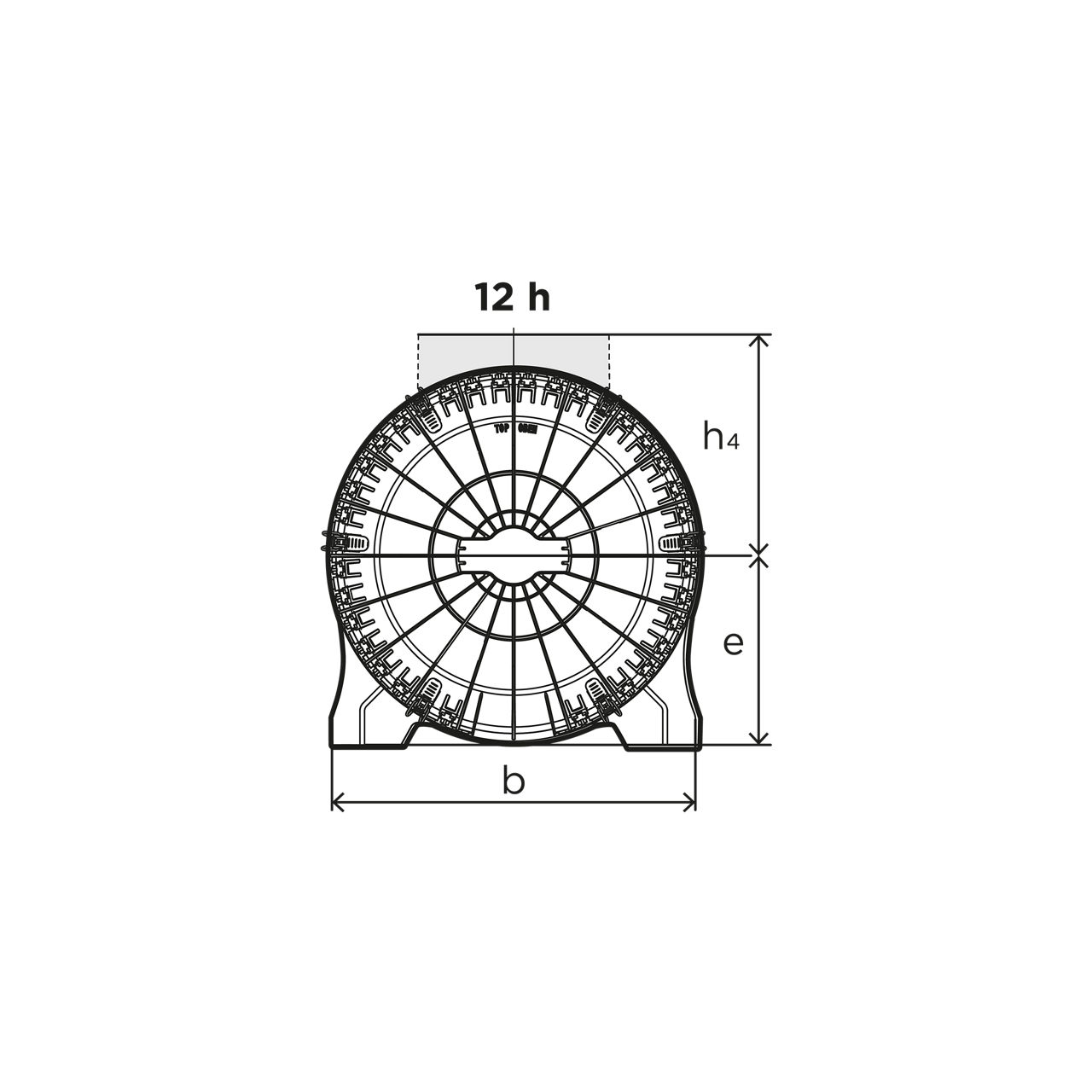

Inlet Position: 0° (12:00 POSITION)
The housings of the ENTARON MD are
equipped with reinforcement ribs and manufactured from
plastic reinforced with glass fiber. This has the advantage of
reducing weight by 10 percent in comparison to conventional
metal or hybrid air cleaners (combinations of metal and plastic).
As a result, the air cleaner is able to handle even extreme
mechanical requirements. At the same time the design offers
the advantage of resistance to corrosion.
Furthermore, the ENTARON MD series has a connection
for a service switch or service indicator integrated in the
housing and also integrated mounting possibilities with
through-holes (standard) and threaded inserts (on request)
to enable quick installation.
The filter elements of the ENTARON MD series are also
designed for the highest requirements.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine up to 30% smaller compared to other air filters of the comparable class
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 90 |
| Initial pressure drop | 17.7 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency | 92% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Service switch connection | 0 |
| Secondary element included | Yes |
| Tightening torque (threaded insert)/(Nm) | 15 N |
| Connection diameter inlet (mm) | 250 mm |
| Elbow type | NO |
| Mounting type standard | SLEEVE |
| Inlet position | 0° (12:00 POSITION) |
| Design (OE) | Round |
| Type of operation | Single-Stage |
| Clip position 1 | 2 |
| Clip position 2 | 9 |
| Clip position 3 | 15 |
| Clip position 4 | 22 |
| Clip position 5 | 28 |
| Clip position 6 | 35 |
| Product length | 638.4 mm |
| Product width | 486 mm |
| Product height | 486 mm |
| Gross weight single pack | 18.06 kg |
| Elbow included | No |
| Housing material | PP-GF30 |
| Tightening torque (through hole) (NM) | 23 N |
| Tightening torque (clean side)/(Nm) | 5 N |

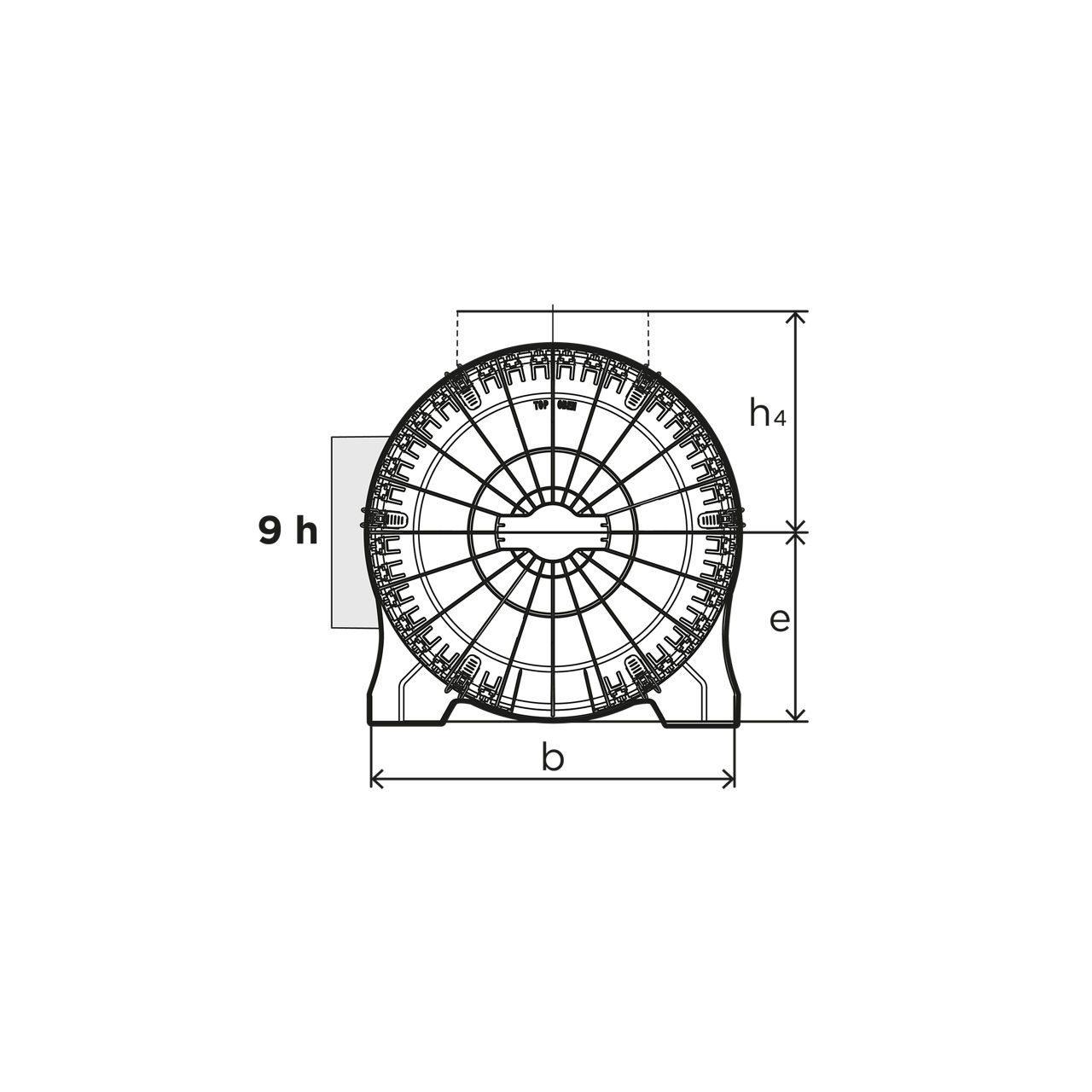

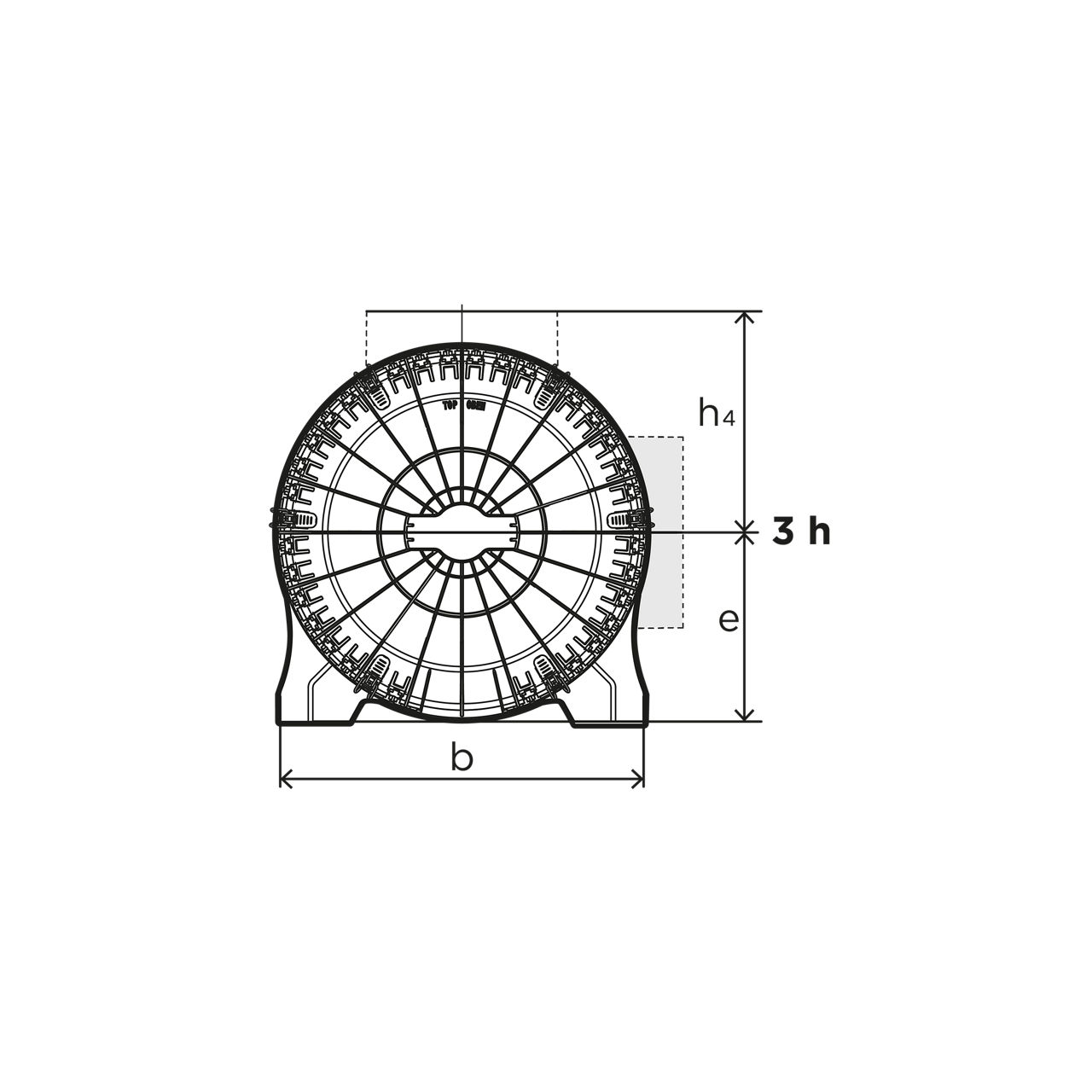

b
476.5 mm

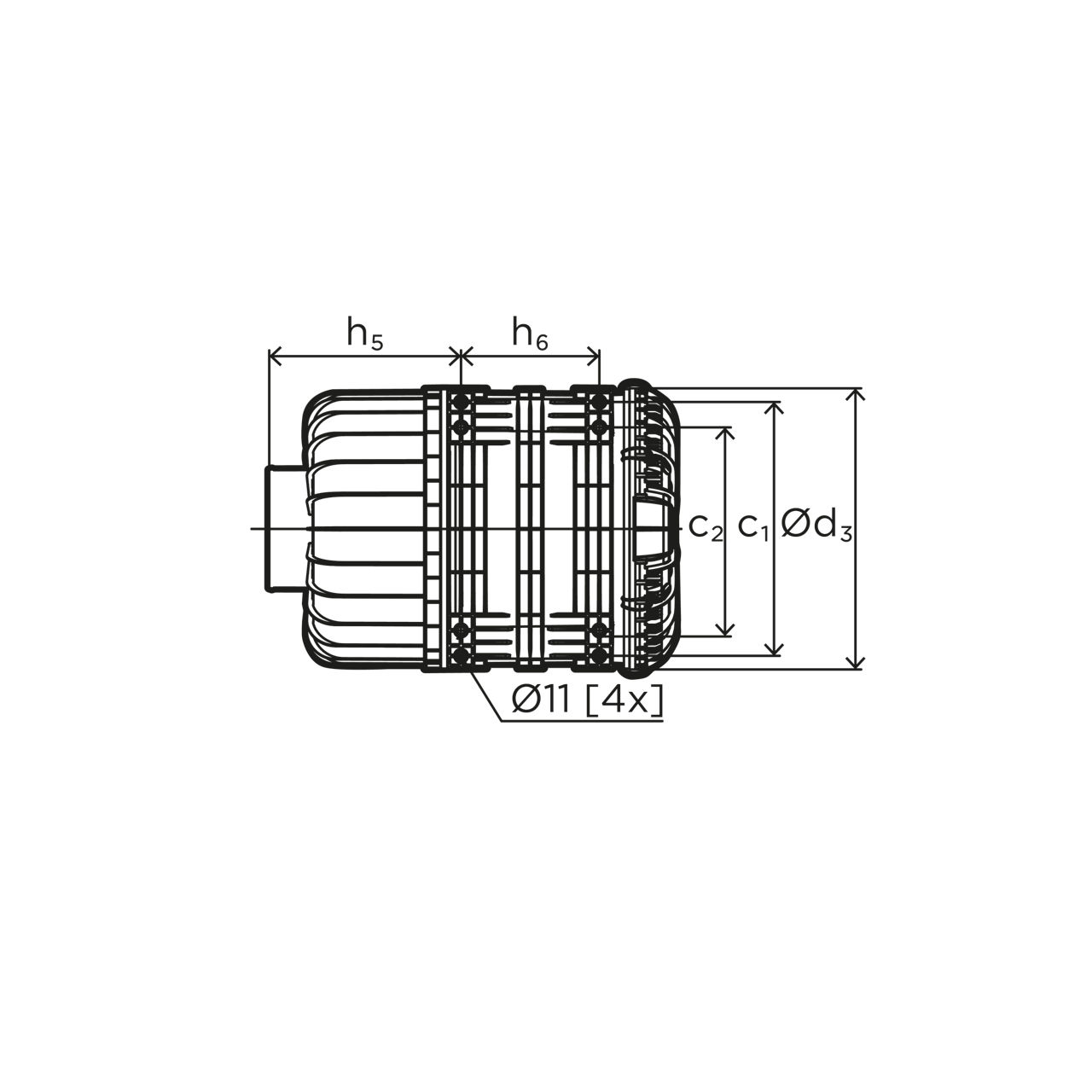

c1
439 mm
c2
361.5 mm

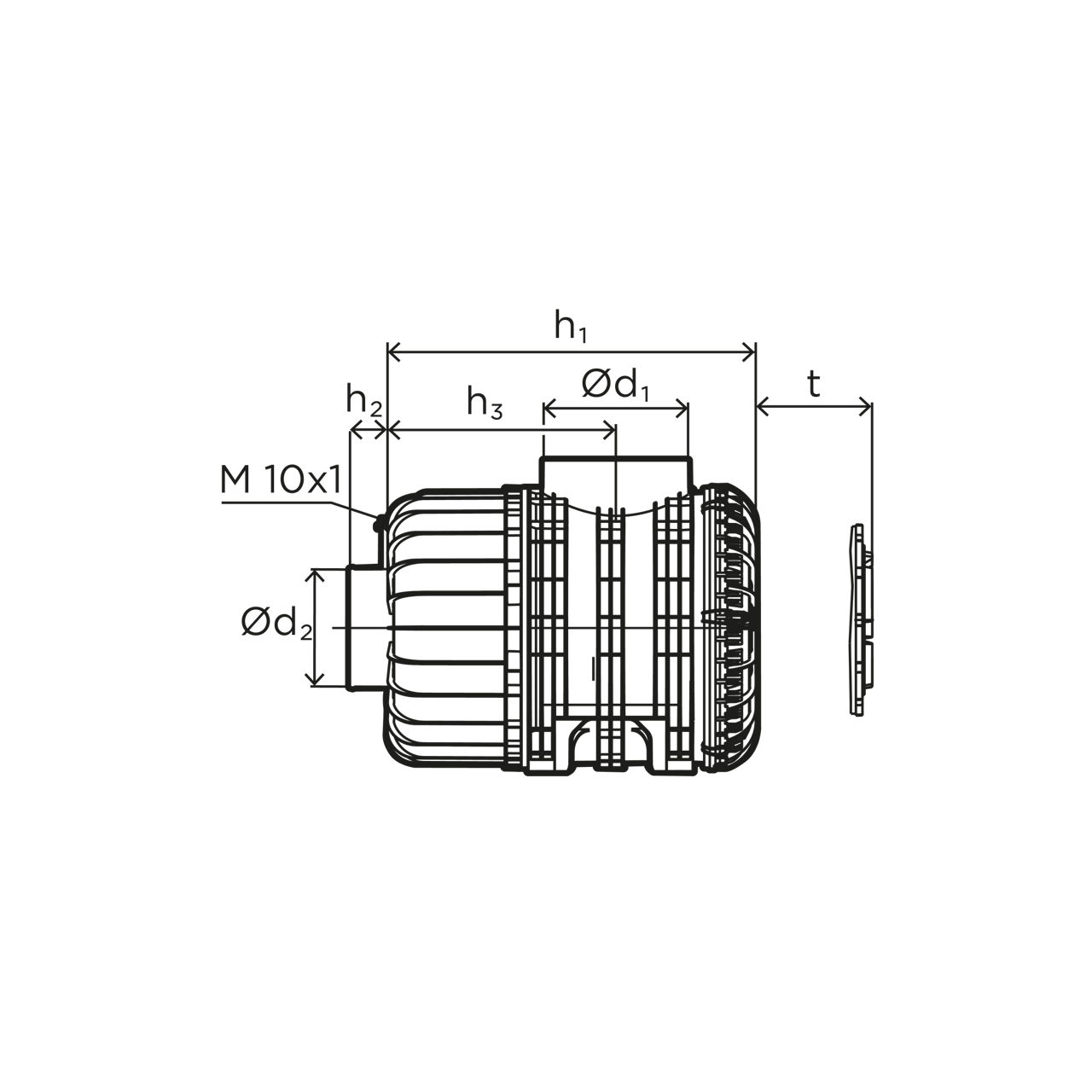

d1
250 mm
d2
203 mm
d3
486.1 mm
h1
638.4 mm
h2
65 mm
h3
395.2 mm
h4
290 mm
h5
331.6 mm
h6
239.1 mm
t
650 mm
