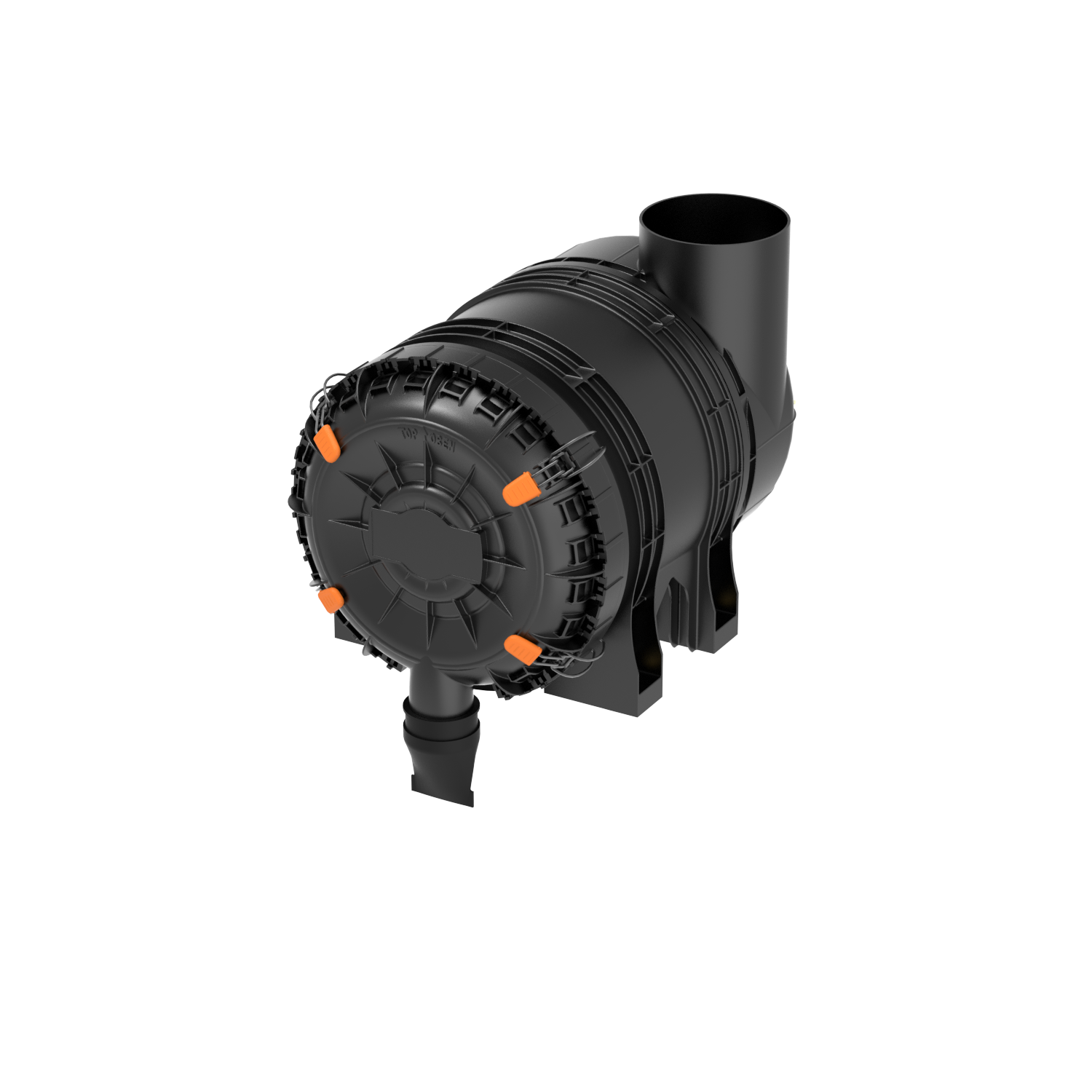

ENTARON XD 14
4552792910
About this item
Nominal Flow Rate: 7-14 m³/min
Type of Operation: Two-Stage
Inlet Position: RIGHT
The ENTARON XD sets new standards for air cleaners delivering superior protection for heavy-duty off-road and on-road equipment operating in medium to heavy dust conditions.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 90 |
| Initial pressure drop | 31.6 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency (%) | 92% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Service switch connection | 0 |
| Secondary element included | Yes |
| Dust discharge diameter connection | 54 mm |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø52mm (Ø54mm) |
| Tightening torque (threaded insert) | 15 N |
| Connection diameter inlet | 130 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.0000 |
| Mounting type standard | SLEEVE |
| Inlet position | RIGHT |
| Design (OE) | Round |
| Type of operation | Two-Stage |
| Clip position 1 | 2 |
| Clip position 2 | 7 |
| Clip position 3 | 14 |
| Clip position 4 | 19 |
| Product length | 422.9 mm |
| Product width | 303 mm |
| Product height | 303 mm |
| Gross weight single pack | 4.99 kg |
| Elbow included | No |
| Housing material | PP-GF30 |
| Tightening torque (through hole) | 23 N |
| Tightening torque (clean side) | 5 N |
b
300.0000 mm
b1
79 mm
c1
263.3 mm
c2
175.3 mm
d1
130 mm
d2
110 mm
d3
305.7 mm
h1
422.9 mm
h2
45 mm
h3
72.8 mm
h4
186.5 mm
h5
218.4 mm
h6
136.8 mm
h7
85.8 mm
t
MILLIMETER mm
