ENTARON

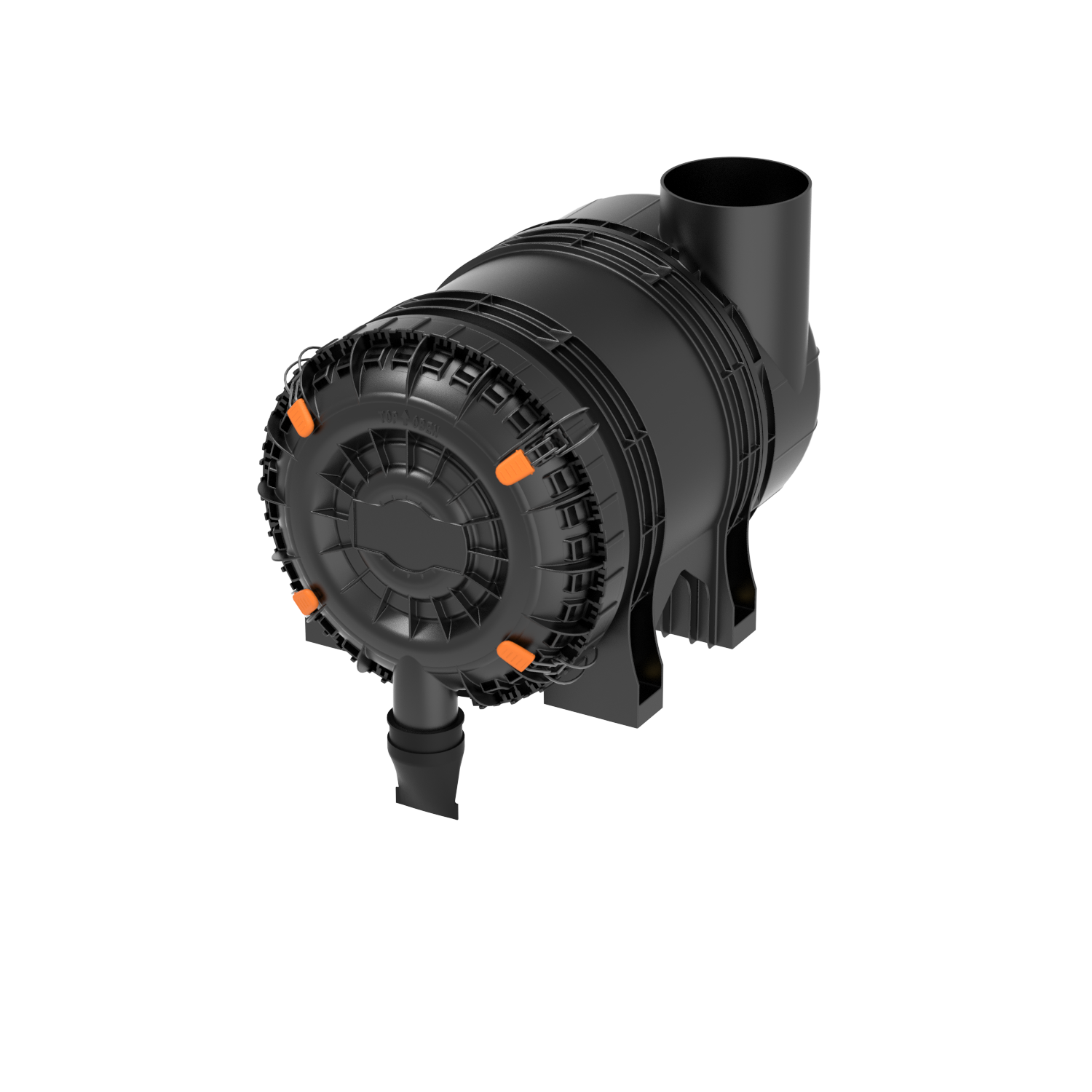

ENTARON XD 17
4562692910
About this item
Nominal Flow Rate: 9-17 m³/min
Type of Operation: Two-Stage
Inlet Position: RIGHT
The ENTARON XD sets new standards for air cleaners delivering superior protection for heavy-duty off-road and on-road equipment operating in medium to heavy dust conditions.
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
No external dust pre-separator required
-
Extra robust corrosion-free housing made from plastic
-
Considerable reduction in weight
-
High reliability through elements with proven sealing system
-
Easy tool-less element maintenance
-
Long service life
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 90 |
| Initial pressure drop | 25.7 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency | 92% |
| Filter media material OE | CELLULOSE |
| Bracket position | 0.00 |
| Service switch connection | 0 |
| Secondary element included | Yes |
| Dust discharge diameter connection (mm) | 54 mm |
| Dust valve angle (°) | 0 ° |
| Dust valve type | STRAIGHT, SM. Ø52mm (Ø54mm) |
| Tightening torque (threaded insert)/(Nm) | 15 N |
| Connection diameter inlet (mm) | 130 mm |
| Elbow type | NO |
| Inlet angle (°) | 0.00 |
| Mounting type standard | SLEEVE |
| Inlet position | RIGHT |
| Design (OE) | Round |
| Type of operation | Two-Stage |
| Clip position 1 | 3 |
| Clip position 2 | 10 |
| Clip position 3 | 19 |
| Clip position 4 | 26 |
| Elbow included | No |
| Housing material | PP-GF30 |
| Tightening torque (through hole) (NM) | 23 N |
| Tightening torque (clean side)/(Nm) | 5 N |
| Nominal flow rate air (max) (m³/min) | 17 |
| Nominal Flow rate air (min) (m³/min) | 9 |
b
328.2 mm
b1
90.1 mm
c1
291.8 mm
c2
203.8 mm
d1
130 mm
d2
130 mm
d3
335.1 mm
h1
474.8 mm
h2
45 mm
h3
80.3 mm
h4
198 mm
h5
235.8 mm
h6
169.9 mm
h7
90.4 mm
t
408 mm
