Centrifuge

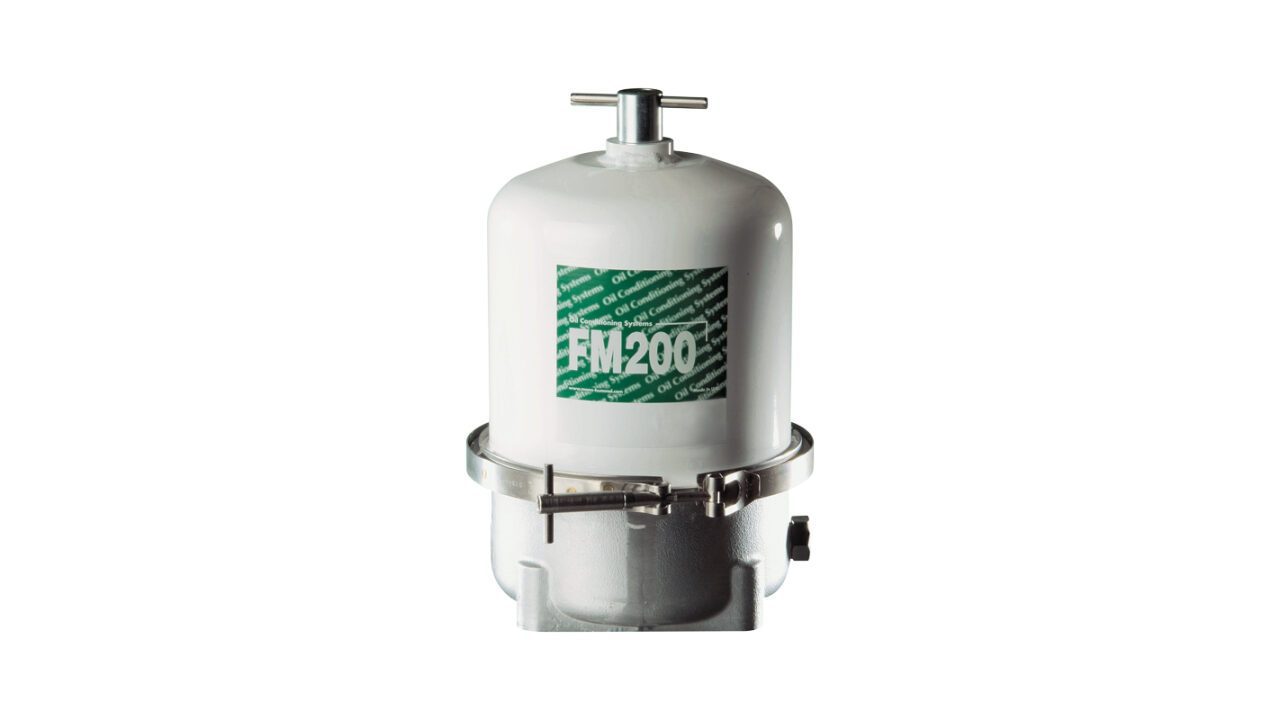

FM200DS-01 CENTRIFUGE
1429406S01
About this item
Volume Flow Range: 0-73,5 l/min
Engine oil pressure range: 0-7 BAR
The centrifuges were designed to extend the life of lubrication oil of industrial and marine engines. By utilizing centrifugal forces built up inside the oil powered spinning rotor, this filtration method can remove particles below one micrometer. The wear of the oil circulation system is significantly reduced.
Product highlights and benefits
| Data | Value |
|---|---|
| Lubrication Oil Quantity Volume Sump Formular (min) (l) | 40.0000 |
| Lubrication Oil Quantity Volume Sump Formular (max) (l) | 170.0000 |
| Volume Flow Range Centrifuge (min) (l/min) | 3 |
| Volume Flow Range Centrifuge (max) (l/min) | 11 |
| Dirt capacity | 6 l |
| System capacity | 6 l |
| Rotor type | 9022 |
| Connection thread inlet | M33 x 2 |
| Connection thread outlet | 103.4 |
| Product length | 323 mm |
| Product width | 246 mm |
| Product height | 448 mm |
| Gross weight single pack (g) | 13.4 kg |
| Service height (mm) | 779 mm |
| Lubrication Oil Pump Flow Rate Formular (min) | 2.6 |
| Connect thread | M33 x 2 |
