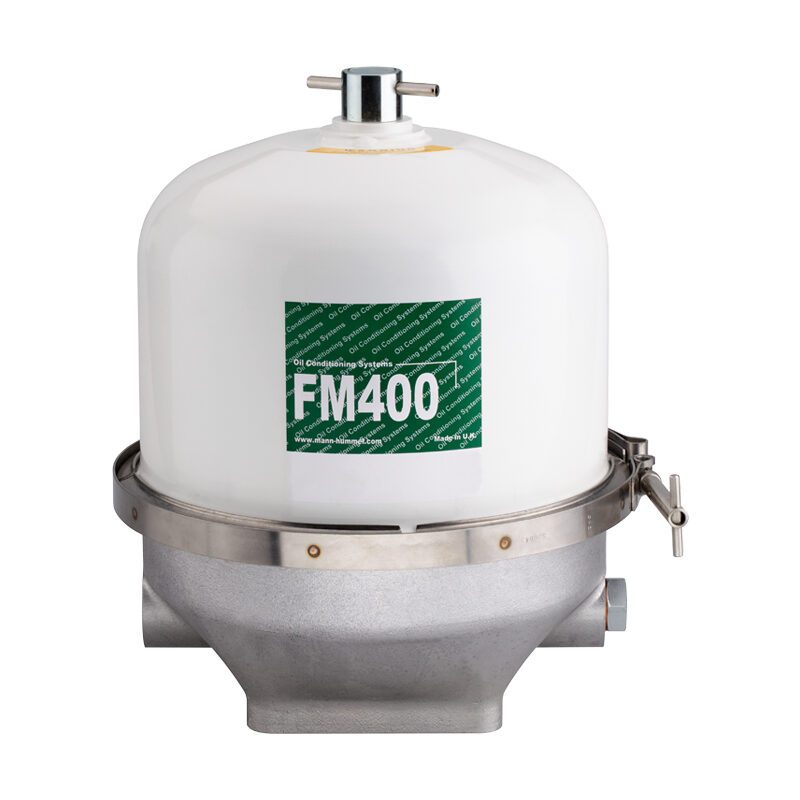

FM400-23 CENTRIFUGE
6899138801
About this item
Volume Flow Range: SPECIFIC ENGINES
Engine oil pressure range: 0-7 BAR
The centrifuges were designed to extend the life of lubrication oil of industrial and marine engines. By utilizing centrifugal forces built up inside the oil powered spinning rotor, this filtration method can remove particles below one micrometer. The wear of the oil circulation system is significantly reduced.
Product highlights and benefits
-
For volume flow rates up to 600 l/h
-
Easy handling during servicing
-
Integrated and effective hand pump with 45° position to drain off water and for priming during service
-
Integrated water collector
-
Parallel operation possible with a number of systems
| Data | Value |
|---|---|
| Lubrication Oil Quantity Volume Sump Formular (min) (l) | 200.0000 |
| Lubrication Oil Quantity Volume Sump Formular (max) (l) | 1500.0000 |
| Volume Flow Range Centrifuge (min) (l/min) | 15 |
| Volume Flow Range Centrifuge (max) (l/min) | 100 |
| Dirt capacity | 2 l |
| System capacity | 2 l |
| Rotor type | 9022 |
| Connection thread inlet | ISO 228 - G 3/4" |
| Connection thread outlet | ø102 |
| Product length | 350 mm |
| Product width | 350 mm |
| Product height | 400 mm |
| Gross weight single pack (g) | 29 kg |
| Lubrication Oil Pump Flow Rate Formular (min) | 14.6 |
| Connect thread | ISO 228 - G 3/4" |
