Centrifuge

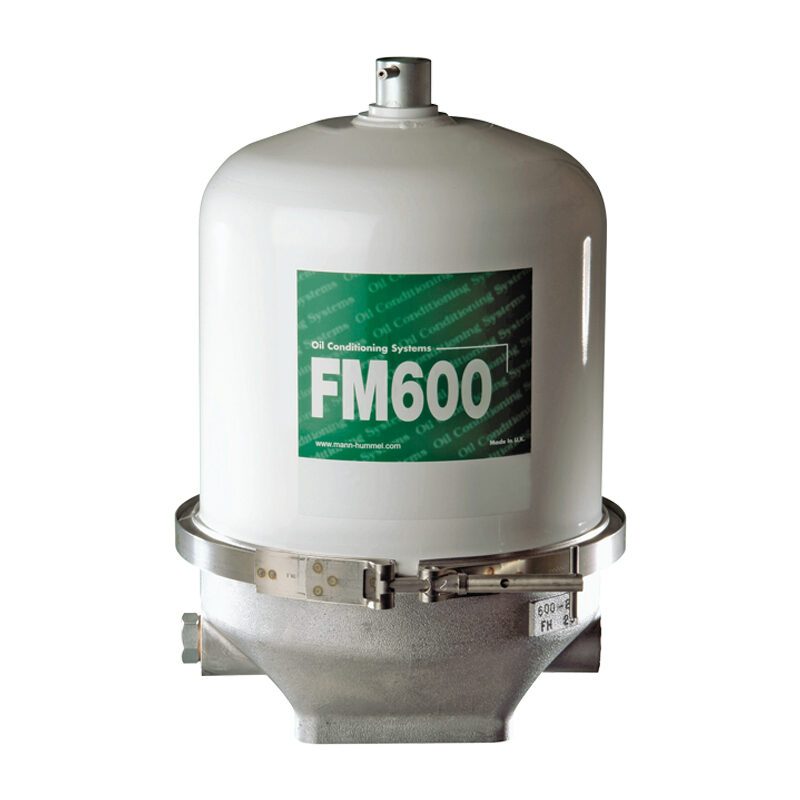

FM600-23 CENTRIFUGE
6899118901
About this item
Volume Flow Range: SPECIFIC ENGINES
Engine oil pressure range: 0-7 BAR
The centrifuges were designed to extend the life of lubrication oil of industrial and marine engines. By utilizing centrifugal forces built up inside the oil powered spinning rotor, this filtration method can remove particles below one micrometer. The wear of the oil circulation system is significantly reduced.
Product highlights and benefits
-
For volume flow rates up to 600 l/h
-
Easy handling during servicing
-
Integrated and effective hand pump with 45° position to drain off water and for priming during service
-
Integrated water collector
-
Parallel operation possible with a number of systems
| Data | Value |
|---|---|
| Lubrication Oil Quantity Volume Sump Formular (min) (l) | 200.0000 |
| Lubrication Oil Quantity Volume Sump Formular (max) (l) | 1500.0000 |
| Volume Flow Range Centrifuge (min) (l/min) | 15 |
| Volume Flow Range Centrifuge (max) (l/min) | 100 |
| Dirt capacity | 2 l |
| System capacity | 2 l |
| Rotor type | 9022 |
| Connection thread inlet | 3/4" BSP |
| Connection thread outlet | ø102 |
| Product length | 342 mm |
| Product width | 342 mm |
| Product height | 483 mm |
| Gross weight single pack (g) | 27.44 kg |
| Lubrication Oil Pump Flow Rate Formular (min) | 14.6 |
| Connect thread | 3/4" BSP |
