IQORON

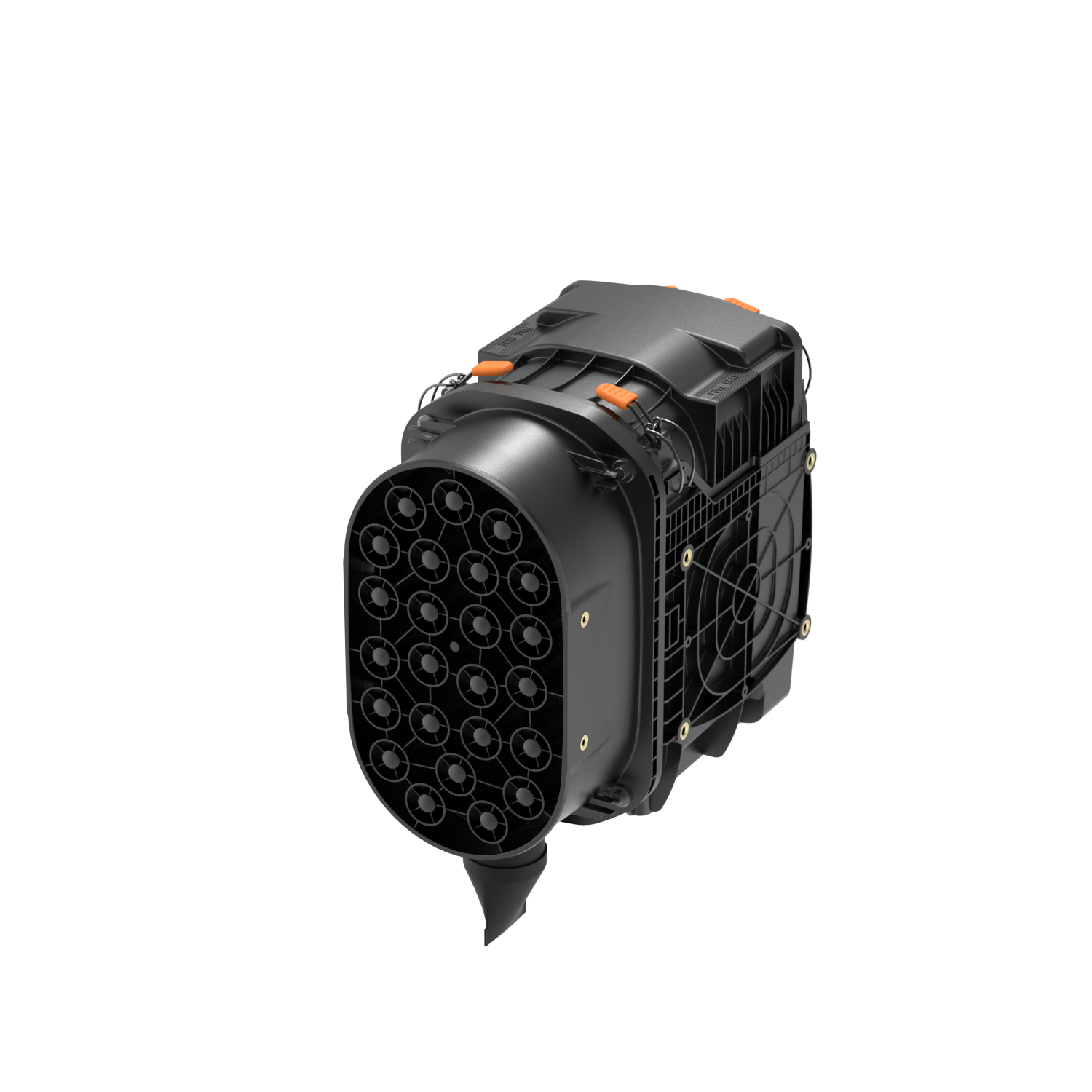

IQORON V 14
4558095910
About this item
Nominal Flow Rate: 7-14 m³/min
Even in complex installation spaces and applications with medium to high dust loads, our products like the IQORON series reliably separate harmful dirt particles from the intake air, thus protecting the engine from wear, for example, and extending its service life,
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
Inline air flow for flexible installation
-
High preseparation efficiency due to integrated dust preseparator
-
Preseparator easy to clean, if required
-
No external dust preseparator required
-
Extra robust corrosionfree housing made from plastic
-
continuous operation temperature 40 °C to +100 °C (short term peaks +120°C)
-
Dust discharge valve (optional scavenging)
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 100 |
| Initial pressure drop | 35.6 mbar |
| Filtration efficiency (%) | 467998 |
| Pre separation efficiency | Upto 95% |
| Filter media material OE | CELLULOSE |
| Secondary element included | 1 |
| Dust discharge diameter connection (mm) | 54 mm |
| Dust valve type | STRAIGHT, SM. Ø52mm (Ø54mm) |
| Tightening torque (threaded insert)/(Nm) | 15 N |
| Elbow type | NO |
| Mounting type standard | M8 |
| OE design | 467983 |
| Product length | 435.7 mm |
| Product width | 220.3 mm |
| Product height | 346.3 mm |
| Gross weight single pack (g) | 6.16 kg |
| Elbow included | 0 |
| Housing material | PA6-GF30 |
| Tightening torque (clean side)/(Nm) | 5 N |
c1
145 mm
c7
78.2 mm
c8
145 mm
c9
100 mm
d1
127 mm
h1 (mm)
435.7 mm
h2
34 mm
h5
78.2 mm
h6
205 mm
h8 - 5
89.5 mm
h8 - 6
86 mm
h45
346.3 mm
k1
190 mm
k2
316.3 mm
