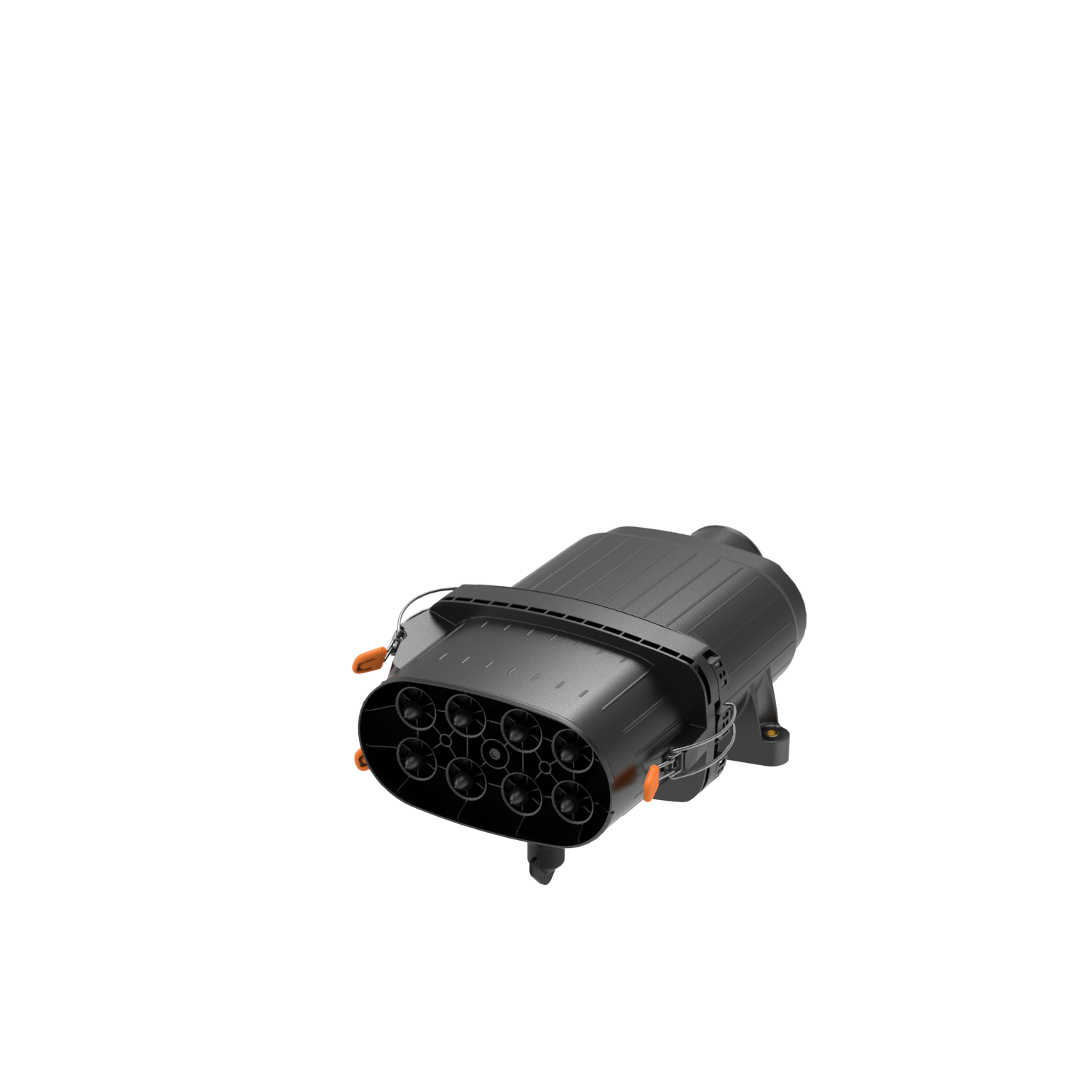

IQORON V 4.5
4518095912
About this item
Nominal Flow Rate: 3-4.5 m³/min
Even in complex installation spaces and applications with medium to high dust loads, our products like the IQORON series reliably separate harmful dirt particles from the intake air, thus protecting the engine from wear, for example, and extending its service life,
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
Inline air flow for flexible installation
-
High pre-separation efficiency due to integrated dust preseparator
-
Pre-separator easy to clean, if required
-
No external dust preseparator required
-
Extra robust corrosionfree housing made from plastic
-
continuous operation temperature 40 °C to +100 °C (short term peaks +120°C)
-
Dust discharge valve (optional scavenging)
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -30 |
| Operating temperature max. (°C) | 100 |
| Initial pressure drop | 28.6 mbar |
| Filtration efficiency (%) | 467998 |
| Pre separation efficiency | >95% |
| Secondary element included | 1 |
| Dust discharge diameter connection (mm) | 40 mm |
| Dust valve type | STRAIGHT, SM. Ø37,5mm (Ø40mm) |
| Tightening torque (threaded insert)/(Nm) | 10 N |
| Elbow type | NO |
| Mounting type standard | M8 + SLEEVE |
| OE design | 467983 |
| Product length | 393.3 mm |
| Product width | 143.1 mm |
| Product height | 254.8 mm |
| Gross weight single pack (g) | 0.33 kg |
| Elbow included | 0 |
| Housing material | PA6-GF30 |
| Tightening torque (clean side)/(Nm) | 4 N |

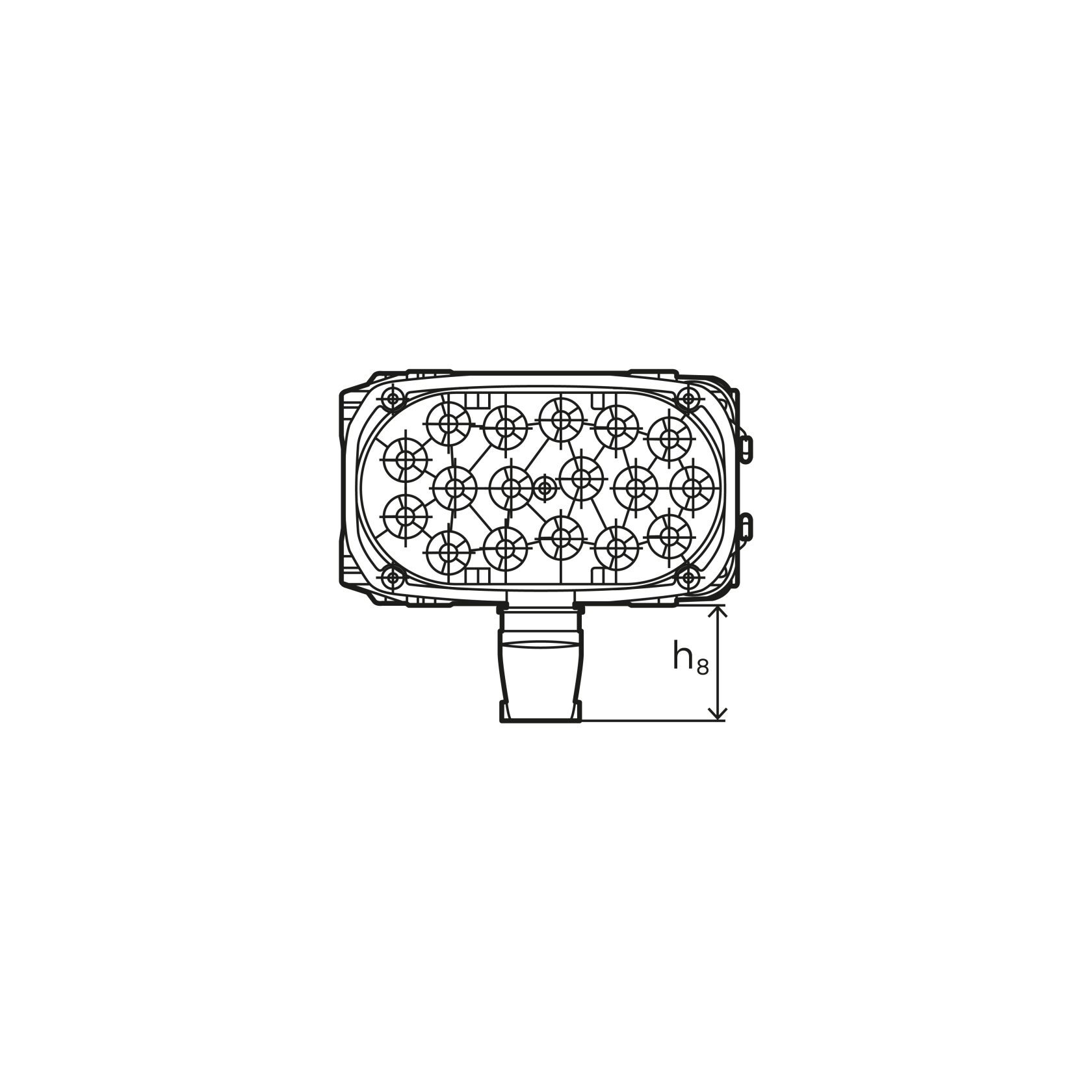

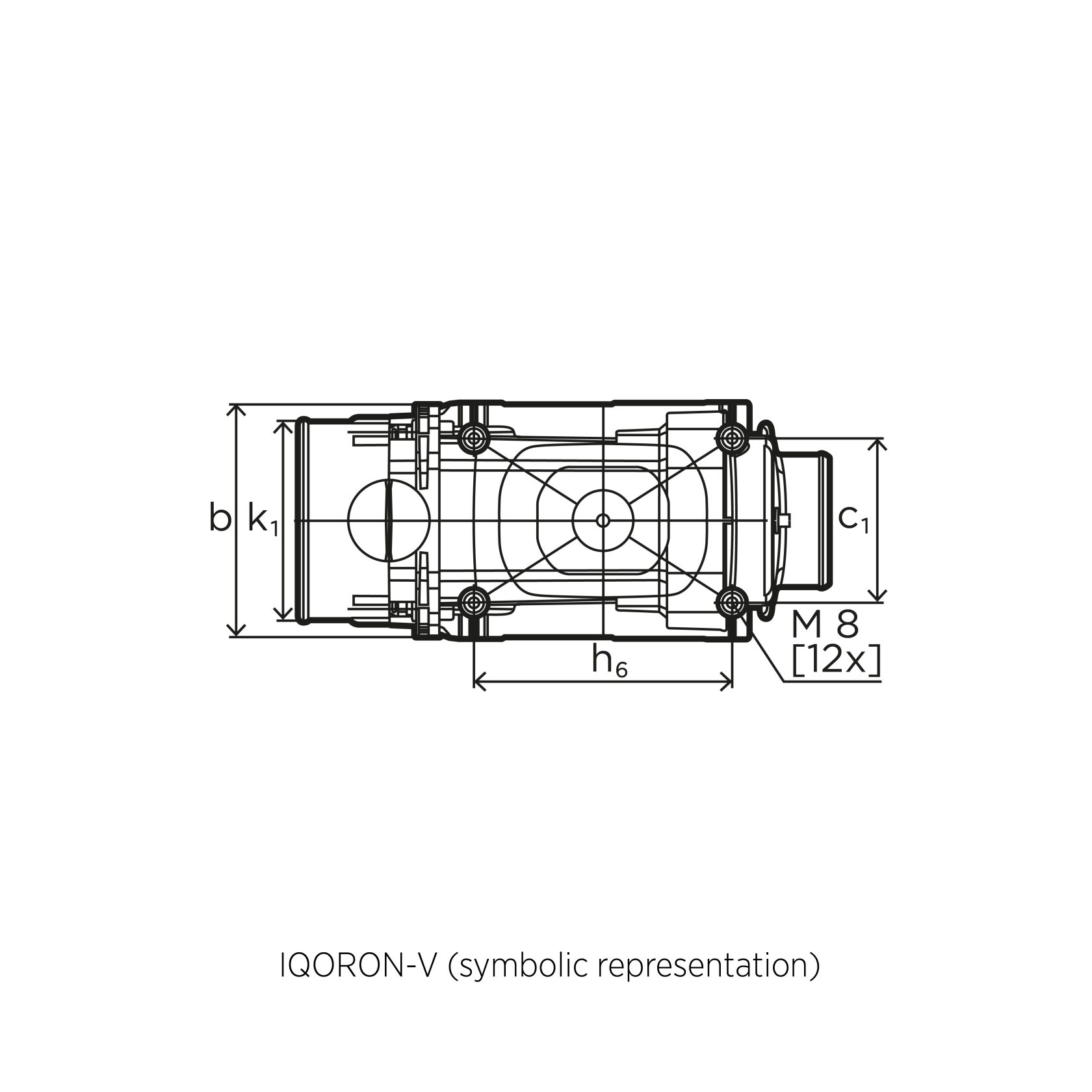

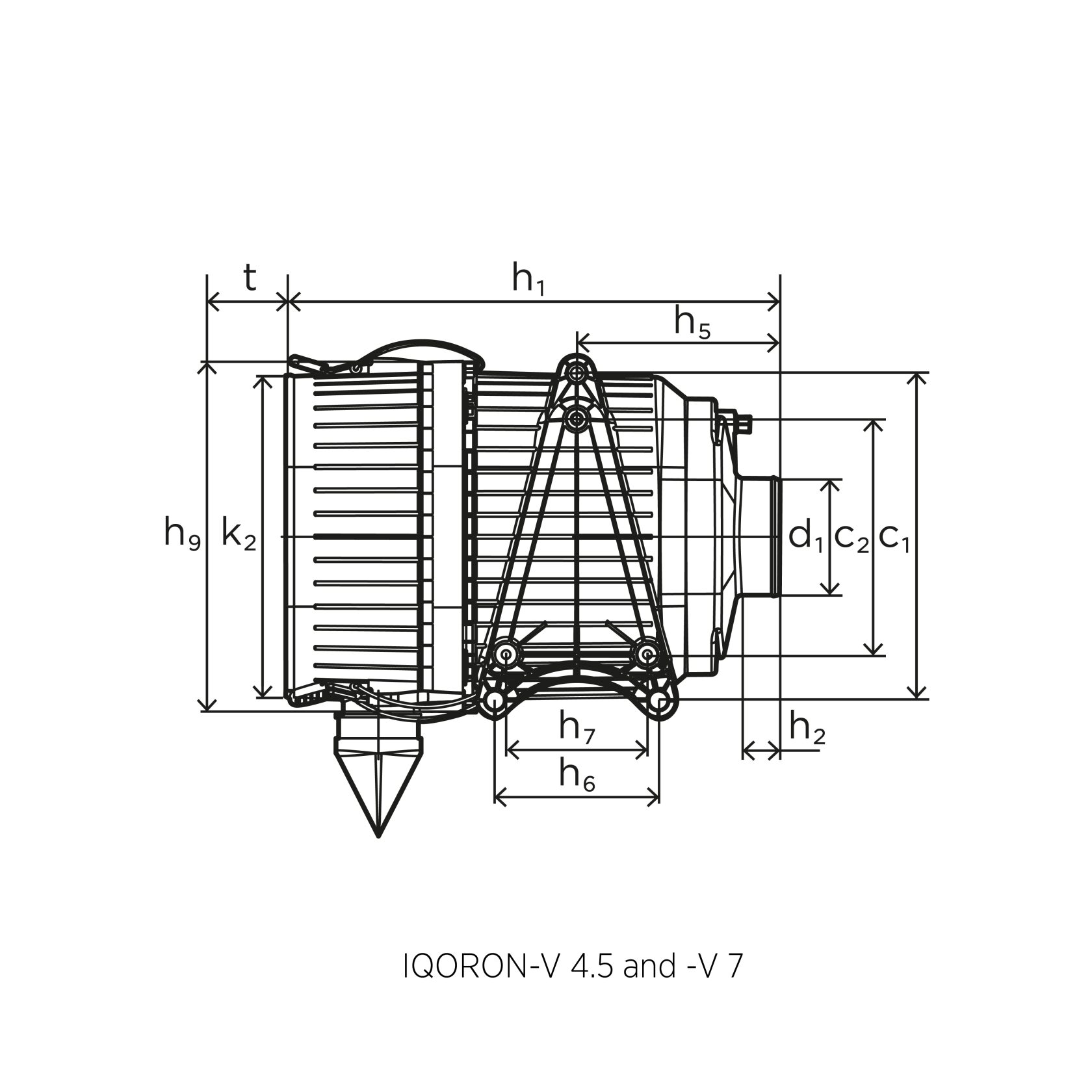

c1
173 mm
c2 (mm)
115.7 mm
d1
89 mm
d2
40 mm
h1 (mm)
368 mm
h2
30 mm
h5
183.5 mm
h7
240 mm
k1
153 mm
k2
226 mm
