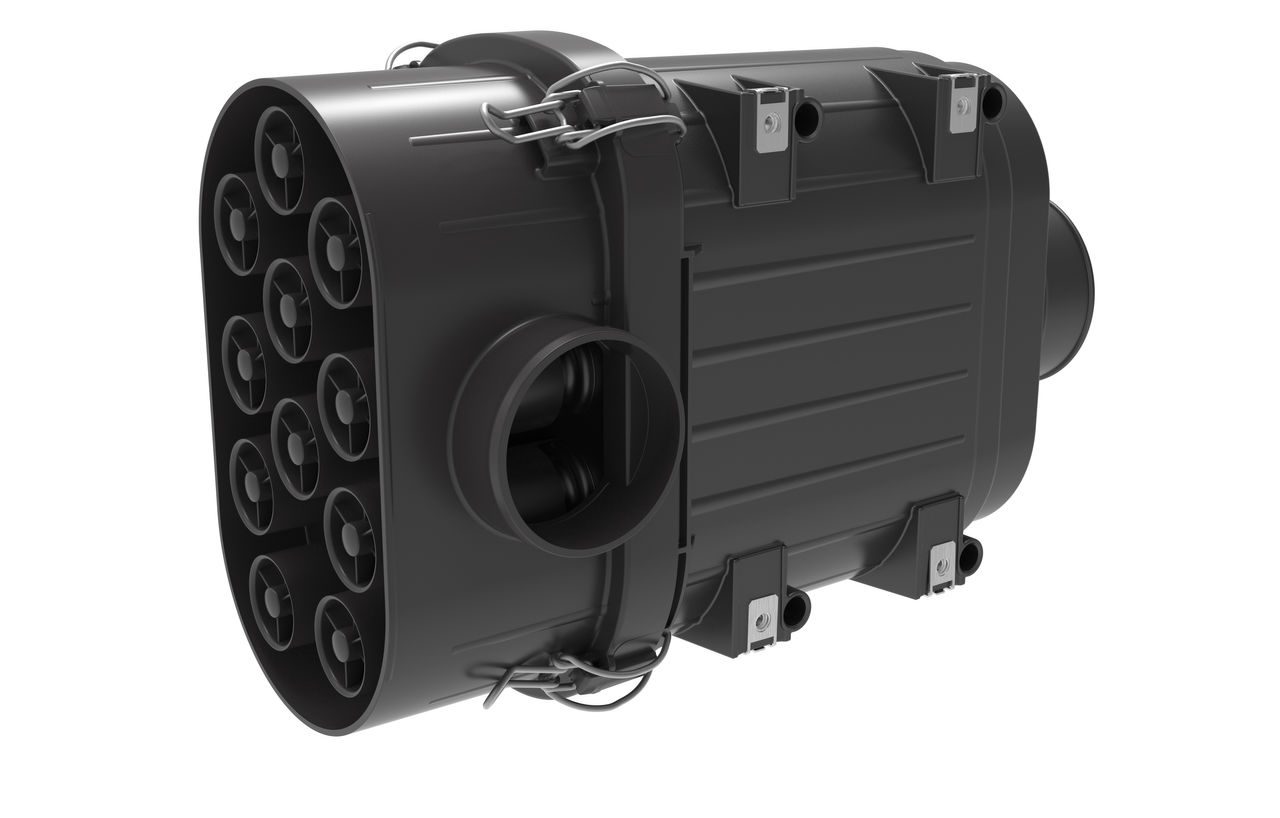

IQORON V8 horizontal
1523496S01
About this item
Nominal Flow Rate: 6-10 m³/min
Type of Operation: Two-Stage
The Compact Air Cleaner Iqoron V 8 is a versatile and efficient solution designed to seamlessly replace existing air filter concepts on the market. Available in both horizontal and vertical versions, it offers flexible installation options to suit various needs. Its optimized dust pre-separation system ensures effective performance in both scavenged and non-scavenged operations.
Product highlights and benefits
-
Compact air cleaner plug & play ready to replace existing concepts on the market
-
Horizontal and vertical version available
-
Several fixation options allow flexible installation
-
Optimized dust pre-separation for scavenged and non-scavenged operation
-
Pre-cleaner cleanable compared to other compact air filter concepts on the market
-
No face plugging compared to other compact air filter concepts on the market
-
Main element cleanable compared to other compact air filter concepts on the market
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 32.9 mbar |
| Filtration efficiency (%) | 467998 |
| Pre separation efficiency | up to 93% |
| Filter media material OE | CELLULOSE |
| Secondary element included | 1 |
| Dust discharge diameter connection (mm) | 76 mm |
| Dust valve type | STRAIGHT, SM. ⌀74 (⌀76) |
| Elbow type | No |
| Mounting type standard | M6 |
| OE design | 467983 |
| Type of operation | 9157 |
| Elbow included | 0 |
| Housing material | PP-GF30 |
| Tightening torque (clean side)/(Nm) | 4 Nm |
c7
20 mm
c8
191 mm
d1
89 mm
h1 (mm)
379 mm
h2
30 mm
h5
116 mm
h6
100 mm
h8 - 5
66 mm
h8 - 6
62 mm
k1
130 mm
k2
231 mm
