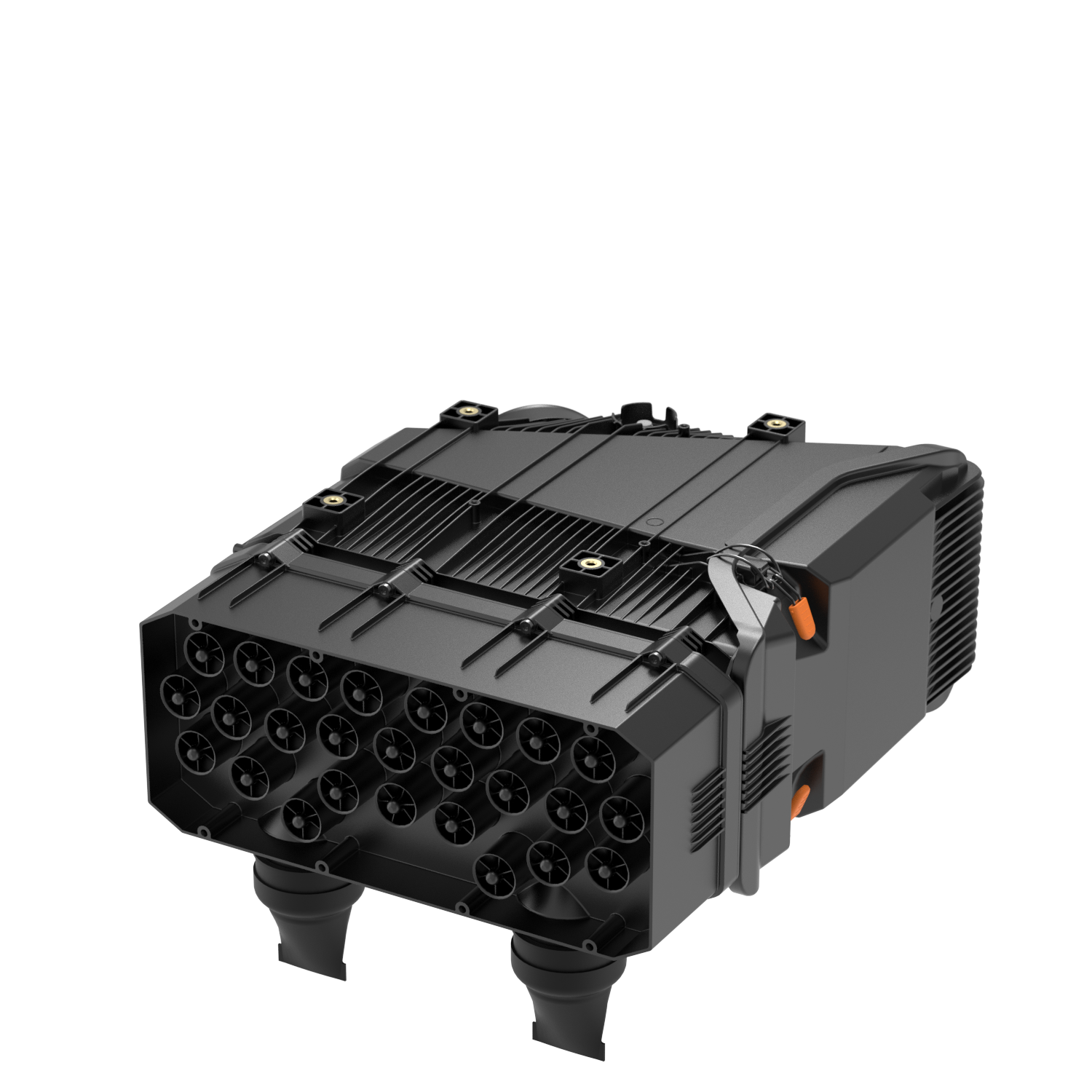

IQORON VP 19
4591995911
About this item
Nominal Flow Rate: 14-19 m³/min
Type of Operation: Two-Stage
The IQORON VP sets new standards for air cleaners delivering superior protection for heavy-duty off-road and on-road equipment fitted in compact tight installation space while operating in medium to heavy dust conditions,
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
Preseparator easy to clean, if required
-
No external dust preseparator required
-
Extra robust corrosionfree housing made from plastic
-
Inline air flow for flexible installation
-
Horizontal and vertical operation without performance loss
-
Threaded inserts offer numerous mounting possibilities
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 28.5 mbar |
| Filtration efficiency | >99,99% |
| Pre separation efficiency (%) | >90% |
| Filter media material OE | CELLULOSE |
| Secondary element included | Yes |
| Dust discharge diameter connection | 74 mm |
| Dust valve type | STRAIGHT, SM. Ø72mm (Ø74mm) |
| Tightening torque (threaded insert) | 15 N |
| Elbow type | NO |
| Mounting type standard | M8 |
| Design (OE) | Inline |
| Type of operation | Two-Stage |
| Product length | 549 mm |
| Product width | 223 mm |
| Product height | 452 mm |
| Gross weight single pack | 7 kg |
| Elbow included | No |
| Housing material | PP-GF30 |
| Tightening torque (clean side) | 4 N |

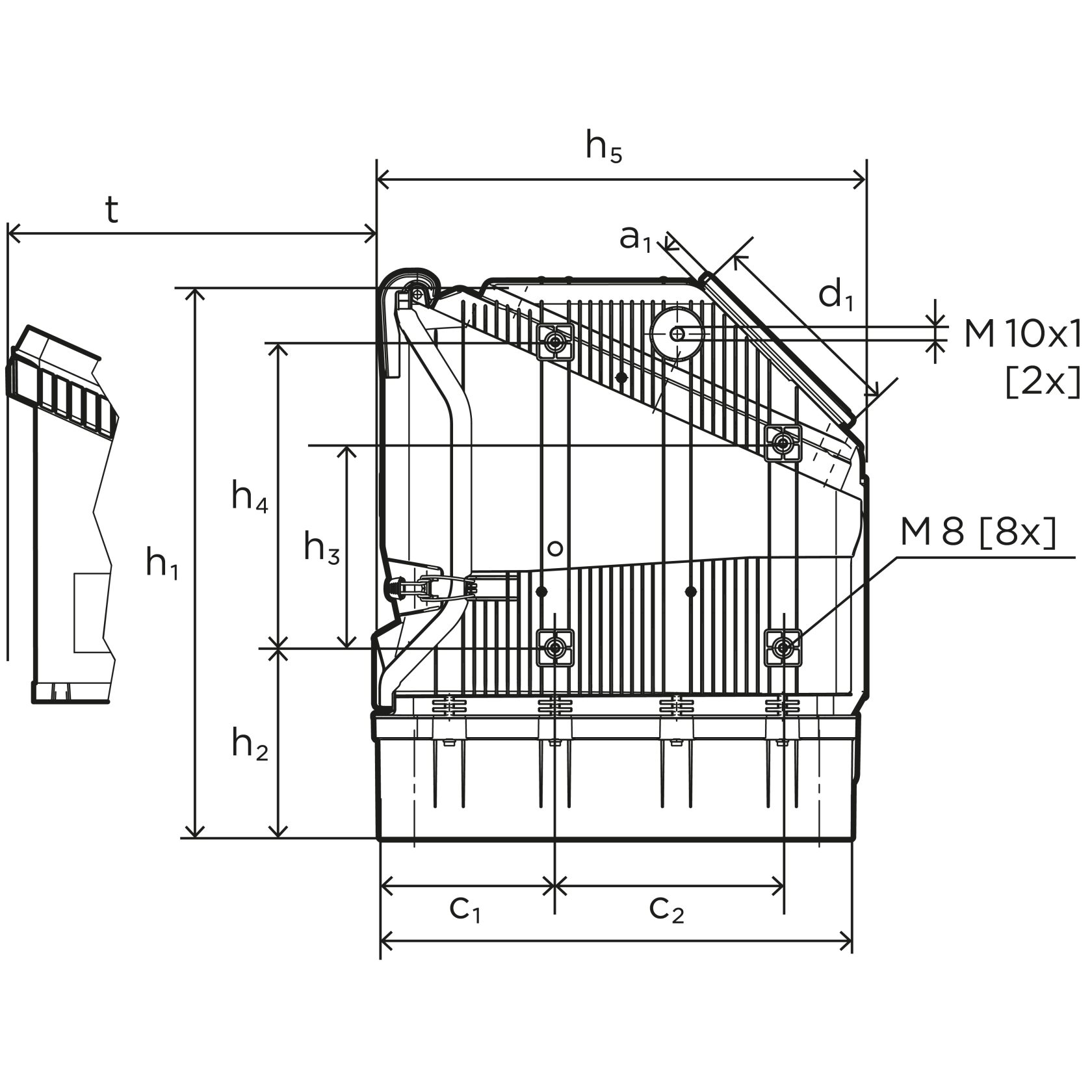

a1
40 mm

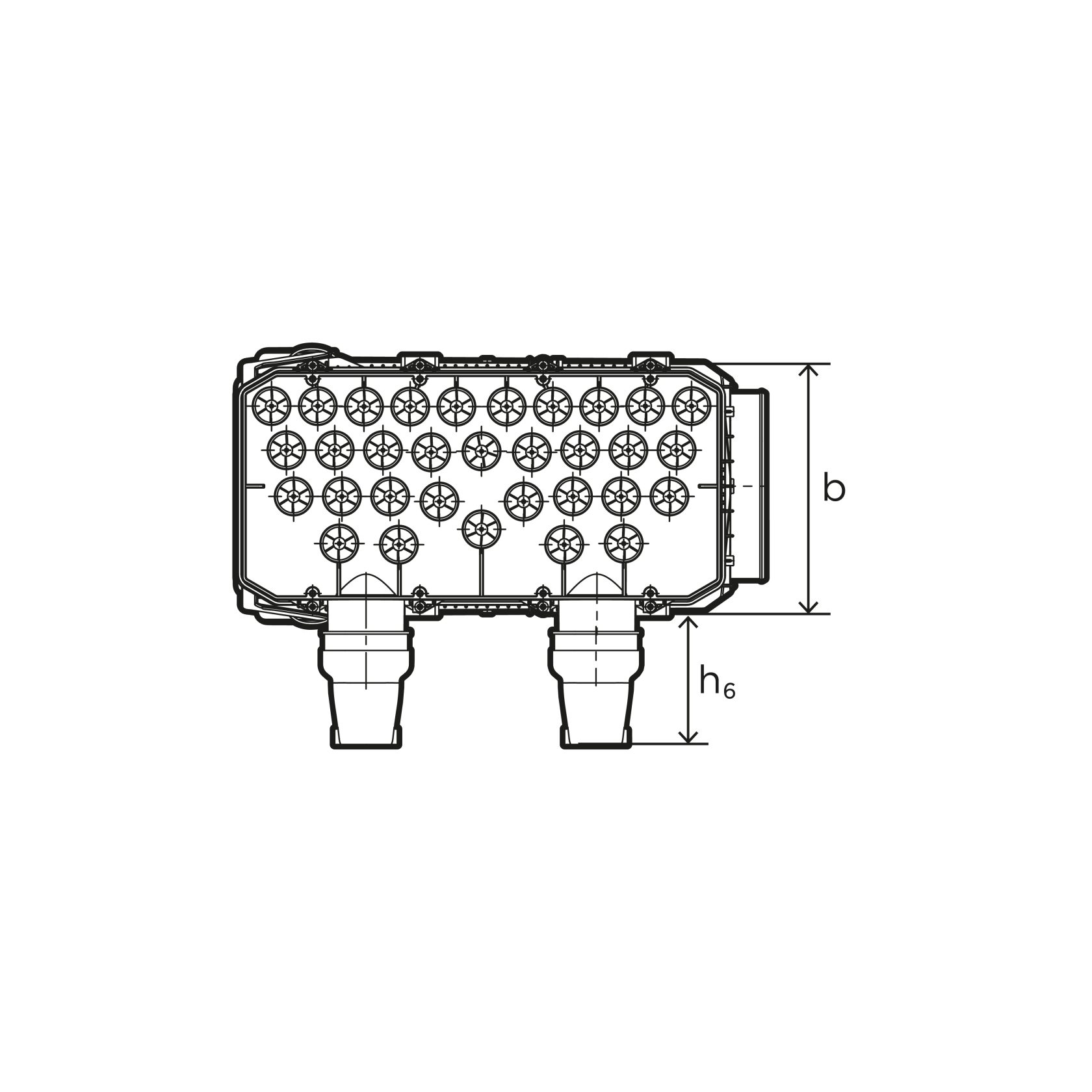

b
223.0000 mm
c1
63 mm
c2
224 mm
d1
150 mm
h1
540 mm
h2
186 mm
h3
301 mm
h4
200 mm
h5
452 mm
h6
120 mm

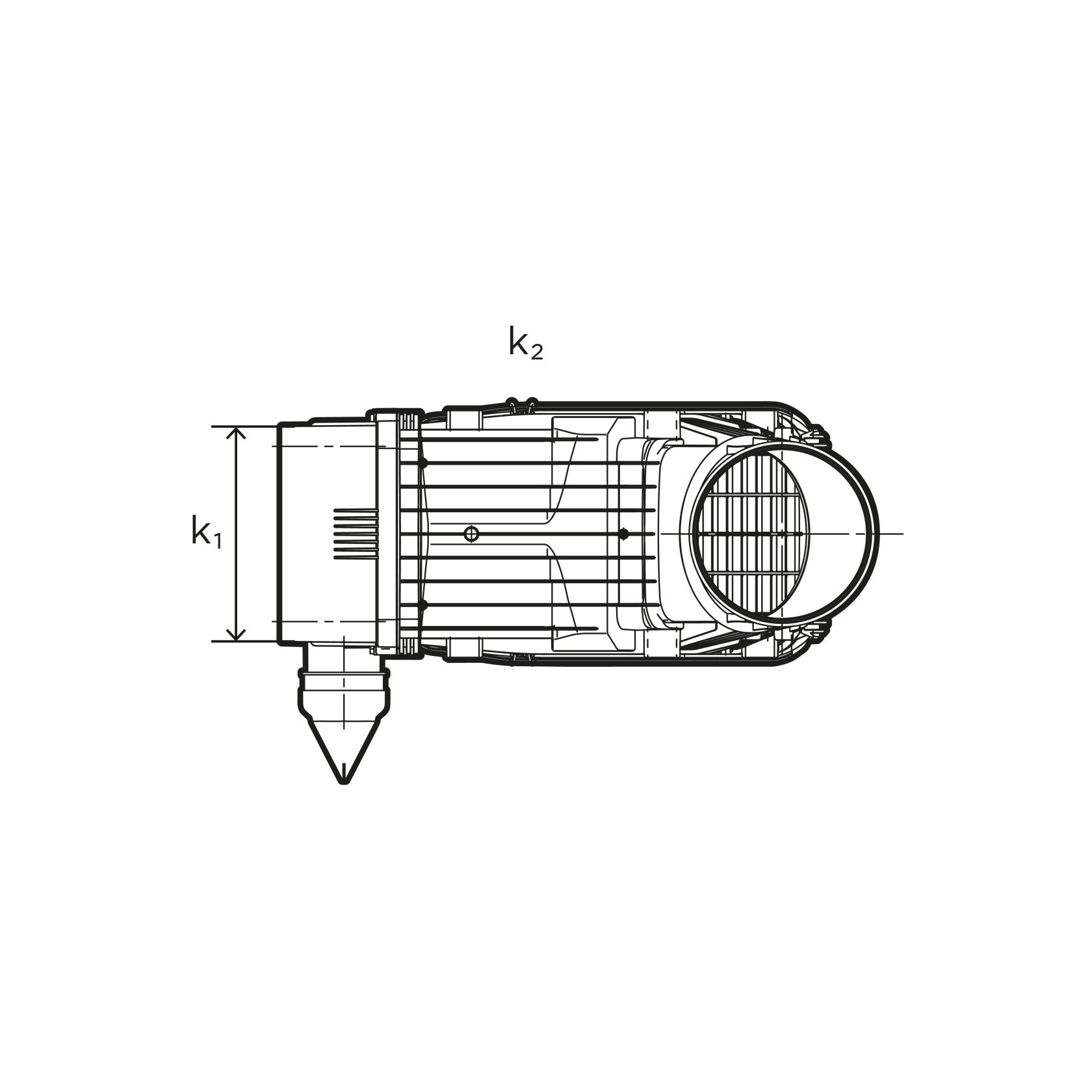

k1
185 mm
k2
430 mm
t
MILLIMETER mm
