IQORON

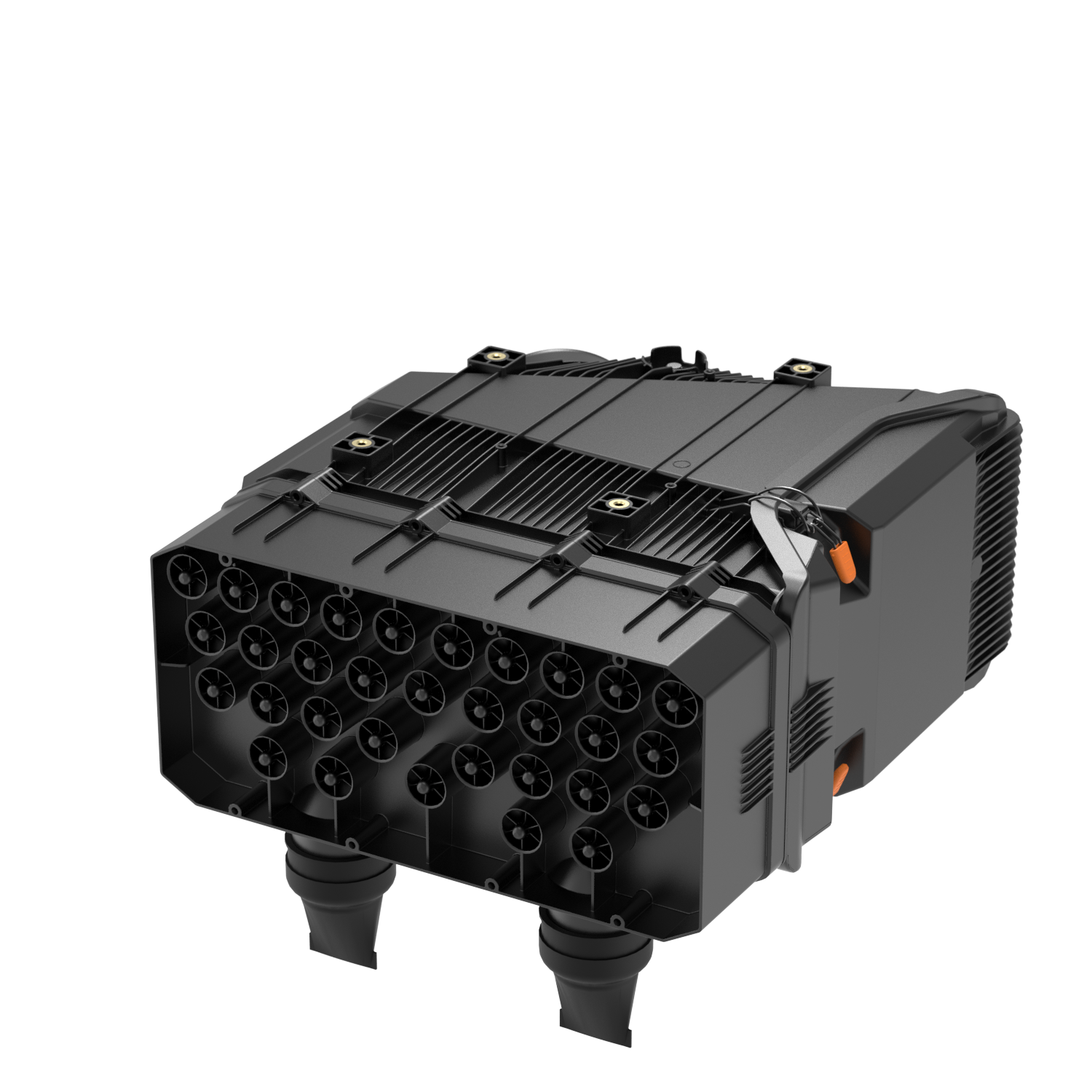

IQORON VP 25
4592595911
About this item
Nominal Flow Rate: 18-25 m³/min
Type of Operation: Two-Stage
The IQORON VP sets new standards for air cleaners delivering superior protection for heavy-duty off-road and on-road equipment fitted in compact tight installation space while operating in medium to heavy dust conditions,
Product highlights and benefits
-
Reliable, offers excellent protection of the engine
-
High pre-separation efficiency due to integrated dust preseparator
-
Preseparator easy to clean, if required
-
No external dust preseparator required
-
Extra robust corrosionfree housing made from plastic
-
Inline air flow for flexible installation
-
Horizontal and vertical operation without performance loss
-
Threaded inserts offer numerous mounting possibilities
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 80 |
| Initial pressure drop | 25.9 mbar |
| Filtration efficiency (%) | 468001 |
| Pre separation efficiency (%) | >90% |
| Filter media material OE | CELLULOSE |
| Secondary element included | 1 |
| Dust discharge diameter connection | 74 mm |
| Dust valve type | STRAIGHT, SM. Ø72mm (Ø74mm) |
| Tightening torque (threaded insert) | 15 N |
| Elbow type | NO |
| Mounting type standard | M8 |
| OE design | 467983 |
| Type of operation | 9157 |
| Product length | 559 mm |
| Product width | 253 mm |
| Product height | 484 mm |
| Gross weight single pack | 10 kg |
| Elbow included | 0 |
| Housing material | PP-GF30 |
| Tightening torque (clean side) | 4 N |
a1
36 mm
c1
81 mm
c2
225 mm
d1
180 mm
h1
559 mm
h2
196 mm
h3
302 mm
h4
202 mm
h5
484 mm
h6
128 mm
k1
220 mm
k2
465 mm
