Hydraulic Filter Systems

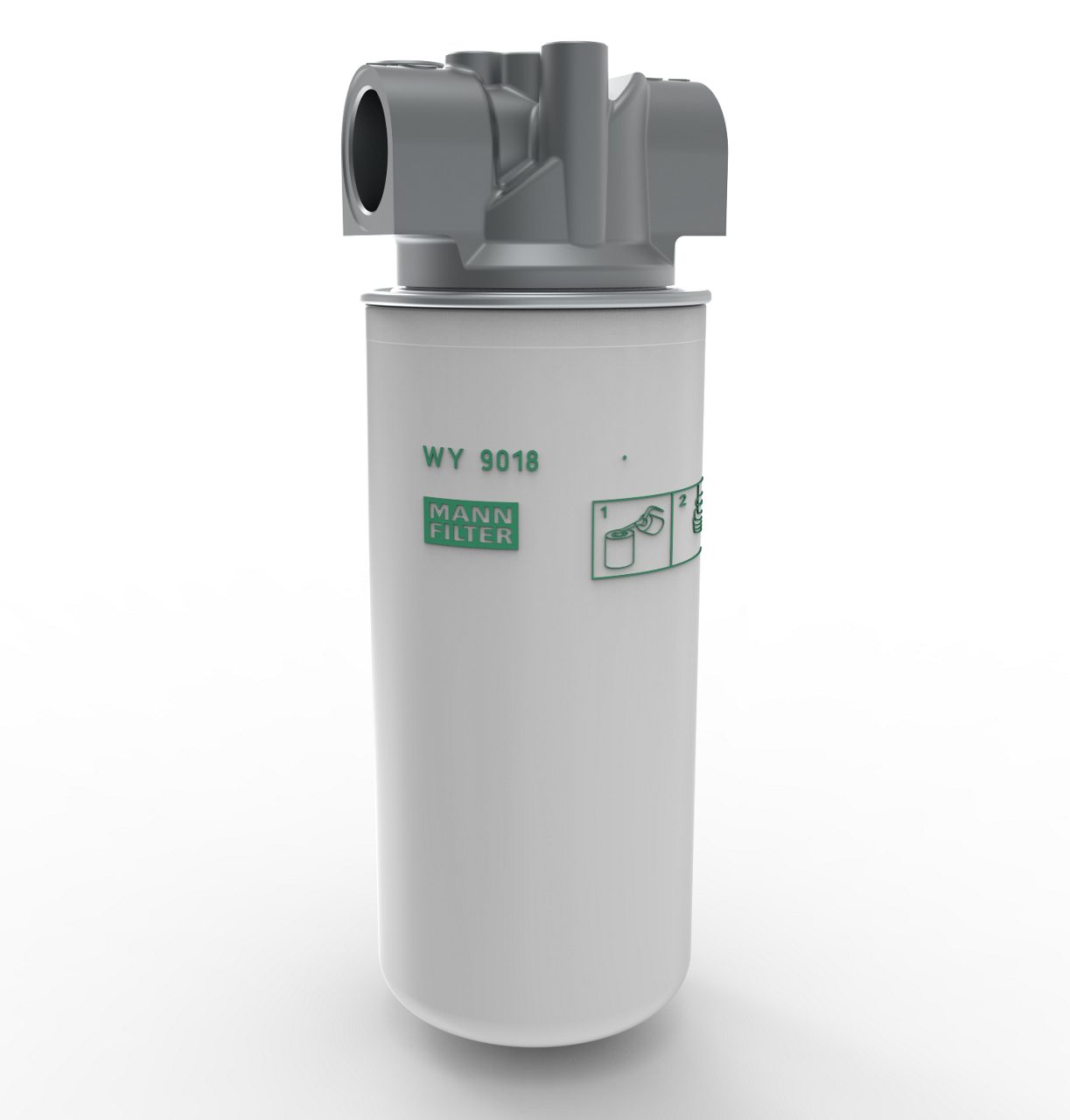

LPS 09 270
1498430S01
About this item
Nominal Flow Rate: 60-110 L/min
Filter fineness with 99% separation efficiency: 10
Operating Pressure: 25 Bar
Spin-on filters by MANN+HUMMEL offer our customers and partners a highly reliable and effective solution to hydraulic oil contamination.
With their filtration function, our spin-on filters provide a superb level of protection against the ingress of dirt particles within the hydraulic circuit.
They are used in the hydraulic oil circuit, for example after pumps, where their filtration properties remove even the finest particles from the oil.
As a result, this helps reduce operating costs whilst simultaneously increasing the service life.
Product highlights and benefits
-
Quick and clean filter replacement
-
Rugged, space-optimized and reliable design
-
Lower risk of dirt ingress compared with using normal housing filters
Data | Value |
---|---|
Nominal flow rate oil (min) (l/min) | 60 |
Nominal flow rate oil (max) (l/min) | 110 |
Operating pressure | 25 Bar |
Filter fineness with 50% separation efficiency (µm) | 4 |
Filter media material OE | GLASS FIBER+POLYESTER |
Filter fineness with 99,5% separation efficiency (µm) | 12 |
Product length | 273.8 mm |
Connect thread | G1” |
Bypass Valve Opening Pressure (bar) | 2.5 Bar |
d1
1-12 UNF mm
d2
62 mm
