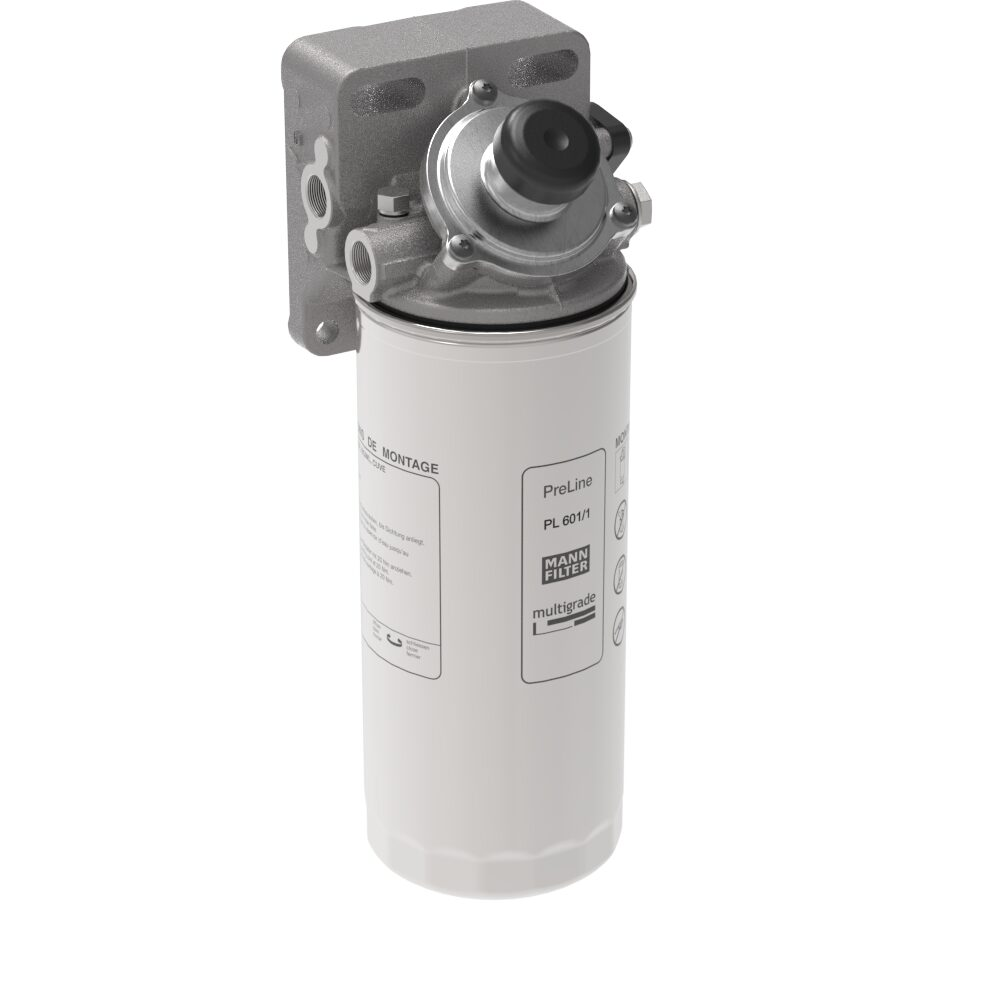

PreLine
PL 601/1
6660762154
About this item
Nominal Flow Rate: 300-600 L/h
Product highlights and benefits
-
For volume flow rates up to 600 l/h
-
Easy handling during servicing
-
Integrated and effective hand pump with 45° position to drain off water and for priming during service
-
Integrated water collector
-
Parallel operation possible with a number of systems
| Data | Value |
|---|---|
| Nominal flow rate fuel (min) (l/h) | 300 |
| Nominal flow rate fuel (max) (l/h) | 600 |
| Filtration efficiency class 4 (%) | ≥ 10% |
| Filtration efficiency class 10 (%) | ≥ 80% |
| Filtration efficiency class 30 (%) | ≥ 99% |
| Water separation efficiency type | one_stage |
| Water separation efficiency value (%) | 95.0000 |
| Separation Efficiency Water-Fuel (min) (%) | 0.0000 |
| Separation Efficiency Water-Fuel (max) (%) | 93.0000 |
| Water level sensor | No |
| Water drain screw | Yes |
| Water collector | No |
| Service switch connection | 0 |
| Connection thread inlet | M16 |
| Connection thread outlet | M16 |
| Product length | 124 mm |
| Product width | 118 mm |
| Product height | 370 mm |
| Gross weight single pack | 10 kg |
| Connect thread | M16 |
