PreLine

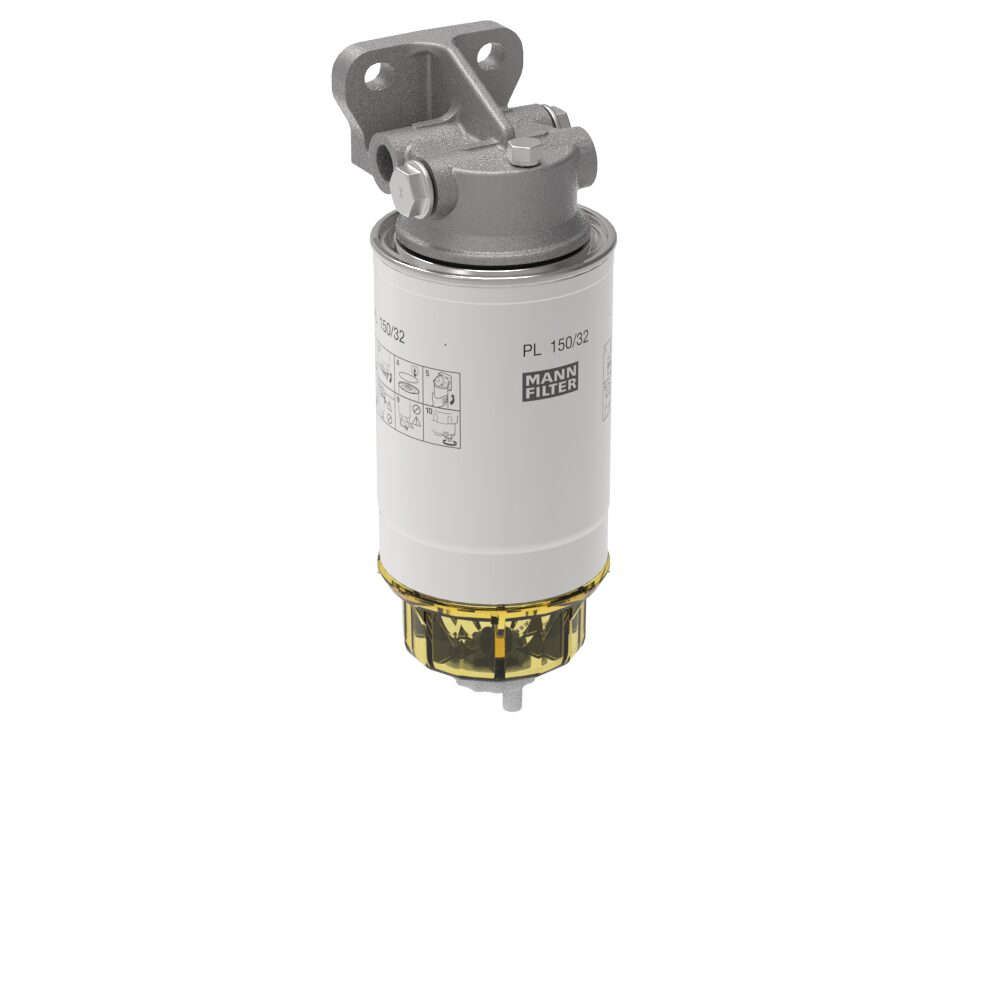

PRELINE 150/32
6650362162
About this item
Nominal Flow Rate: 100-150 L/h
The MANN+HUMMEL PreLine prefilter series reduces the contamination level of fuel
already upstream of the pre-feed pump in the low pressure circuit. In addition, the
Multigrade F filter media separate more than 93 percent of any water in the fuel and
therefore meet the requirements of leading manufacturers of injection systems.
The perfect interaction between the PreLine prefilter and the MANN+HUMMEL main
filter offers maximum protection for the sensitive injection system and contributes
to the economic running of your engine.
Product highlights and benefits
-
For volume flow rates up to 150 l/h
-
Easy handling during servicing
-
Transparent bowl with extra-large water collector
-
Parallel operation possible with a number of systems
| Data | Value |
|---|---|
| Nominal flow rate fuel (min) (l/h) | 100 |
| Nominal flow rate fuel (max) (l/h) | 150 |
| Filtration efficiency class 4 (%) | ≥ 40% |
| Filtration efficiency class 10 (%) | ≥ 99% |
| Filtration efficiency class 30 (%) | ≥ 99% |
| Water separation efficiency type (%) | 9249 |
| Separation Efficiency Water-Fuel (min) (%) | 0.0000 |
| Separation Efficiency Water-Fuel (max) (%) | 93.0000 |
| Water level sensor | 0 |
| Water drain screw | 1 |
| Water collector | 428828 |
| Connection thread inlet | M16 |
| Connection thread outlet | M16 |
| Product length | 105 mm |
| Product width | 80 mm |
| Product height | 269 mm |
| Gross weight single pack (g) | 1.13 kg |
| Connect thread | M16 |
