ProVent 2

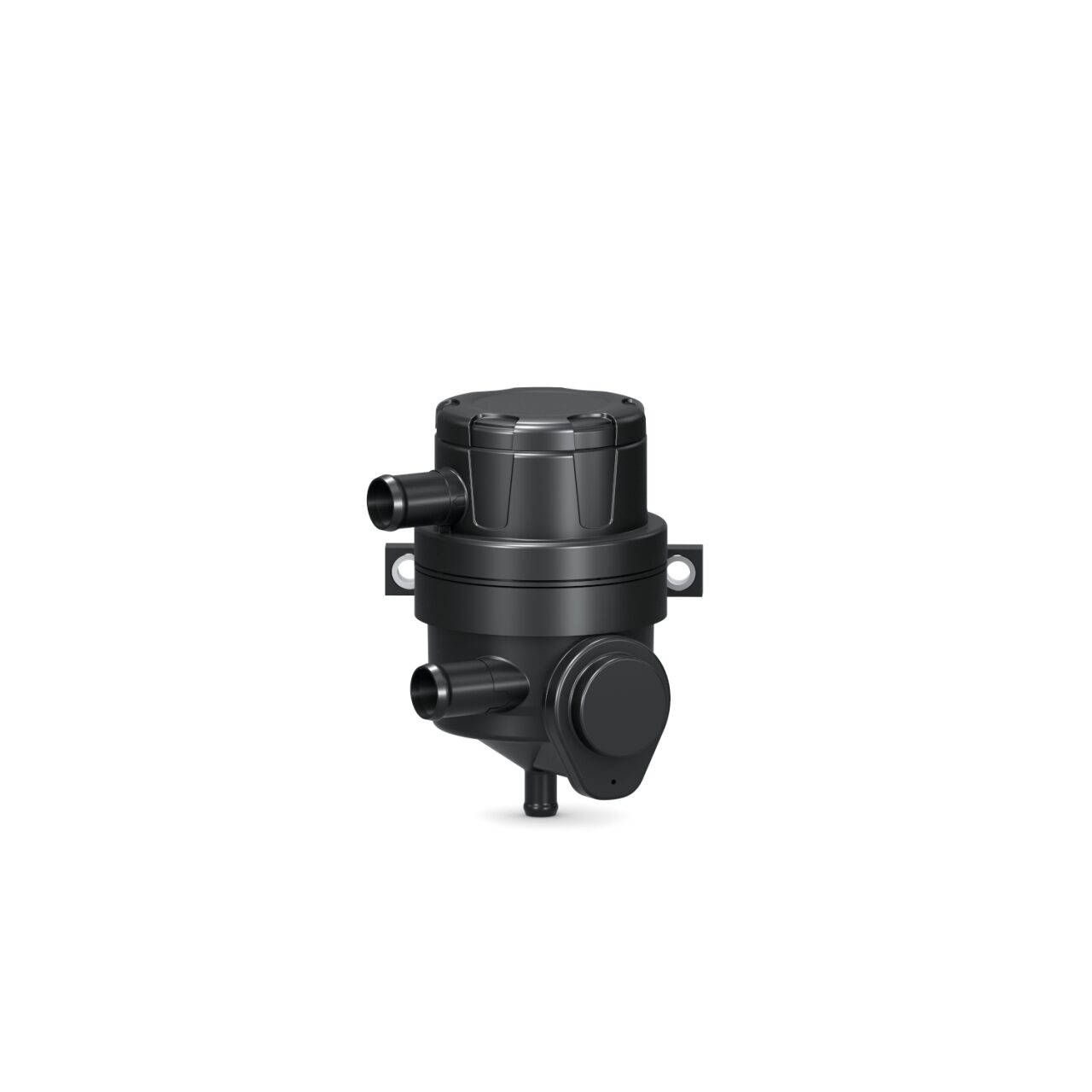

PROVENT² 100
1343908S02
About this item
Nominal Flow Rate: 100 LITER_PER_MINUTE
Separation Efficiency: MICROGRADE D-G-CCV 50
Inlet Position: FRONT LEFT
ProVent² 100
Product highlights and benefits
-
Compact design and simple installation
-
Best in class droplet separation
| Data | Value |
|---|---|
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 120 |
| Differential pressure (bar) | 30.0000 |
| Separation efficiency (%) | MICROGRADE D-G-CCV 50 |
| Bracket position | 0.00 |
| Filter with by-pass valve | Yes |
| Blow-off valve | No |
| Engine type | Diesel |
| Rotation of pressure regulation | 0.0000 |
| Mounting type standard | FRONT |
| Inlet position | FRONT LEFT |
| Rotation of housing against bracket | 0.0000 |
| Bypass Valve Opening Pressure (bar) | 0.04 Bar |
| Housing material | PA6 GF30 |

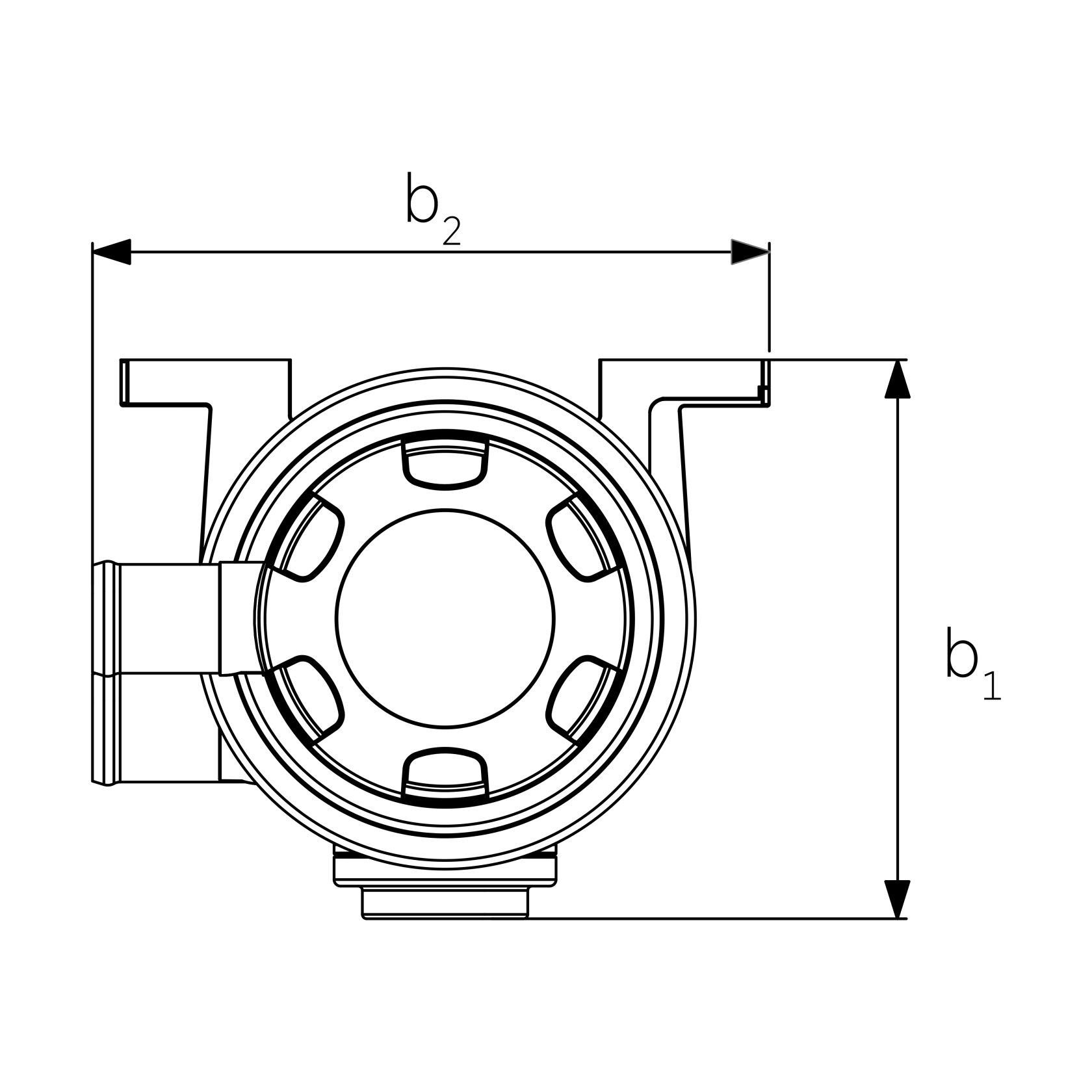

b1
94.2 mm
b2
129.3 mm

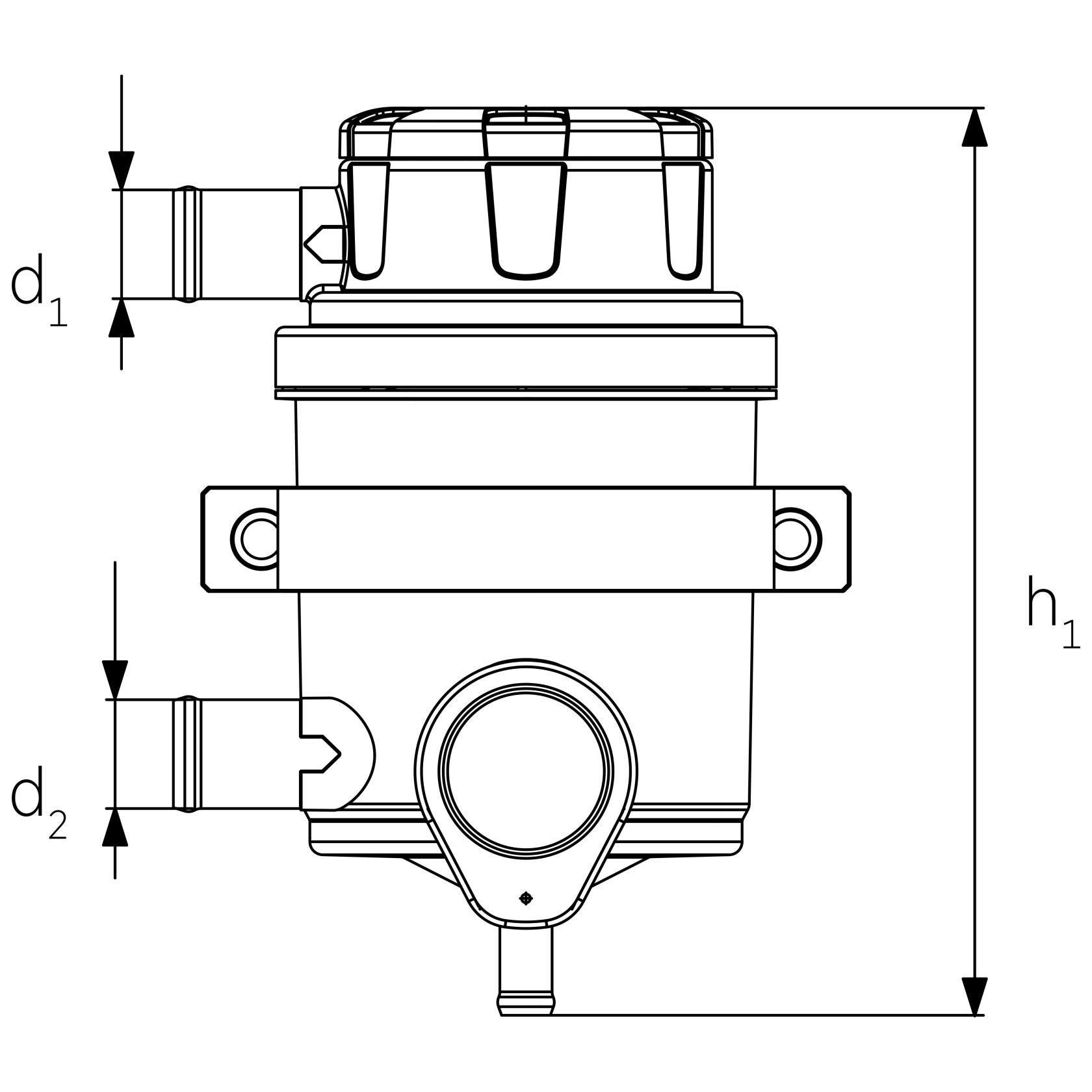

d1
20 mm
d2
20 mm
h1
156 mm
