ProVent 2

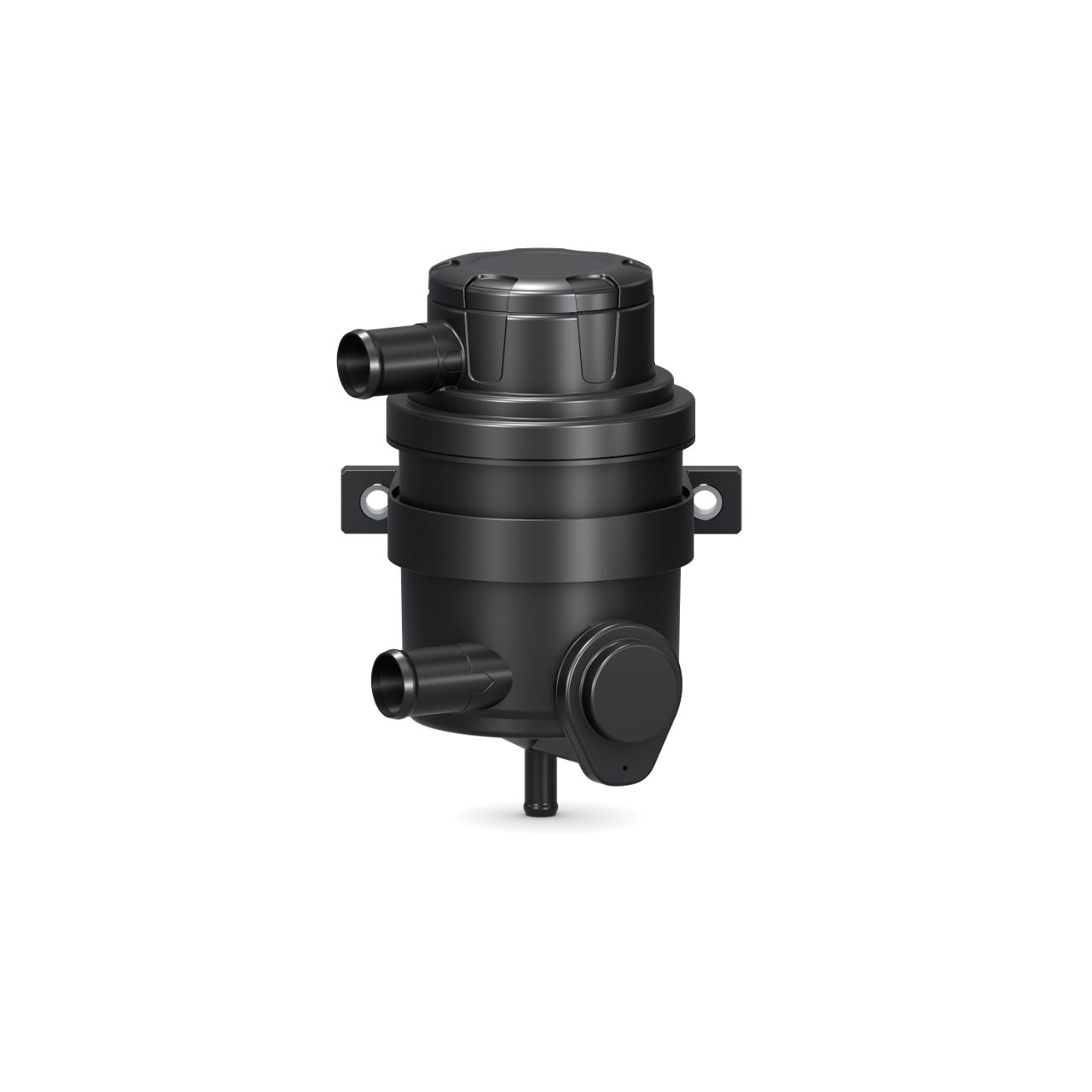

PROVENT² 200
1239537S02
About this item
Nominal Flow Rate: 200 LITER_PER_MINUTE
Separation Efficiency: >90%
Inlet Position: FRONT LEFT
The new ProVent² generation from MANN+HUMMEL offers smart solutions for blowby gas oil separation for all diesel engines with an engine capacity between 2.9 and 80 liters.
Product highlights and benefits
-
Compact design and simple installation
-
Best in class droplet separation
-
Long service interval
-
Excellent price-performance ratio
-
Easy service concept
-
High interface flexibility
-
Modular combination possible
-
Optimal protection of engine components
| Data | Value |
|---|---|
| Nominal flow rate CCV (min) (l/min) | 160 |
| Nominal flow rate CCV (max) (l/min) | 220 |
| Operating temperature min. (°C) | -40 |
| Operating temperature max. (°C) | 120 |
| Separation efficiency (%) | >90% |
| Bypass valve | 1 |
| Blow off valve | 0 |
| Mounting type standard | FRONT |
| Inlet position | FRONT LEFT |
| Engine power | 75-200 KW |
b1
128 mm
b2
155.5 mm
d1
25 mm
d2
25 mm
h1
207.7 mm
